Design Details
After the calculation, an overview of design checks whose design criterion is not fulfilled and other errors that arose during the design checks opens in the table. Double-click the relevant table row to open the design details. Here you can see the formulas of the design in the dialog box section on the right and display the calculation with intermediate steps using
.
only displays the design criterion.
Member Set Design Ratio
The table shows the design results in the "Design Ratio on Members" category, sorted by various criteria. Among other things, the "Design Ratios by Member Set" shows you which design results relating to the downstand beam have been calculated.
Displaying Design Checks in Graphic

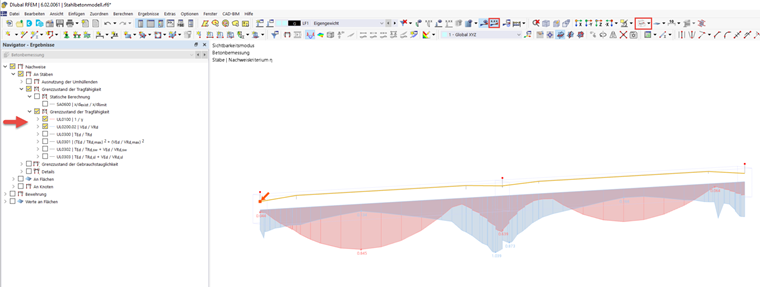

It is also possible to graphically display the design ratio of the structure using the "Results navigator". Consider, for example, only the downstand beam with the design results for the ultimate limit state. For instance, "UL0100.00" stands for the cross-section resistance design according to EN 1992‑1‑1, 6.1, and "UL0200.02" for the shear force resistance design according to EN 1992‑1‑1, 6.2.
Tip
In RFEM, you can display the graphics as a transparent, wireframe, or solid model. Use the
button to switch between the options.

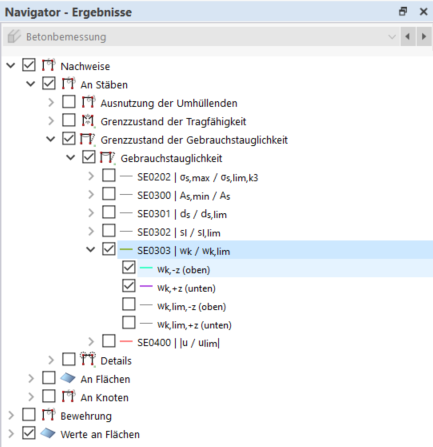

Within the individual design checks, you can display additional specific details, such as extreme values or, for example, the actual lower and upper crack widths.
