CLT Residential Building in Girona, Spain

Structures Analysed with Dlubal Software

  • Customer project

Customer Project

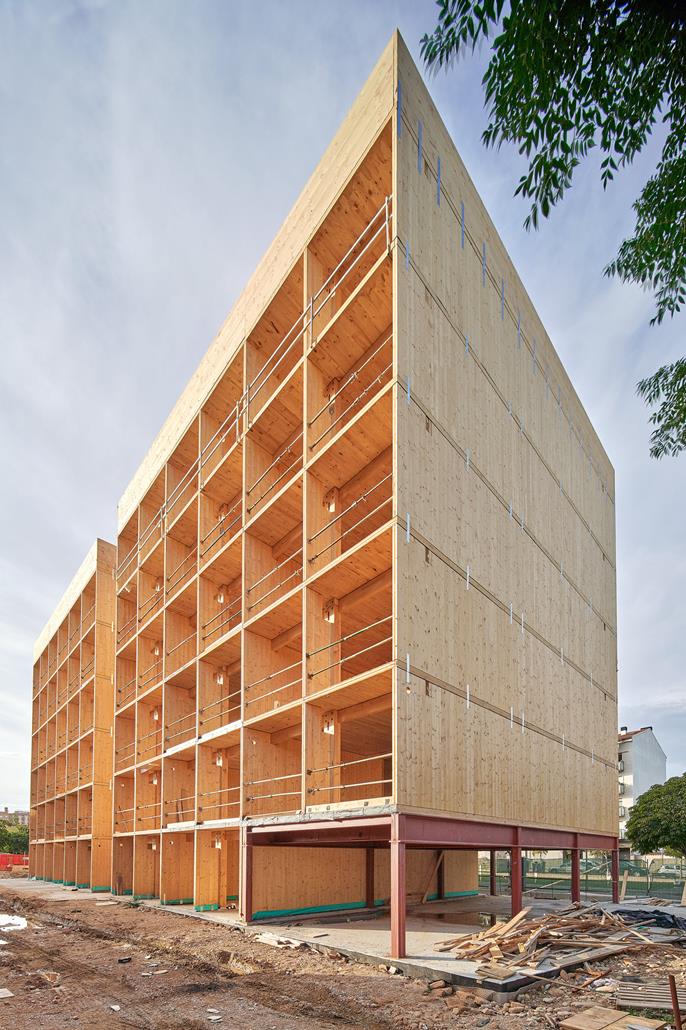

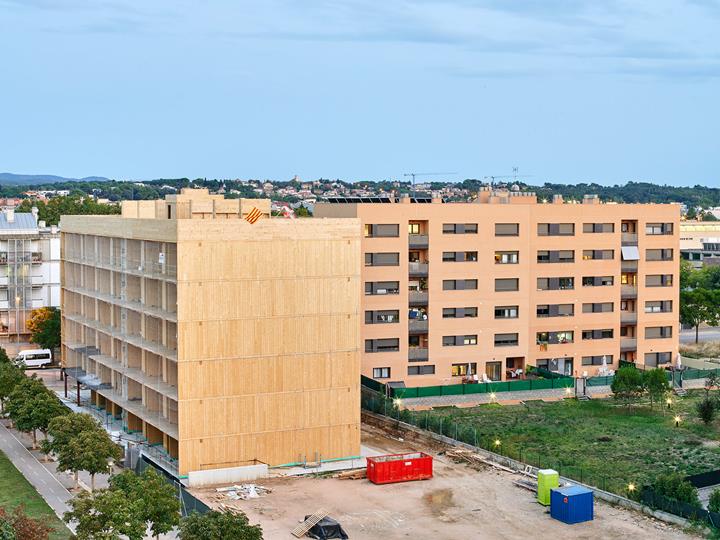

EGOIN SA was awarded a timber design project for 35 new CLT apartments in Girona, Spain. Cross-laminated timber (CLT) was selected as the building material due to its sustainability, ability to filter CO2, and the architectural design freedom.

Investor Procapsa SL
Architect Bosch.Capdeferro
www.boschcapdeferro.com/ca
Structural Design

Blazquez Guanter SLP

Estudi M103 SLP

EGOIN
egoin.com
Timber Structure EGOIN
egoin.com

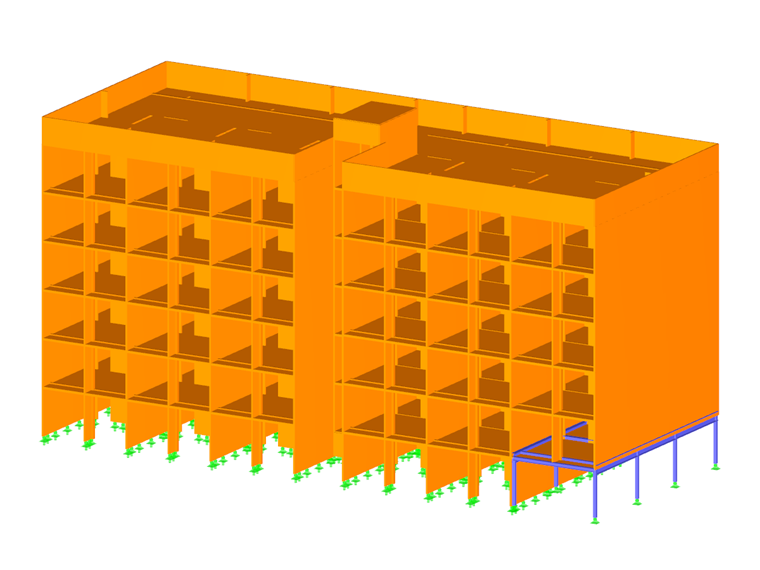

Model

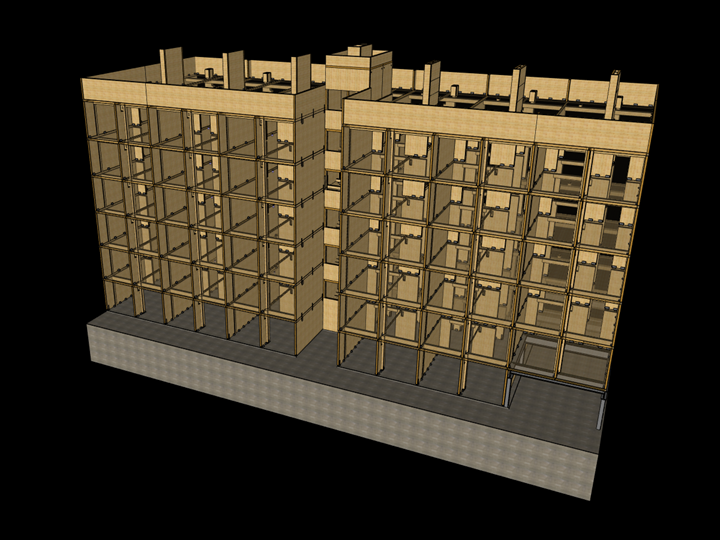

Because the building is located in a seismic area, timber materials can reduce the horizontal load impact due to the characteristics (lightness and ductility). The structure is a 6-story CLT wall system which better absorbs the vertical and horizontal loads.

Additionally, the complete prefabrication of the CLT panels reduced the assembly time to only 6 weeks. Thermal bridging was also reduced which increased the moisture control of the panels to ensure an optimal indoor climate.

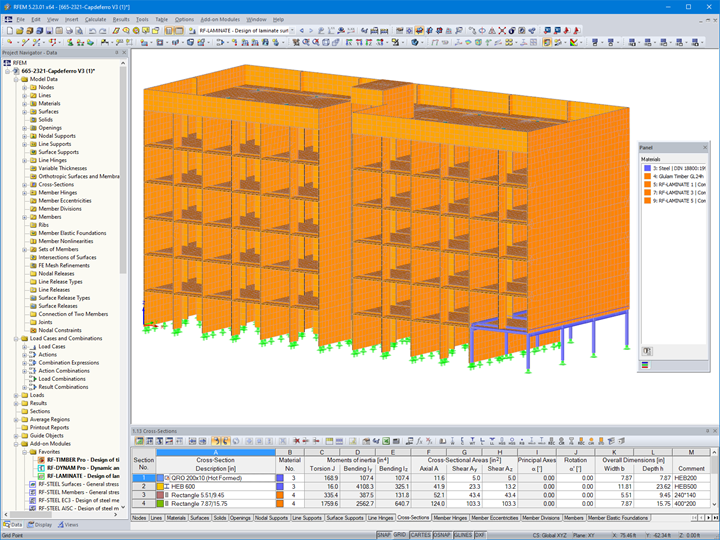

The Dlubal customers EGOIN and Estudi M103 SLP cooperated together for the design process under the responsibility of Blazquez Guanter SLP. The program RFEM including the add-on module RF-LAMINATE were used to consider the orthotropic stiffness and strength for the structural analysis and design. CLT has the capacity to withstand bidirectional loads, which help to increase the stiffness compared to a uniaxial structural system.

In RFEM, line hinges based on the actual connection stiffness and nonlinear behavior could easily be considered. The line force diagrams were also produced in RFEM for further consideration in the RF-LIMITS add-on module when designing the connections. The RF-DYNAM Pro add-on module was utilized to calculate the natural vibrations and to perform a modal response spectrum analysis according to the Spanish standard NCSE-02.

Project Location

Carrer Tomàs Carreras Artau
Girona
Spain
