Lunar Dome, USA
The year 2019 marks the 50th anniversary of the first moon landing. For this occasion, a road show was planned in several cities throughout the United States of America. For this road show, a large temporary theater tent housing 1,600 seats was designed.
Matthew Churchill Production Ltd. and Nick Grace Management Ltd.
|Architectural Design||Teresa Hoskyns and Matthew Churchill|
|Membrane Structural Engineering and Workshop Drawings||
formTL ingenieure für tragwerk und leichtbau GmbHRadolfzell, Germany
|Membrane Contractor||Canobbio Textile Engineering|
Main Structure Model Parameters
The Dlubal customer formTL provided the structural engineering for this project. The finite element software RFEM was utilized for the analysis and design.

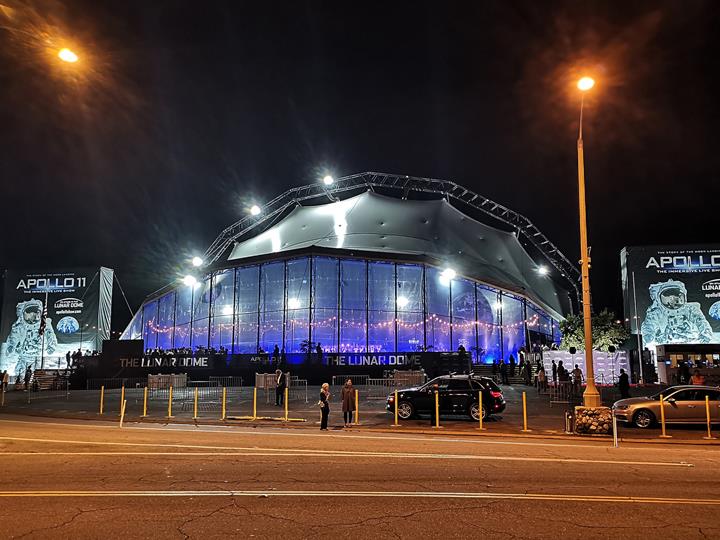

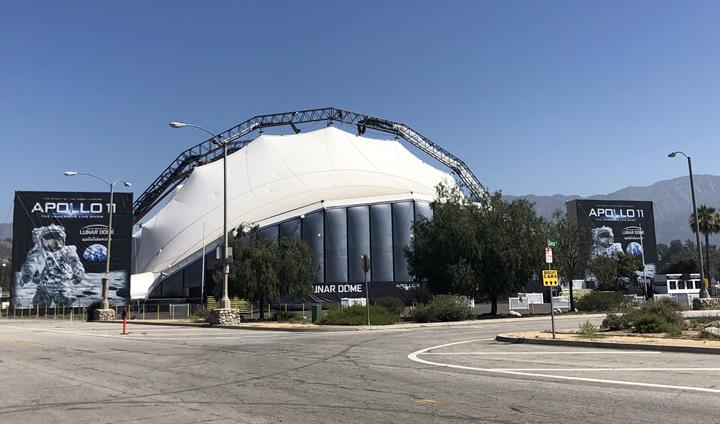

The tent was created as a temporary structure, optimized for quick assembly and easy transport A main membrane, supported by four truss arches, an elastically supported projection dome and a large ETFE façade, form the interior open space for this structure. The flexible foundation includes adaptable footing elements, anchored with long dowels. Pasadena, California was the first stop for the traveling theater for the "Apollo 11 - the Immersive Live Show" in the summer of 2019.

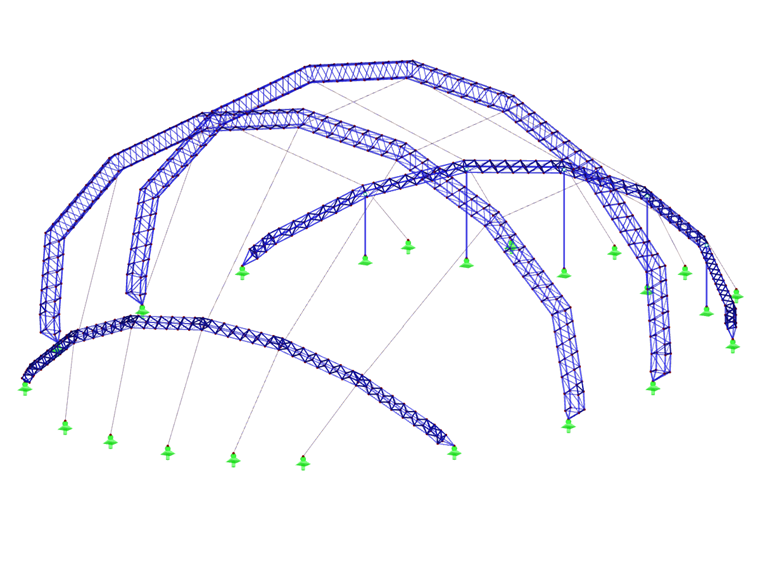

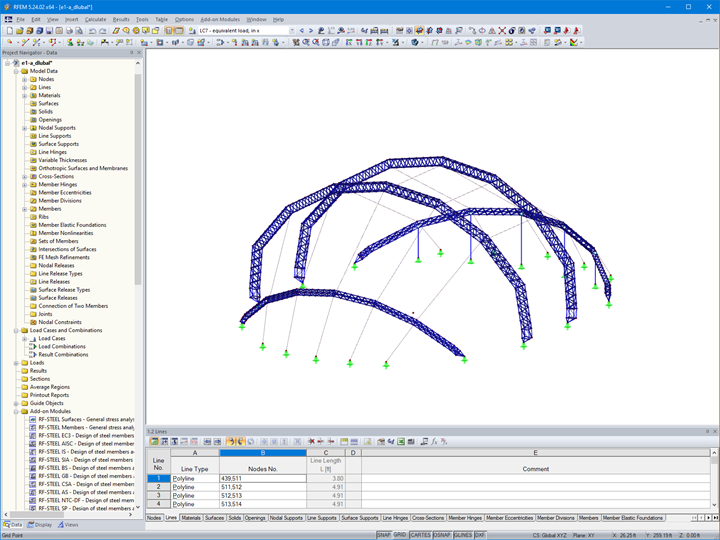

The Apollo Theater’s main structure is formed with 4 arch trusses. Hanging from these elements is an approximate 52743 ft² membrane made of PVC-coated polyester fabric type III. The two slightly inclined center trusses carry the primary load of the 240 ft long tent structure. These main trusses have a span of 183 ft and a height of 89 ft. The 36 ft high smaller lateral trusses in the foyer and backstage area are set at a higher inclination.

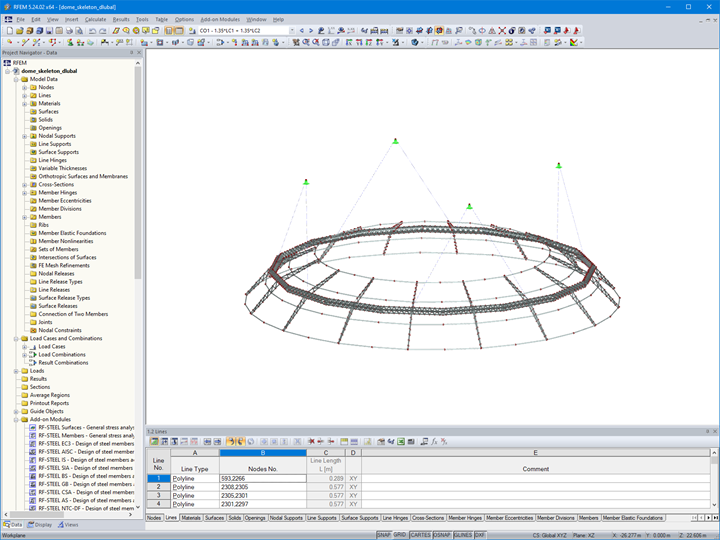

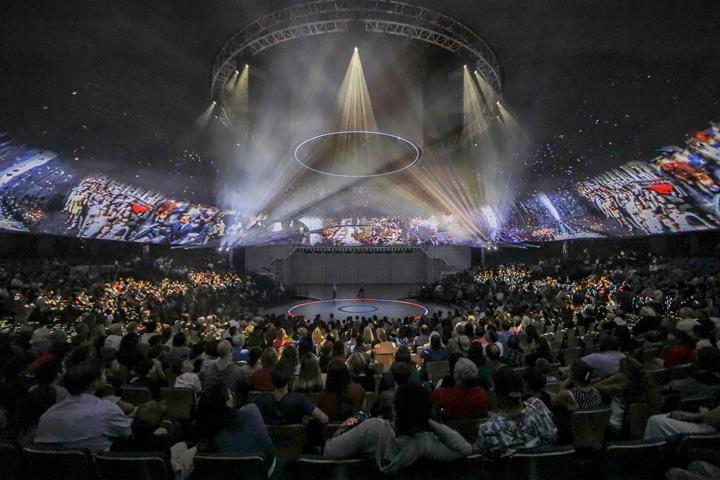

The interior includes a projection dome above a surrounding timber wall. This dome has a diameter of 151 ft and a height of 49 ft. It is suspended from the two main arches with elastic cables. This suspension stiffness is extremely low to allow the prestressing force to change only slightly if the outer shell is deformed (e.g. due to strong wind). The projection dome membrane consists of lightweight PVC-coated polyester fabric with micro-perforations, which absorbs about 65% of the sound.
Located under the foyer arch are 32 ft long facade supports with an ETFE cushion covering. The columns resist pressure loads only from the foyer arch. In the case of uplift loads, elongated holes provide decoupling.
The foundation for the arches includes large steel plates with 2.36 x 78.74 in piles. The plates can be used to compensate for height differences up to 19.69 in. The piles were designed according to EN 13782 and verified in a pullout test.
Within one short year, the planning, production and assembly of an unmatched temporary tent structure was completed.
