Reconstruction of Old Haras Ice Rink in Angers (49), France

This project aims to rehabilitate, extend, and enhance the former Haras ice rink, located near the Château d'Angers, a castle in the city of Angers, belonging to the ABF sector (Architectes des Bâtiments de France). The aim is to create a modern sports facility that meets the needs of the local community while preserving the existing architectural heritage.

Project Presentation

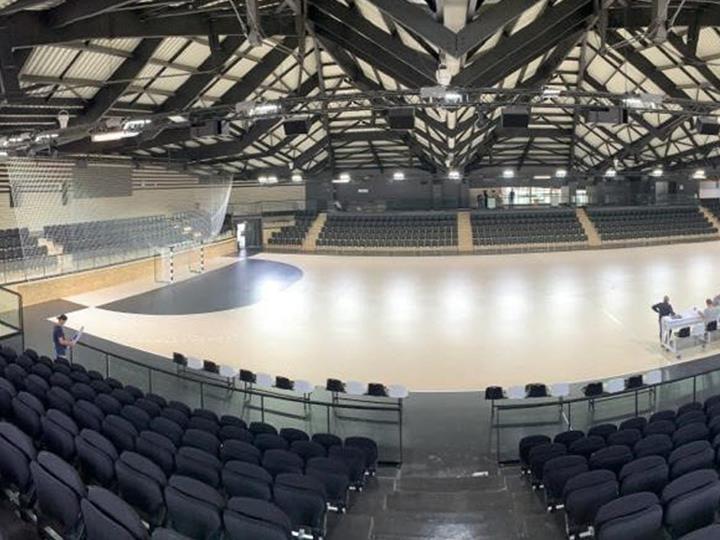

The project includes several key elements. First, a sports hall dedicated to the practice of handball was built, extending over an area of 1,200 m2 (about 12,915 ft2). It was designed to meet the specific sporting standards of the first league of "Handball - Ligue 1" by providing adequate space for the players, specialized equipment, and bleachers for the spectators.

Then, a sports hall extension of 650 m2 (6,996 ft2) was also created for school activities. The multifunctional hall allows students to benefit from a space suitable for the practice of a variety of sports activities as part of their education.

In addition to the sports areas, the block of buildings includes the premises necessary for its optimal functioning. Changing rooms, offices, reception, and storage areas are provided to meet the logistical and administrative needs of the sports complex.

The French Dlubal customer LCA Construction Bois was in charge of the reinforcement for the existing 50 m x 100 m (164 ft x 328 ft) frame by placing a steel installation under tension, in addition to constructing the structures for the stand and the sports ground, as well as the timber framework extension.

Modeling and Design

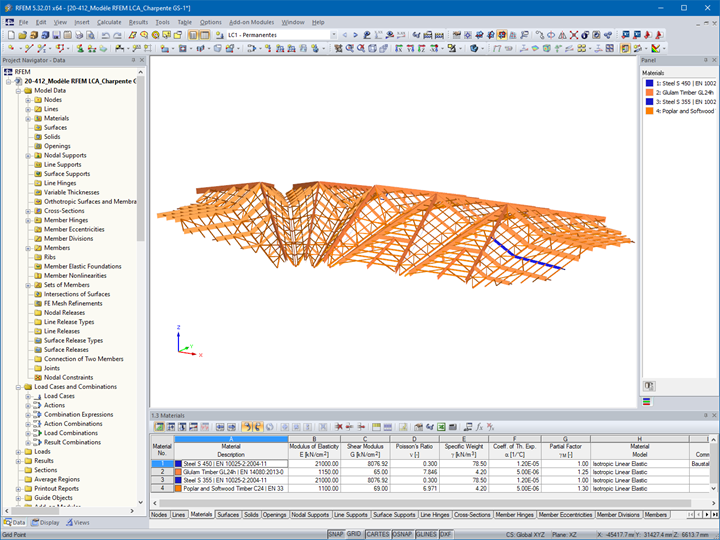

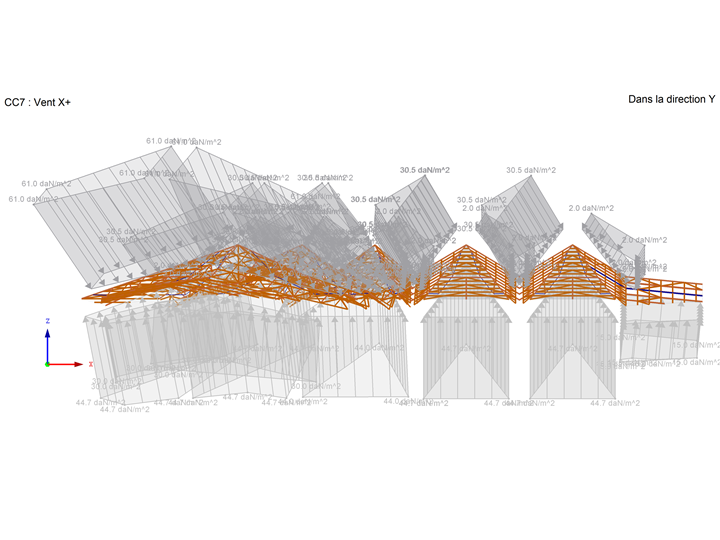

The first step consisted of modeling the roof structure in RFEM, taking into account its comprehensive geometry and all important dimensions. Then, it was necessary to carry out an analysis of the loads to be applied on the structure. Next, the permanent loads (weight of the framework itself, attached elements, etc.) and the variable loads (snow loads, wind loads, etc.) were defined on the model.

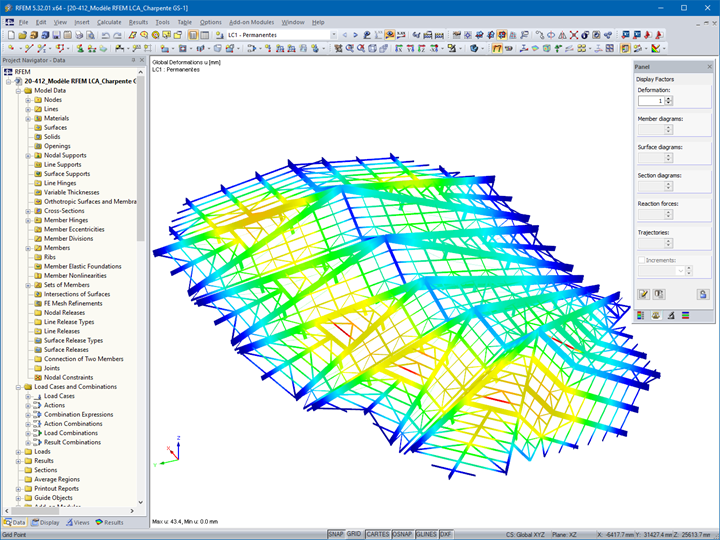

RFEM was used to determine the stresses, deformations, and resulting internal forces and moments in each member of the framework. The RF-STEEL EC3 add-on module was used for the stability design checks.

Using the results obtained from that analysis software, the engineers were able to evaluate the framework's structural behavior, identify regions of high stresses, and adjust the design.

Location
6 Allée du Haras,
49100,
Angers, France
Project Management CRR Architecture (authorized architect)
Investor City of Angers
Contract Section - Planning and Realization LCA Construction Bois


Project Specifications

Model Data

Number of Nodes 1316
Number of Lines 2545
Number of Members 2545
Number of Load Cases 8
Number of Load Combinations 23
Number of Result Combinations 1
Total Weight 73.711 tons
Dimensions (Metric) 73.135 x 46.498 x 7.684 m
Dimensions (Imperial) 239.94 x 152.55 x 25.21 feet
Program Version 5.29.01
