Markus Baumgärtel General RFEM

For a clear arrangement, I would like to display surface loads hatched in the top view (for example, a ceiling level). Is that possible?

Answer

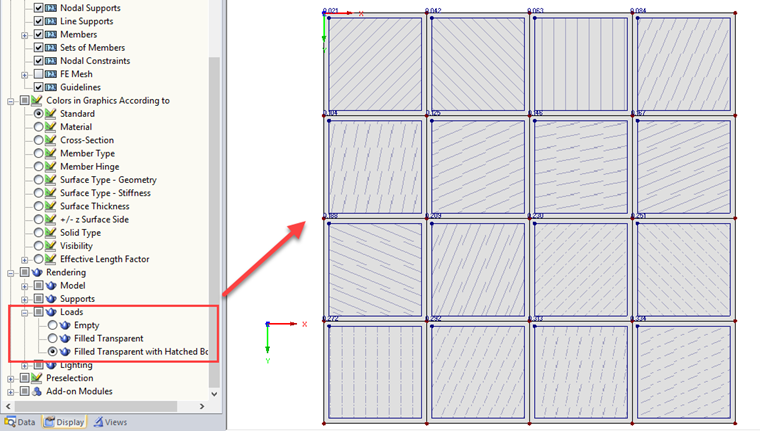

The display of surface loads with hatching can be set in the Display navigator (see the figure).

RFEM creates a different hatching depending on the load size.

Keywords

hatching display loads Z-view top view load display
