Timber-Concrete Composite Sections: Stress Analysis Using RF-/TIMBER Pro

How can I flatten the shape found using RF‑FORM‑FINDING?

Answer:

This requires the RF‑CUTTING‑PATTERN add-on module.

This calculates and organizes cutting patterns for membrane structures. Boundary conditions of the cutting patterns on curved geometry are determined by boundary lines and independent planar cutting lines or geodesic cutting lines. For detailed information, see the links below, and the videos.

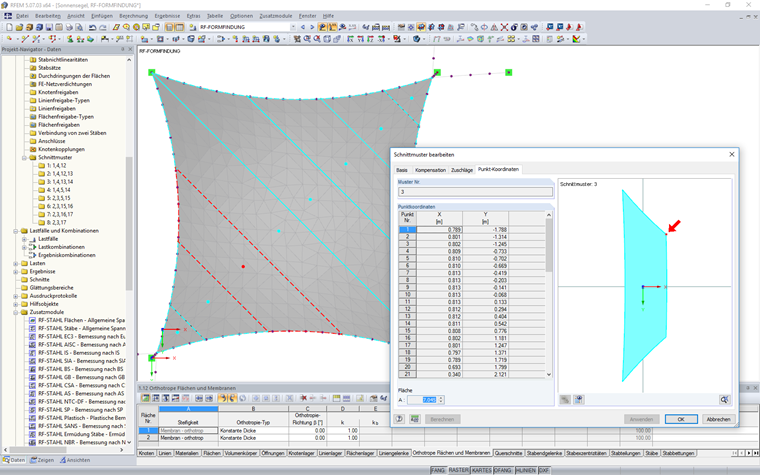

Displaying Cutting Patterns in RFEM Model
Displaying Cutting Patterns in RFEM Model
Author

Mr. Rehm is responsible for developing products for timber structures, and he provides technical support for customers.
