When generating a wind load, are the vertical wall surfaces determined by area loads in an open building?

Answer

No, they are not included by default. The wind load generation executed via area loads always records the wind load orthogonally to the spanned surface.

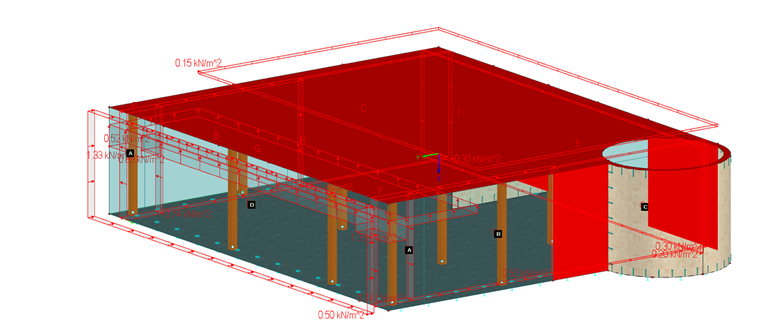

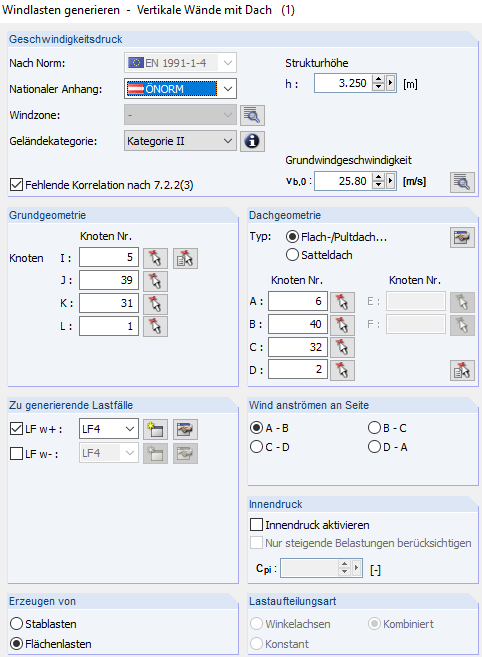

For the attached example, however, Figure 2 shows that the loading in the wind load surface amounting 0.5kN/m² is relatively easy to convert.

However, it is also possible to generate the wind load for any given building geometry with the new stand-alone program RWIND Simulation. This provides you with the possibilities for wind simulations
and for generating wind loads. The possibilities can be optimally utilized in conjunction with the FEM structural analysis software RFEM or the structural frame analysis software RSTAB.

Input
By directly importing models from RFEM or RSTAB, you can define relevant parameters of the wind directions to be analyzed with height-dependent wind profiles on the basis of a wind standard. This results in the corresponding load cases with globally defined parameters.

The RWIND Simulation can also be run manually if there is no RFEM or RSTAB. For this reason, the data can be imported from STL vector graphics.

The import of terrain and buildings of the environment into the simulation is also possible from STL files.

By exchanging data between RFEM or RSTAB and RWIND Simulation , you can easily use the wind analysis results as load cases in your usual RFEM or RSTAB work environment.

Services of RWIND Simulation
3D incompressible wind flow analysis with OpenFoam solvers
Direct model import of RFEM or RSTAB or STL files
Simple model modification via drag-and-drop and graphical adjustment aids
Automatic corrections of the model topology with shrink wrap networks
Option to add objects from the environment (buildings, terrain, ...)
Height-dependent velocity profiles according to the standard
K-epsilon and K-omega turbulence models
Automatic mesh generating adjusted to the selected depth of detail
Parallel calculation with optimal utilization of the capacity of multicore computers
Results in just minutes for low-resolution simulations (up to 1 million cells)
Results within a few hours for simulations with medium/high resolution (1-10 million cells)
Graphically display results on the Clipper/Slicer planes (scalar and vector fields)
Graphical display of streamlines as well as streamline animation
