Specific Requirements of Membrane Structures

Technical Article on the Topic Structural Analysis Using Dlubal Software

  • Knowledge Base

Technical Article

This paper is focused on the specific aspects of designing membrane structures that have specific requirements, such as form-finding and cutting pattern generation. These topics are the focus of many research works, and many methods have been proposed to achieve the desired results. However, in this paper these issues will be discussed more from a practical than a theoretical point of view. The paper will be followed by examples that will complement the topic under discussion and show the special attention required during the design process.

Membrane structures are one of the current trends in civil engineering. They are beautiful, light, statically effective, and challenging. Due to their zero bending stiffness, it is impossible to separate the shape of a membrane structure from the prestress. The shapes cannot be selected freely; they have to be found. These multi-dimensional structures are manufactured from fabric or foil rolls. The cutting patterns are formed from planar material strips, and you reach the intended structure by connecting and stretching them in the final position. The determination of cutting patterns is a sensitive step in the planning process, and its quality strongly influences the quality of the entire structure. This article deals in detail with the two main processes - the shape determination of membrane structures, and the determination of cutting patterns. Special attention is paid to practical and useful insights for planning.

Form-Finding of Membrane Structures

In this chapter, the physical principles of shape determination for membrane structures are described first. Afterward, the feasibility of prestress required by the civil engineer is discussed. The text is then supplemented by practical examples to illustrate the considerations and theories.

The planning of membrane structures differs significantly from the usual practice. Since the materials used practically have only a tension resistance, the shape cannot be selected freely. It is impossible to separate the shape from the prestress. In this case, the aesthetic and physical aspects of buildings are basically connected.

The shape of a membrane structure is determined by the boundary conditions and the spatial equilibrium system. The form-finding process can be described by Equation (1) below. The equilibrium shape is found if the virtual work does not change (δW = 0); that is, if the sum of the virtual work performing the required prestress σ and the virtual work performing the external load p (positive pressure, self-weight) is equal to zero.

Formula 1

- δW = δWint - δWext = t · Ωσ:δêdΩ - Ωp·δudΩ = 0 (1)

In the equation above, t represents the thickness of the material used, δê is the change in material deformation, and δu is the deformation over the surface of the structure Ω.

In addition to some theoretical problems to be solved, there is a fundamental problem. The main problem is that a preset prestress is assumed. However, it is generally excluded. The membrane structures have a double curvature (that is, the Gaussian curvature is not equal to zero), which is why they exclude a homogeneous orthotropic prestress. Theoretically, a state where there is a specific prestress value in the warp direction and a precise prestress value in the weft direction at each point of the membrane is almost impossible. The only exception is the isotropic prestress, which can be achieved if the shape is physically real under the given boundary conditions.

Thus, the prestress itself must be found. The aim of the process (form-finding) is not only to find an unknown shape for a given prestress, but also to search for an unknown shape for a generally unknown prestress. This prestress is approximated by a value specified by the civil engineer for the warp and weft directions. A number of methods have been developed for form-finding. If you use different programs for problem solving, you can obtain more or less different results for the same input data. Then, of course, the question arises: which solution is the optimal one? Some examples of different structures and required prestresses are shown in the following text.

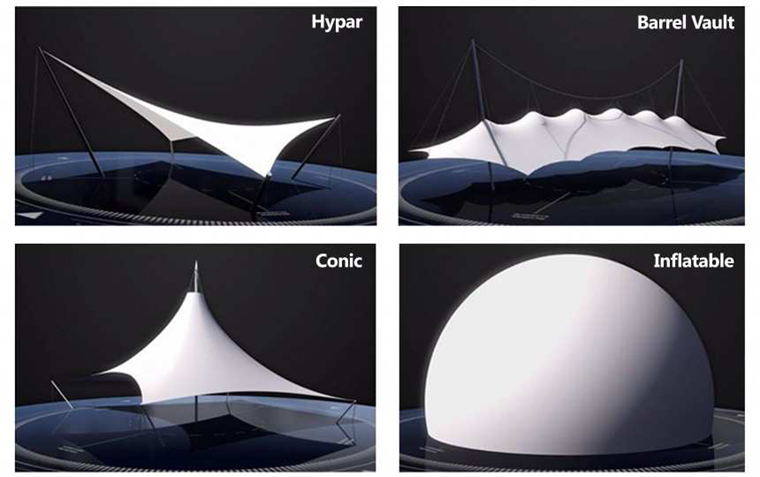

Image 01 - Basic Shapes of Membrane Structures [1]

For the first example, we will use a hyperbolic paraboloid (Figure 2 and Figure 3). Both isotropic and orhotropic prestress are applied. For the isotropic prestress, two different results are seen from the form-finding process (Figure 4 and Figure 5), which are also commented on briefly. For the isotropic prestress, nwarp = nweft = 2.00 kN/m is set. A relative cable sag s = 8.00% is set for the edge cables. The results are illustrated as vectors of the principal internal forces using a color scale.

Image 02 - Membrane Structure in Form of Hyperbolic Paraboloid

Image 03 - FE Mesh and Alignment of Warp (Red) and Weft (Green) Threads

Image 04 - Vectors of Principal Internal Forces n1, n2

If two different results are obtained for the same input data, the question naturally arises: which solution is the right one? In theory, both solutions are correct because both have reached an equilibrium state and both are also feasible. However, the solution shown on the left shows a uniform prestress that is not concentrated on corner areas. Such local effects are considered as undesirable because they reduce the load-bearing capacity of the structure and result in uneven rheological effects. Therefore, the solution shown on the left is advantageous. Generally, it is considered as favorable to find a shape with a uniformly distributed and not locally concentrated prestress. The membrane structure is thus well prestressed, and its load-bearing capacity is not reduced in some areas by excessive prestress.

As already mentioned, an isotropic prestress is the only homogeneous prestress that can be achieved precisely. The achievable accuracy is practically limited only by the size of the FE mesh. In the case of a roughly set mesh, an equilibrium state cannot be approximated exactly, and thus the values may deviate from the entered prestresses. However, such deviations should be within a small range, and a coarser mesh does not necessarily lead to a clearly more concentrated prestress.

The same boundary conditions are applied for the other calculation. The structure is given an orthotropic prestress of nwarp = 4.00 kN/m and nweft = 2.00 kN/m. A relative cable sag s = 8.00% is set for the edge cables. As mentioned, an exact homogeneous orthotropic prestress cannot be achieved due to the double curvature of the membrane structures. However, it is possible to achieve a shape with a prestress that comes very close to the specified values (Figure 5). The result is a uniformly distributed prestress approximating the input values. In this case, there is no reason for significant stress concentrations.

Image 05 - Vectors of Principal Internal Forces n1, n2

For most shapes, including hyperbolic paraboloids and arc-supported or pneumatic membranes (Figure 1), the resulting prestress can be distributed evenly without the need for local prestress concentrations. For high conical shapes, it is impossible to avoid areas with concentrated prestress. Any concentrations occur at the apex of the cone, but they are neither necessary nor desired in the bottom corners (Figure 6).

Image 06 - Vectors of Principal Internal Forces n1, n2 and Axial Forces N

Whether or not a concentrated prestress is necessary can be deduced intuitively from the following formula (2). The equation represents an equilibrium of forces at a point where n1 and n2 are the principal internal forces, 1/R1 and 1/R2 are the curvatures in the direction of these principal internal forces, and p is any external load.

Formula 2

n1R1  n2R2 - p = 0 (2)

In the case of an anticlastic structure of which the self-weight barely influences the found shape, the equilibrium of forces in a node is given by the prestress and the curvatures in the opposite direction. The issue now is whether the curvature of the structure has to change so rapidly. If so, the locally concentrated prestress is inherent in the structure; otherwise, the prestress concentration is not necessary for the structure at all. This method can be applied to our examples. Shapes without conical areas (Figure 4, Figure 5, Figure 8, and Figure 10, except for the conical areas) do not require rapid changes in the curvature, which is why they can be prestressed uniformly. Conical areas show rapid changes of the radial and tangential curvatures; therefore, a quick change of the prestress cannot be avoided (Figure 6 and the conical areas in Figure 10).

Image 07 - Arch-Supported Membrane

Image 08 - Vectors of Principal Internal Forces n

Image 09 - Membrane Structure

Image 10 - Vectors of Principal Internal Forces n1, n2

Two more complex structures (Figure 7 and Figure 9) and their prestresses (Figure 8 and Figure 10) are shown at the end of this chapter. In order to achieve the most accurate results possible in the form-finding process as well as in the structural analysis, the structure should be modeled as a whole and not separated into parts. Thus, the interaction of all parts of the structure and the force redistribution due to the deformations are considered.

Cutting Membrane Structures

The process of determining cutting patterns is explained in the following text. It describes the individual steps of the process, then presents a practical example to show how the material properties can affect the shapes of the cutting patterns.

As mentioned, the double curvature is one of the typical features of membrane structures, which is why its shape cannot be developed in one plane. However, the membranes are made of rolls of planar fabrics. For this, a cutting (that is, individual planar cutting patterns) must be generated that approximates their corresponding patterns in space. The process of creating a cutting pattern consists of two steps. First, the membrane structure is divided into individual spatial cutting patterns by means of cutting lines; then, the best possible approximation of planar cutting patterns to the spatial one is found.

Theoretically, a membrane structure can be divided into partial strips by any cutting line. For practical reasons, however, geodetic cutting lines are usually used (Figure 11, left), which are preferred because of the straight axis of the cutting patterns after flattening (Figure 12, left). Plane sections (Figure 11, right) that are not straight after flattening (Figure 12, right) are used less often, and this results in a higher material requirement.

Image 11 - Hyperbolic Paraboloid Divided by Geodesic Section Lines (Left) and Plane Sections (Right)

Image 12 - Cutting Patterns Created by Means of Geodetic Cutting Lines (Left) and Plane Sections (Right)

The second step of creating a cutting pattern is much more complex: finding the best possible approximation of a planar cutting pattern to the corresponding spatial cutting pattern. For this process, a number of methods were designed; the historically oldest used a simplified geometric method and the later methods, advanced mathematical mapping. The current methods are based on continuum mechanics, with a nonlinear analysis using the finite element method (FEM) for the determination of the cutting pattern.

The latter method is considered to be the most general solution for an approximation problem and allows you to consider the material properties of the fabric or film used. If you do not want to consider the orthotropic properties of the textile material or the transverse contraction, you can apply an isotropic material with  Poisson's ratio v = 0. However, if the material properties are to be included in the process of flattening the cutting pattern, the optimal shape of the cutting pattern can be achieved.

When testing the textile materials used for membrane structures, you usually determine the stiffnesses in the warp and weft directions and Poisson's ratio. The shear stiffness is usually neglected. The following example shows how the shear stiffness affects the shape of the resulting cutting pattern. For the example, we have selected one of the middle cutting patterns of the hyperbolic paraboloid (Figure 11). Two different materials are used for the cutting pattern.

The following values are provided for the first surface-treated fabric:

Ewarp = 1600 kN/m
Eweft = 1200 kN/m
vWarp/weft = 0.05
G = 400 kN/m

The other material, a textile mesh without surface treatment, has the following values:

Ewarp = 1600 kN/m
Eweft = 1200 kN/m
vWarp/weft = 0.05
G = 10 kN/m

The following figure shows the resulting plane cutting patterns. By moving the centers of gravity of both cutting patterns into the same point and enlarging the right part of the cutting patterns in the cutout (Figure 14), the difference between both shapes becomes clear. If you consider the material properties, you can achieve better quality cutting patterns. After assembling the structure, the real prestress is closer to the intended prestress.

Image 13 - Cutting Patterns for Fabric with Surface Treatment (Top) and for Textile Mesh Without Surface Treatment (Bottom)

Image 14 - Different Shape of Cutting Patterns when Using Different Materials

For determining the cutting patterns, a compensation is also used, which is determined by biaxial tests and simulates the dissolution of the prestress in the fabric.

A nonlinear calculation according to the finite element method provides an energetically optimal planar cutting pattern in relation to the spatial one. Since it is based on physical principles, this calculation method is the most natural.

In the process of creating a cutting pattern, you can also consider other design requirements. Mainly, maintaining equal lengths of the adjacent edges of adjacent cutting patterns is required. Often, the application of different compensation is required for some edges of cutting patterns. This is often referred to as decompensation of the edges. In compliance with these design requirements and using the nonlinear analysis, an energetically optimized cutting pattern is found.

Summary

The aim of this article was to explain the main processes involved in planning membrane structures. The physical principles should be explained and the individual theses illustrated by examples. The examples were developed in the RFEM program by Dlubal Software GmbH [2].

Acknowledgments

This article was created with the support of the FAST-J-15-2803 project.

Literature

[1] Otto, F.; Rasch, B.: Finding Form: Towards an Architecture of the Minimal. Fellbach: Edition Axel Menges, 1996
[2] Forster, B.; Mollaert, M.: European Design Guide for Tensile Surface Structures. Brussels: TensiNet, 2004
[3] Veenendaal, D.; Block, P.: An Overview and Comparison of Structural Form Finding Methods for General Networks, International Journal of Solids and Space Structures 49, pp. 3741 - 3753. Amsterdam: Elsevier, 2012
[4] Architen Landrell: Basic Theories of Tensile Fabric Architecture
[5] Bletzinger, K.-U.; Ramm, E.: A General Finite Element Approach to the Form-Finding of Tensile Structures by the Updated Reference Strategy, International Journal of Solids and Space Structures 14, pp. 131 - 146. Amsterdam: Elsevier, 1999
[6] Wüchner, R.; Bletzinger, K.-U.: Stress‐Adapted Numerical Form Finding of Pre‐Stressed Surfaces by the Updated Reference Strategy, International Journal for Numerical Methods in Engineering 64, pp. 143 - 166. Amsterdam: Elsevier, 2005
[7] Němec, I. et al.: Finite Element Analysis of Structures: Principles and Praxis. Aachen: Shaker, 2010
[8] Moncrieff, E.; Topping, B.-H.-V.: Computer Methods for the Generation of Membrane Cutting Patterns, Computers and Structures 37, pp. 441 - 450. Amsterdam: Elsevier, 1990
[9] Bletzinger, K.-U.; Linhard, J.; Wüchner, R.: Advanced Numerical Methods for the Form Finding and Patterning of Membrane Structures, CISM International Centre for Mechanical Sciences 519, pp. 133 - 154. Berlin: Springer, 2010

Authors

Ing. Rostislav Lang
doc. Ing. Ivan Němec, CSc.
Ing. Hynek Štekbauser
Institute of Mechanical Engineering, FAST VUT v Brně (College of Civil Engineering, Technical University of Brno), FEM consulting Brno

Reviewer

Prof. Ing. Jiří Studnička, DrSc., ČVUT v Praze (Czech Technical University in Prague)

Keywords

Form-finding Cutting pattern Prestress Membrane Cable structure Warp Weft Cutting Textile construction Textile Force density
