RF-FORM-FINDING | Input
The form-finding function can be activated in the General Data dialog box, Options tab. Prestresses (or geometrical requirements for members) can be defined in the parameters for surfaces and members. The form‑finding process is performed by calculation of an RF‑FORM‑FINDING case.Steps of the working sequence:
- Creation of a model in RFEM (surfaces, beams, cables, supports, material definition, etc.)

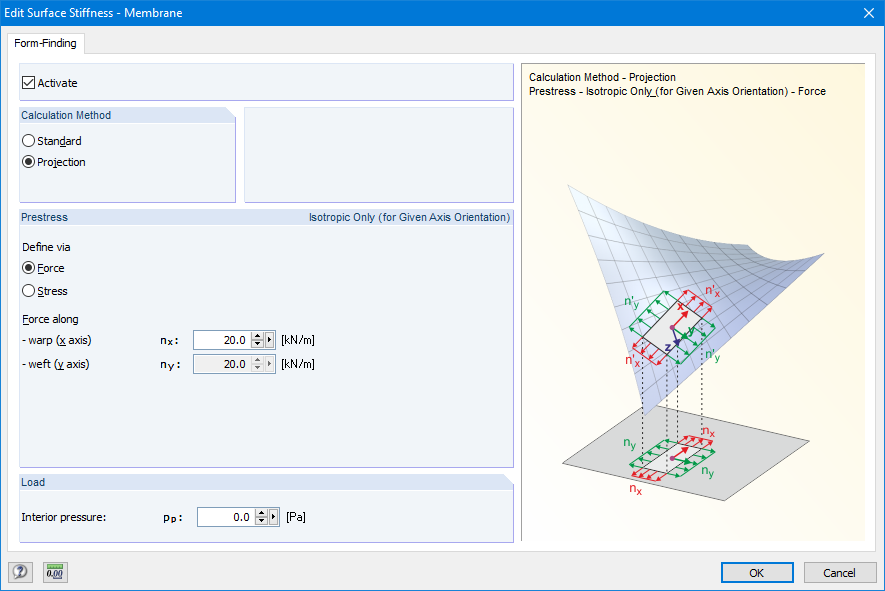

- Setting of required prestress for membranes and force or length/sag for members (e.g. cable)
- Optional consideration of other loads for the form-finding process in special form‑finding load cases (self‑weight, pressure, steel node weight, etc.)
- Setting of loads and load combinations for further structural analyses
The RF‑FORM‑FINDING add‑on module can be activated in the ‘Edit Model - General Data’ window, ‘Options’ tab. By activating the module, a new RF‑FORM‑FINDING load case is created and an additional menu appears in the main program, allowing for the definition of prestress conditions for membrane and cable elements.
With the activated option "Topology on form-finding shape" in the Project Navigator - Display, the model display is optimized based on the form-finding geometry. For example, the loads are displayed in relation to the deformed system.
