Importing Support Forces from Other Model | Load Wizard of Level 1

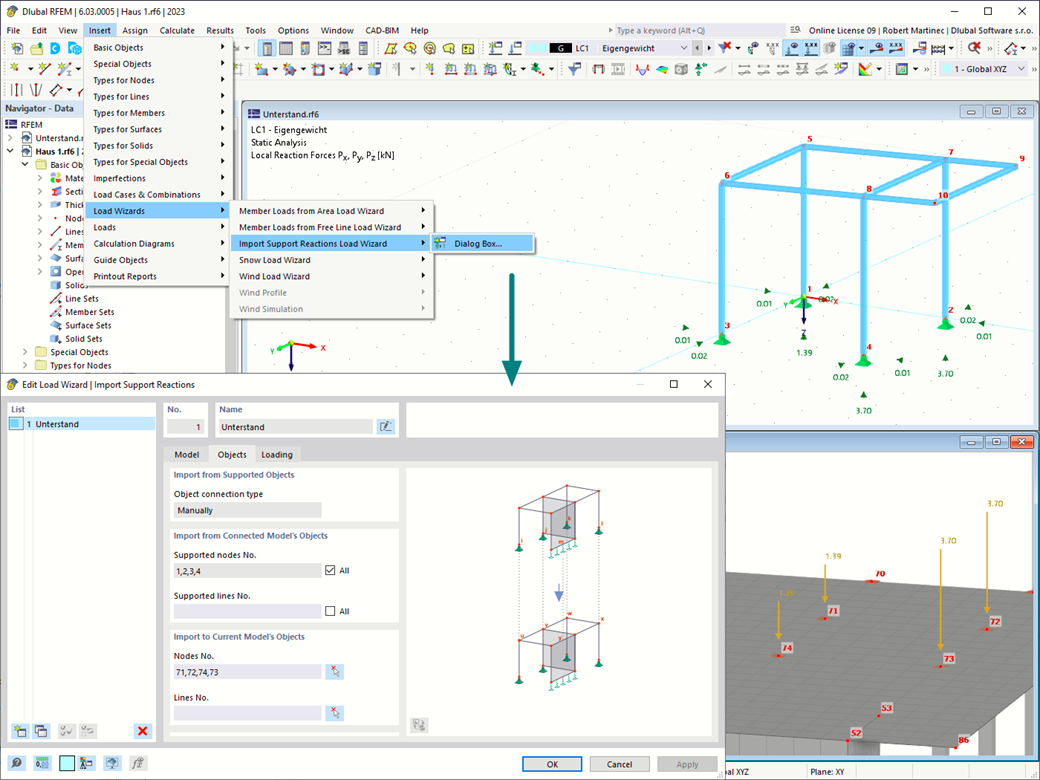

Use the "Import Support Reactions" Load Wizard in RFEM 6 and RSTAB 9 to easily transfer reaction forces from other models. The wizard allows you to connect all or several nodal and line loads of different models with each other in a few steps.

The load transfer from load cases and load combinations can be carried out automatically or manually. It's necessary that the models are saved in the same Dlubal Center project.

The "Import Support Reactions" load wizard supports the concept of positional statics and allows you to digitally connect the individual positions.
