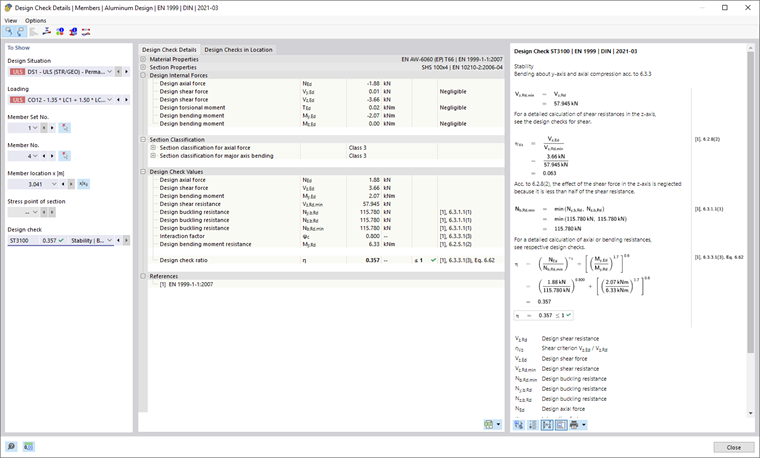

A detailed output of the design add-on can be displayed by double-clicking the design row or by clicking the
button in the result table. When opening the dialog box, the design selected in the table is displayed first.
View
This dialog box allows you to also open other views, such as a result diagram in a cross-section, cross-section properties, or a result diagram. Further information can be found in the respective chapters of the manual.
|
Result Diagram in Section |
|
Material Information |
|
Cross-Section Information |
|
Dialog Box of Result Diagrams |
Options
The buttons
and
allow you to synchronize the displayed design checks with the result table. The text boxes in the Display area are then filled in automatically after selecting the design in the table.
