Steel solar track
Model to Download
Description

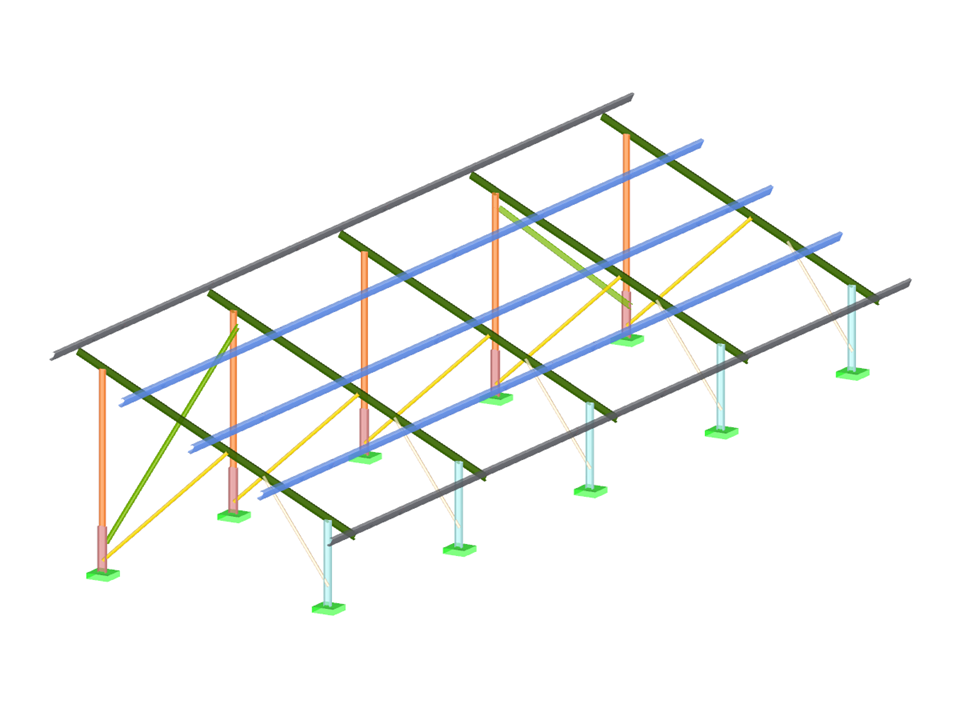

Steel solar track made of cold formed steel cross sections, including design according to Eurocode 3
Keywords
Solar track Cold Formed Renewable Energy
Write Comment...
Write Comment...
Disclaimer
New
Parameterization of Rolled Cross-Sections
Rolled sections, the most common cross‑section type in RFEM and RSTAB, can also have user‑defined parameters.
SHAPE-THIN | Cold-Formed Sections
SHAPE-THIN determines the effective cross-sections according to EN 1993-1-3 and EN 1993-1-5 for cold-formed sections. You can optionally check the geometric conditions for the applicability of the standard specified in EN 1993‑1‑3, Section 5.2.
The effects of local plate buckling are considered according to the method of reduced widths and the possible buckling of stiffeners (instability) is considered for stiffened sections according to EN 1993-1-3, Section 5.5.
As an option, you can perform an iterative calculation to optimize the effective cross-section.
You can display the effective cross-sections graphically.
Read more about designing cold-formed sections with SHAPE-THIN and RF-/STEEL Cold-Formed Sections in this technical article: Design of a Thin-Walled, Cold-Formed C-Section According to EN 1993-1-3.
