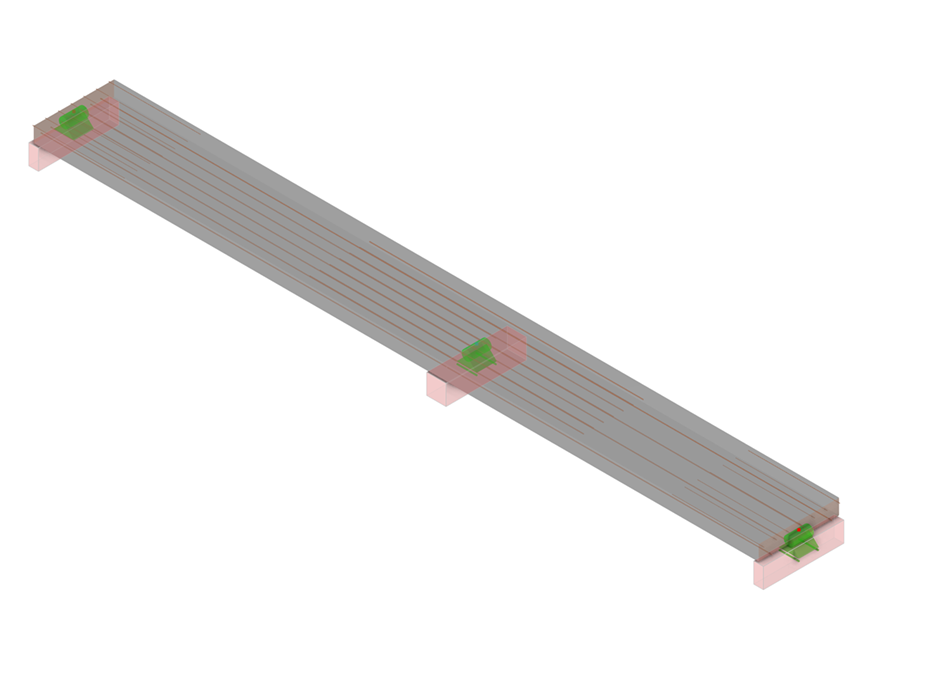

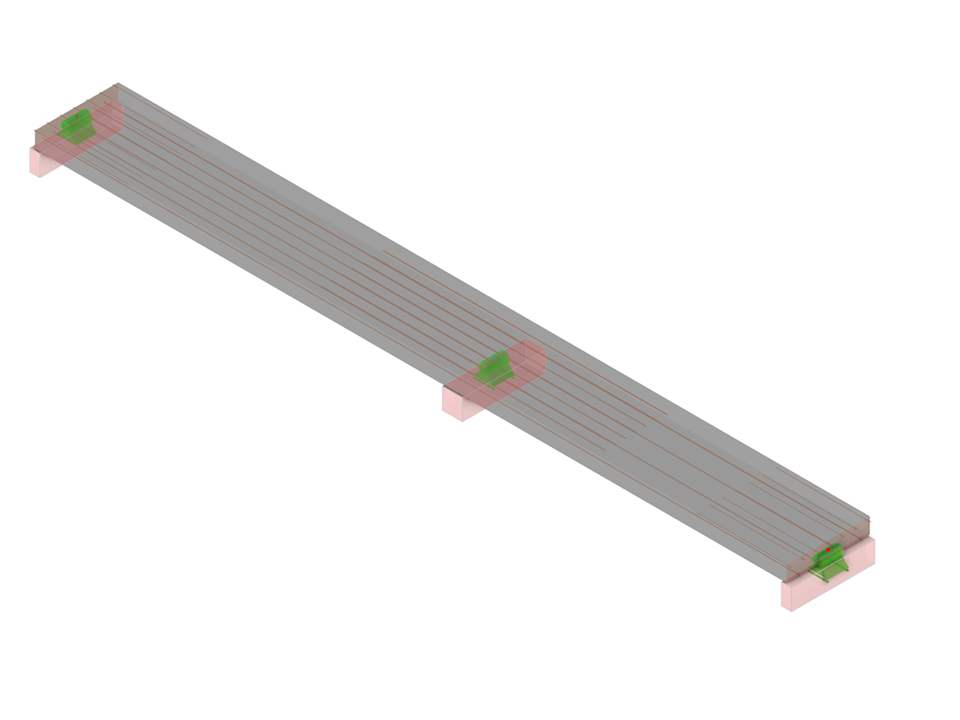

A reinforced concrete slab designed as a 1.0 m stripe with members. The slab is uniaxially spanned and runs through two spans.
Verification Example 1021 | Uniaxial Spanned Concrete Slab Designed in RSTAB
| Number of Nodes | 3 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 16 |
| Number of Result Combinations | 0 |
| Total Weight | 4.275 tons |
| Dimensions (Metric) | 9.000 x 0.000 x 0.000 m |
| Dimensions (Imperial) | 29.53 x 0 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
