What does the triangle behind the values of the internal forces in the printout report mean?

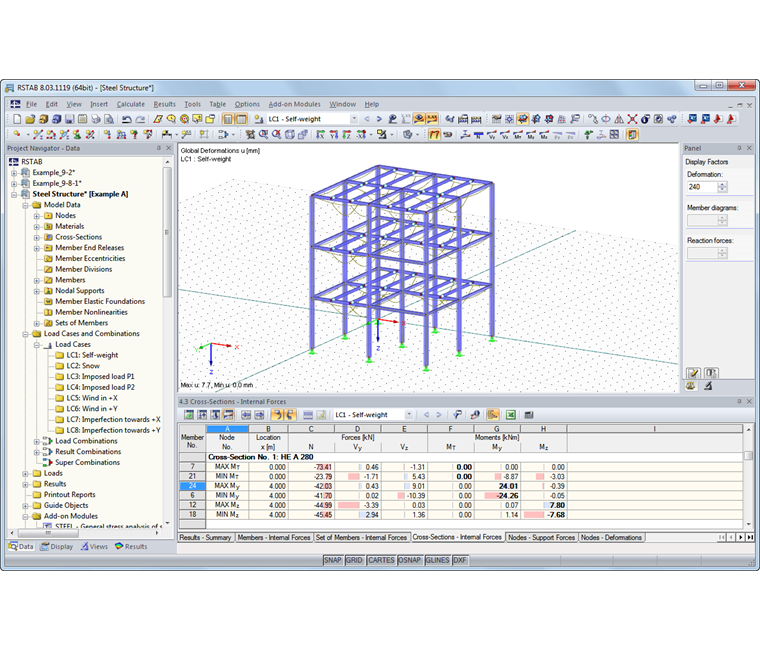

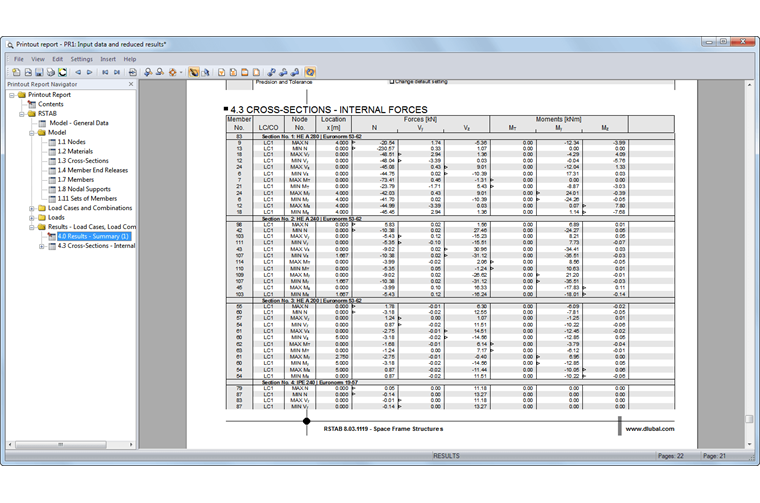

The triangle indicates extreme values of internal forces (figure 1). In the results table of RSTAB and RFEM, these are shown in bold font (figure 2).

Bold font would not be very appealing in the printout report. For result combinations, the table always shows two values: the maximum and minimum.


Printout report Triangle Internal forces extreme values
