How can I correct Error No. 1602 referring to a missing line entry in the member definition?

Answer

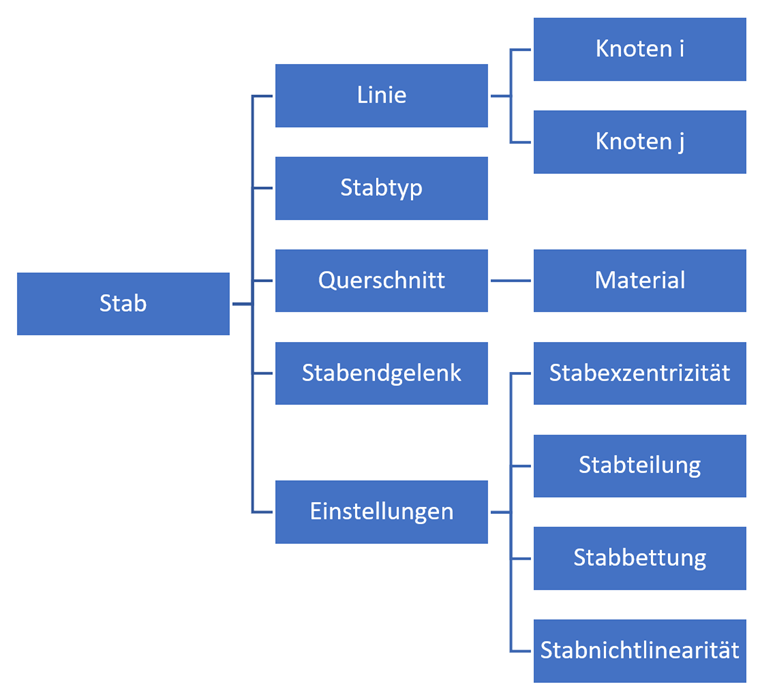

The model entry in RFEM is organized hierarchically. The basic element "Member" cannot be defined directly, but is based on a hierarchically defined set of geometrical and physical definitions.

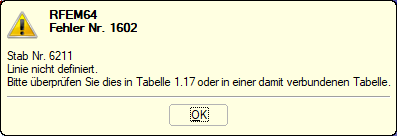

The error message No. 1602 appears if there is at least one member definition in the model that has no assigned line entry.

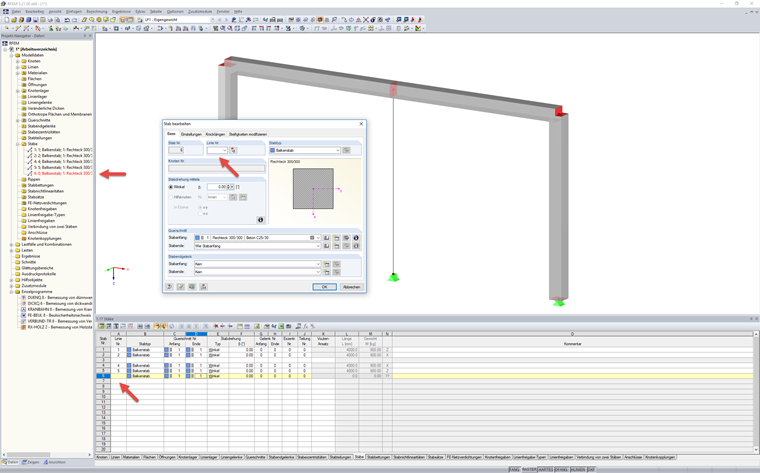

In this case, it is necessary to add the missing line entry to the affected member definitions or to delete the invalid member definition.

Keywords

Error 1602 Incomplete Plausibility check Hierarchy
