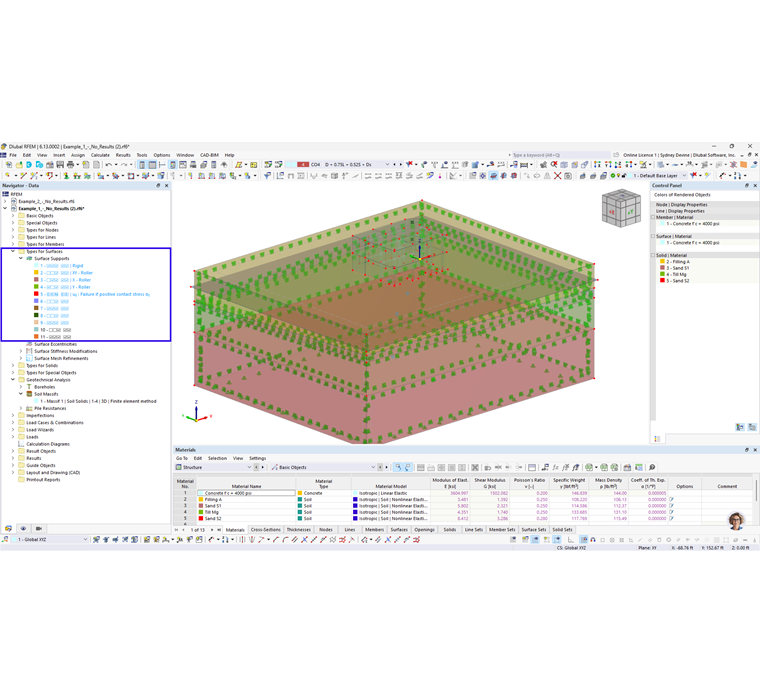

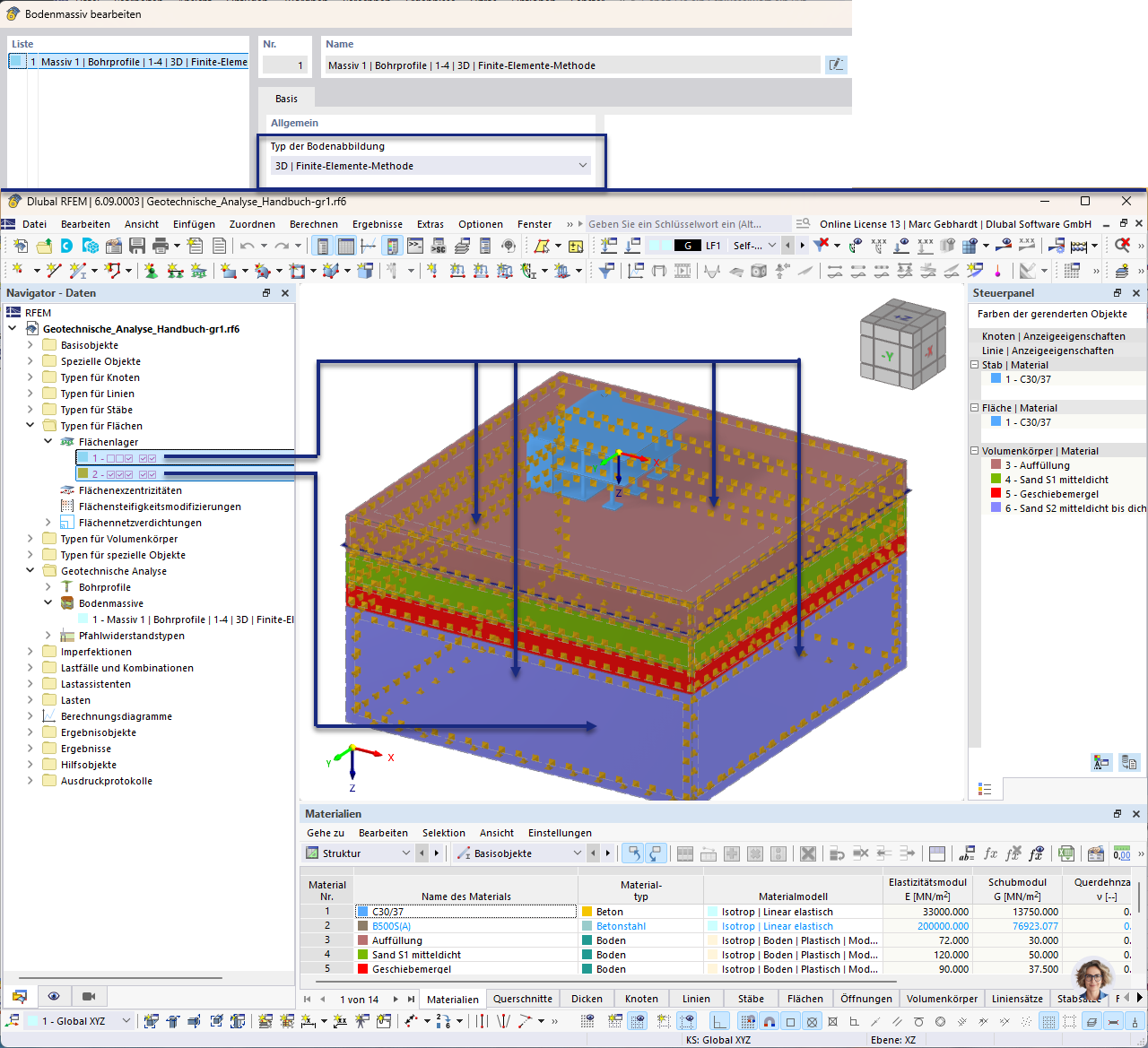

When selecting the “3D | Finite Element Method” type of soil representation, surface supports are automatically created on the external surfaces of the soil massif. These are assigned as described in the chapter Geometric Boundary Conditions. The following image shows an example of assigning moving and fixed surface supports.
