Cirerers, Spain's Tallest Wooden Residential Building (Barcelona)

Structures Analysed with Dlubal Software

  • Customer Project

Customer Project

Dlubal's Spanish customer Estudi M103, an architectural office for structural consulting and calculation reports located in Barcelona, participated in an extraordinary construction project. The "Cirerers" project arises from a contest for municipal building sites for cohousing published by the Barcelona City Council in 2016.

Architects Celobert (Diego Carrilo Messa)
celobert.coop
Master Builder Grupnou (Xavier Humet)
grupnou.cat
Structure consultant Estudi M103 (Jorge Blasco Miguel and Ferran Peralba Garrabou)
estudi-m103-slp.negocio.site
Construction La constructiva
sostrecivic.coop/neix-la-constructiva-per-una-construccio-etica-social-i-sostenible/
Timber supply KLH
www.klh.at
Timber structure design Eng. Albert Admetlla - Kmod Enginyeria en fusta SLP
Timber structure assembly Velima
www.velimasystem.com
Promoter Sostre Cívic
sostrecivic.coop

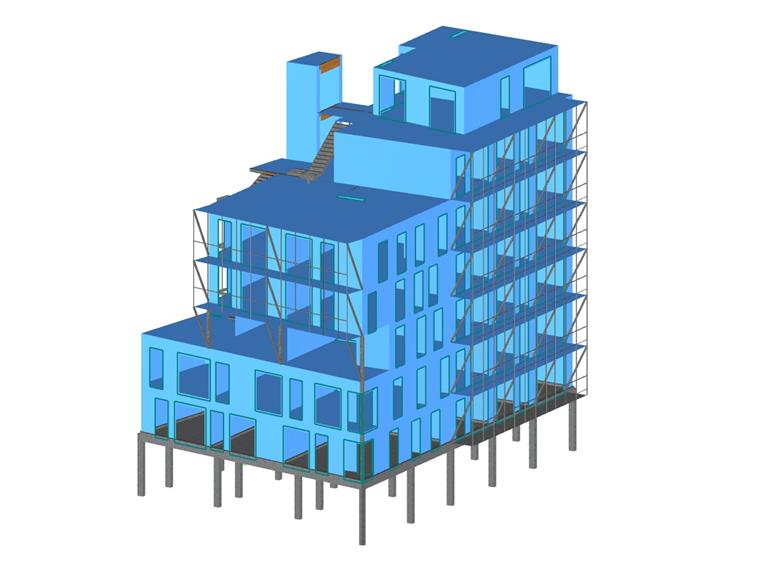

Model

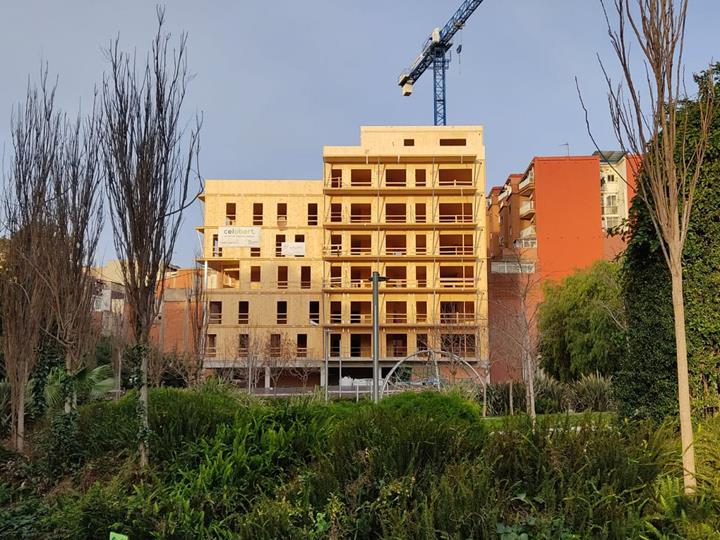

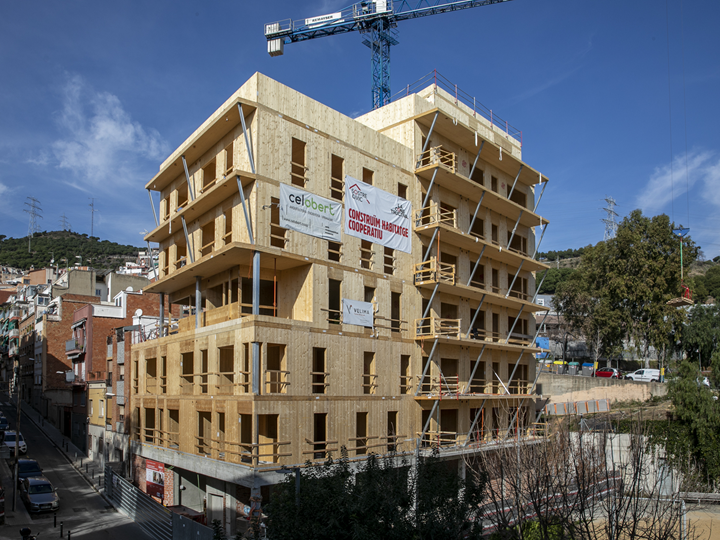

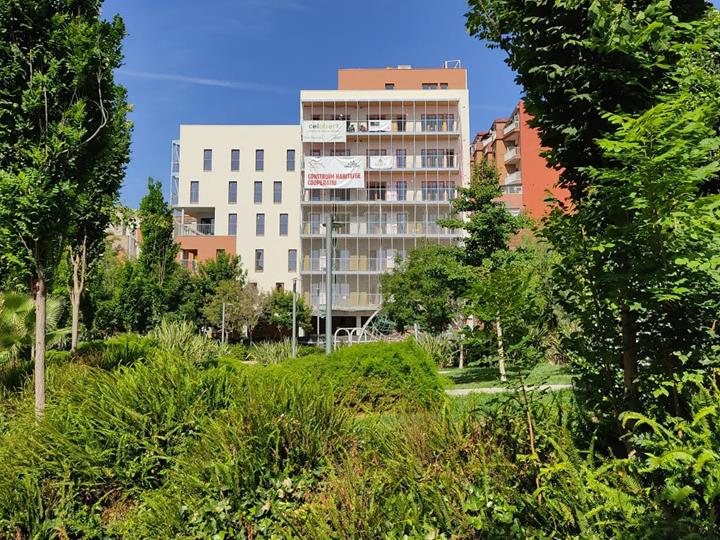

The Sostre Cívic housing cooperative entrusted Celobert Architects with the development of the architectural proposal, which ended up winning the competition. The cooperative building (a project in which the future tenants have also taken part), with 32 apartments and common spaces, consisting of a ground floor and seven stories built in Pla dels Cirerers street 2 - 4 in Barcelona, was designed by Celobert. With a height of approximately 26.5 meters, it is the tallest wooden building built in Spain to date.

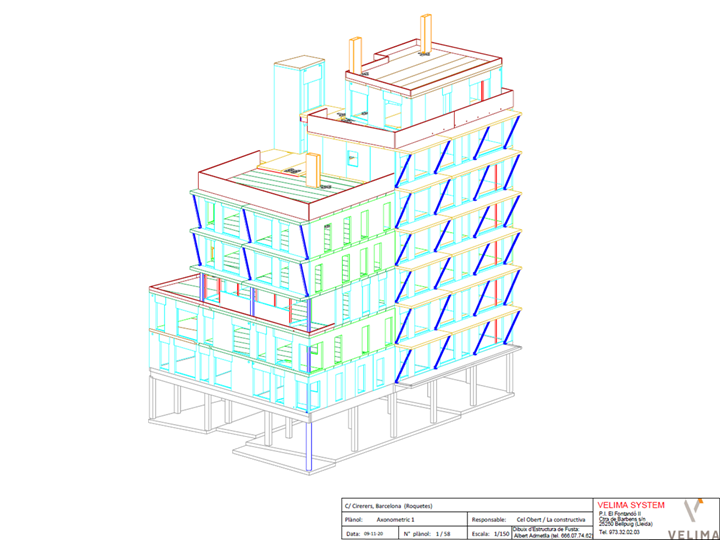

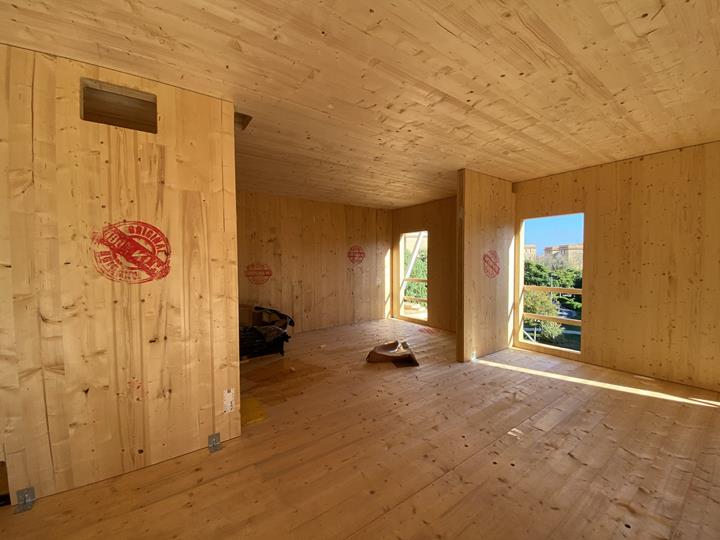

The structure on the ground floor consists of columns, walls, deep beams, and an HA-30 concrete slab. The timber structure of the remaining 7 floors is supported by the concrete slab of the ground floor ceiling. This wooden structure is composed of cross-laminated timber (CLT) walls and floors. The cadwork assembly drawings were designed by engineer Albert Admetla and the assembly was carried out by Velima, a Spanish company.

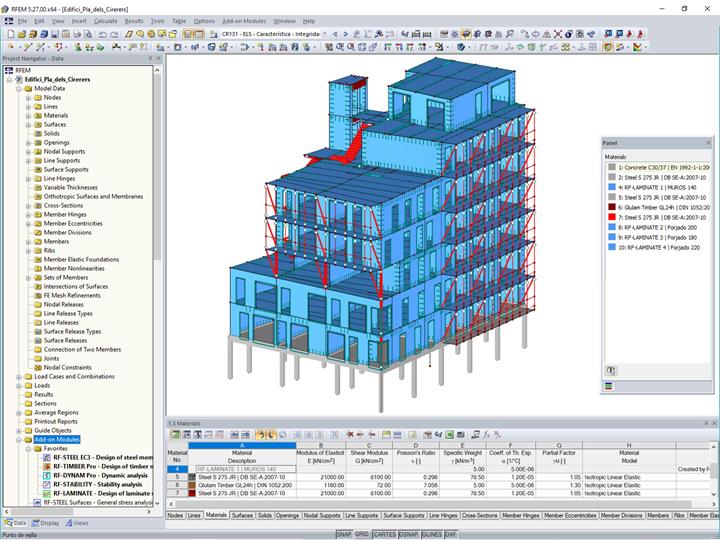

For the calculation and design of the timber beams, the Dlubal add-on module RF-TIMBER Pro was used; the RF-STEEL EC3 add-on module was used for the verification of the steel members, and RF-LAMINATE was used for the calculation of the CLT panels. The structure's stability was checked using RF-STABILITY; the natural vibrations were analyzed with RF-DYNAM Pro. The building, comprising communal rooms, will be a passive house because it will have minimal energy demand in terms of air conditioning and hot water production, and it is ecological because organic materials with a minimal ecological footprint are used preferentially.

Project Location

Carrer del Pla dels Cirerers, 2-4
08042 Barcelona
Spain

Keywords

Building Cohousing Cross-laminated timber CLT Estudi M103 KLH panel

Write Comment...

Write Comment...

  • Views 913x
  • Updated 23 February 2022
