How can I perform the design of the tension resistance of a smooth column in a smooth bucket column base, that is, the design against pulling out the column?

Answer

This design can be performed in the RF‑/JOINTS Steel - Column Base add-on module.

Select the joint type in Window "1.1 General Data," see Image 01.

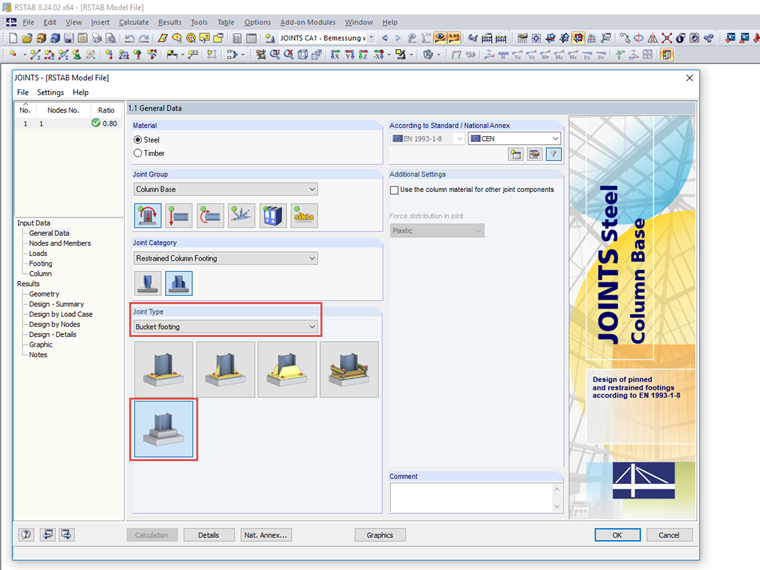

Image 01 - General Data: Joint Type

After entering further parameters, you can define the friction coefficient μ in Window "1.5 Column," see Image 02.

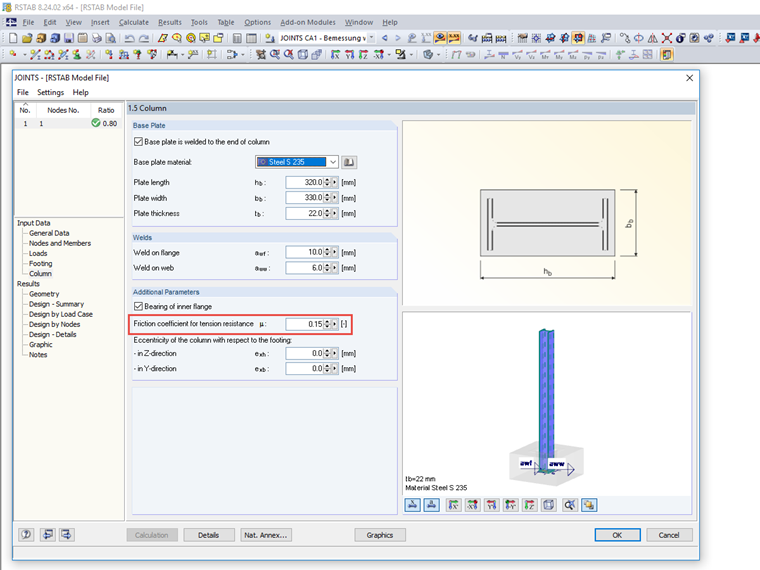

Image 02 - Friction Coefficient for Tension Resistance

Keywords

Tension Tension resistance Foundation Pull out Design
