Result Diagrams

The results can also be displayed using diagrams. Those are available for lines, members, line supports, and result sections (see the Chapter Result Sections).

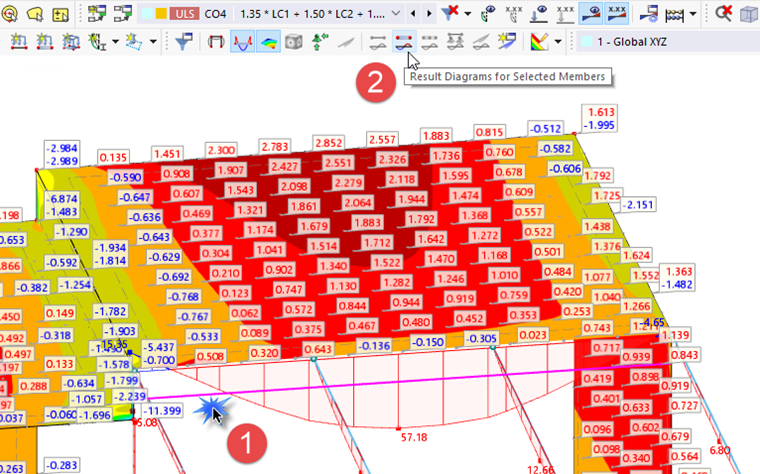

To access the result diagrams of the downstand beam, select the rib member (no. 9) (1). Then click the Result Diagram button on the toolbar (2).

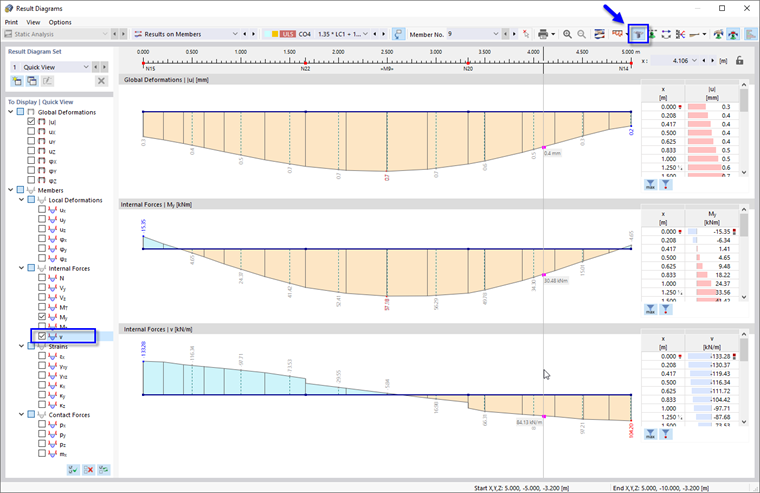

The 'Result Diagrams' window opens. The graphs present the results along the downstand beam.

The diagrams of the deformations '|u|' and of the moments 'My' are preset. Additionally, select the v option from the 'Internal Forces' item to display the longitudinal shear forces between the slab and member. Those results are shown when the Rib Internal Forces button on the toolbar is activated.

When you click the Rib Internal Forces button, you will notice the difference between the internal forces of the member and the rib which include the components integrated from the slab.

Close the 'Result Diagrams' window by clicking the Closing button on its title bar.
