Are there any recommendations or references or references to standards for the filter options "Limit values for stability proof" in the details of the add-on module RF- / Steel EC3?

Answer

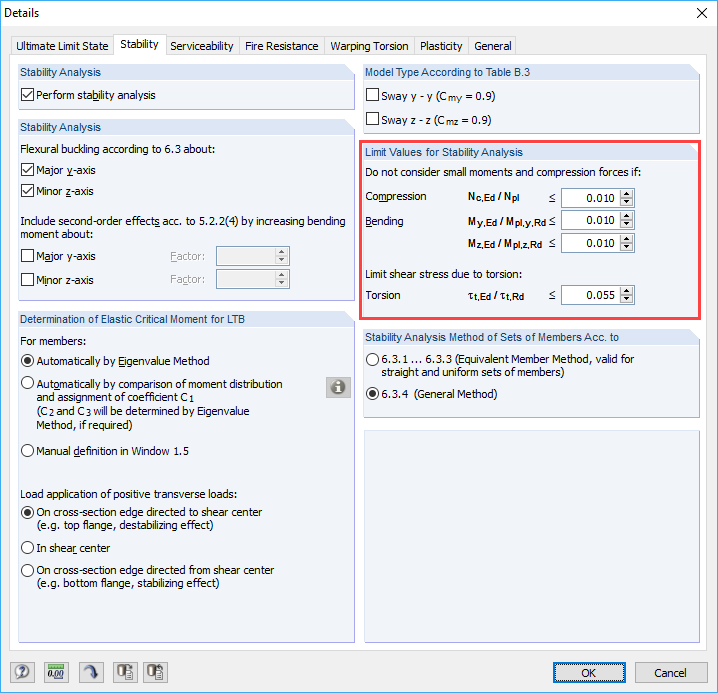

The filter functions in the details - Stability should make it possible to neglect small moments or compressive forces and for example in unbalanced cross sections to carry out the buckling detection and neglect the interaction bending and pressure, otherwise a warning appears stating that no proof of stability is possible.
The application and setting takes place at the discretion of the user and is usually to be agreed with the examiner. A recommendation can not be given by Dlubal Software, but with very slim components it can make sense to reduce the filters to 0%.

Keywords

Steel construction stability details filters limit values special cases bending and pressure buckling bending steel Eurocode 3
