How can we view the database of RF-LAMINATE? We would like to check this up to date.

Answer

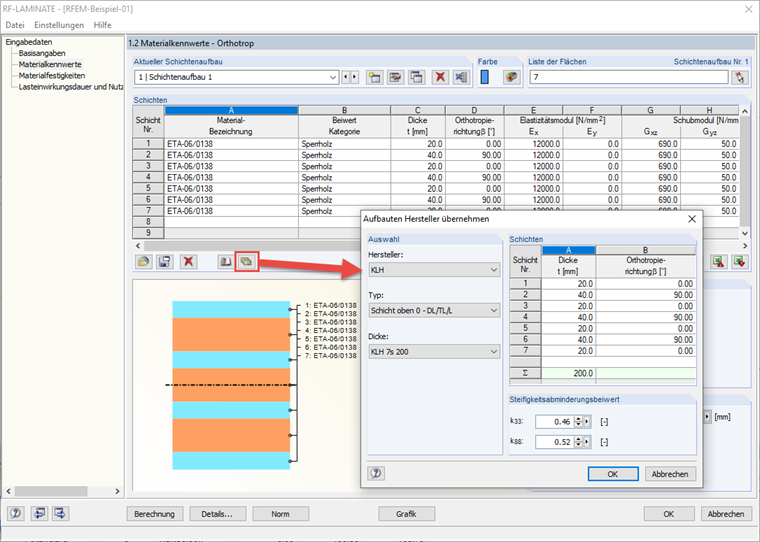

The easiest way is to start RFEM or the laminates module and create at least. an area and min. a load case. After you have selected the surface and defined the load case for dimensioning, open the manufacturer library (see Figure 1). There you can choose a structure.

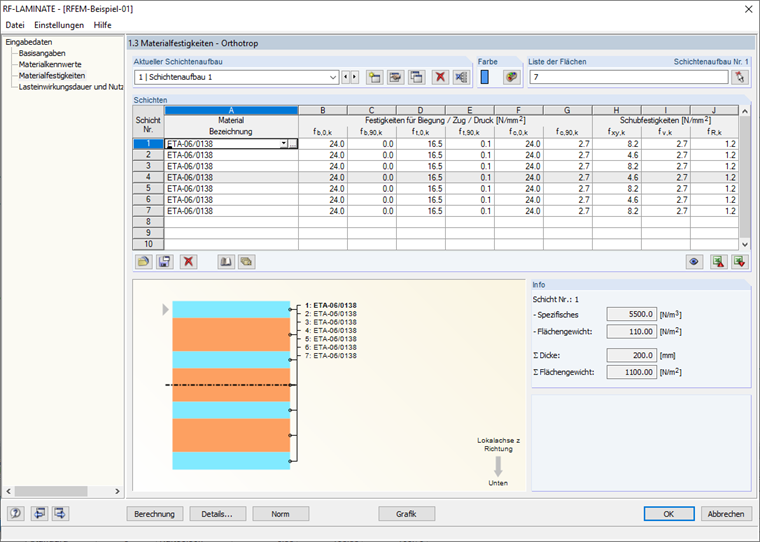

Afterwards you can check the material characteristics as well as the strengths (see picture 1 and picture 2).

There is also an interesting webinar on " Designing Cross Laminated Wood Panels in RF-LAMINATE " on our website.
