Online Manual RFEM | Surfaces

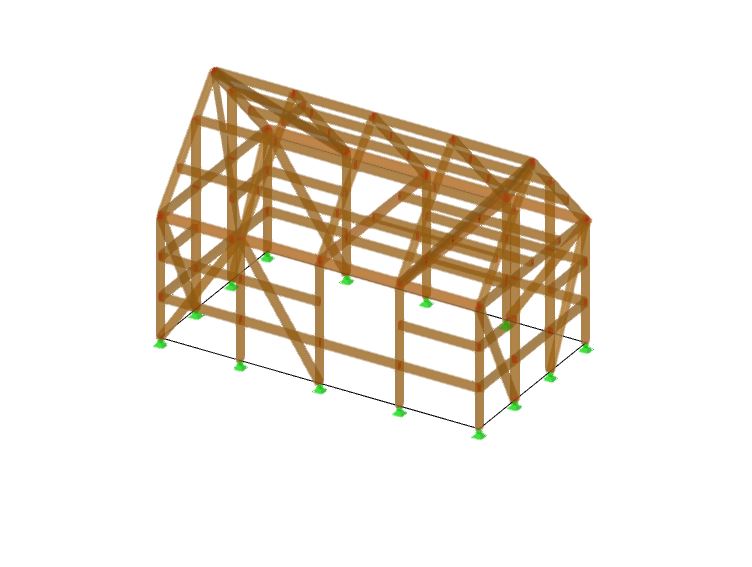

Download the model of a timber frame building with an attic story here, and open it with the structural FEA software RFEM 6.
The load transfer surface was used to apply the surface loads to the members. Furthermore, the respective load wizards were used for snow and wind loads.
All timber members were designed using the Timber Design add-on.
Timber Frame Building
| Number of Nodes | 92 |
| Number of Lines | 112 |
| Number of Members | 98 |
| Number of Surfaces | 7 |
| Number of Solids | 0 |
| Number of Load Cases | 7 |
| Number of Load Combinations | 109 |
| Number of Result Combinations | 0 |
| Total Weight | 1.754 tons |
| Dimensions | 26.25 x 18.04 x 14.76 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
Product Feature
Knowledge Base
Using the "Beam Panel" thickness type, you can model timber panel elements in 3D space. You just specify the surface geometry and the timber panel elements are generated using an internal member-surface construct, including the simulation of the connection flexibility.
