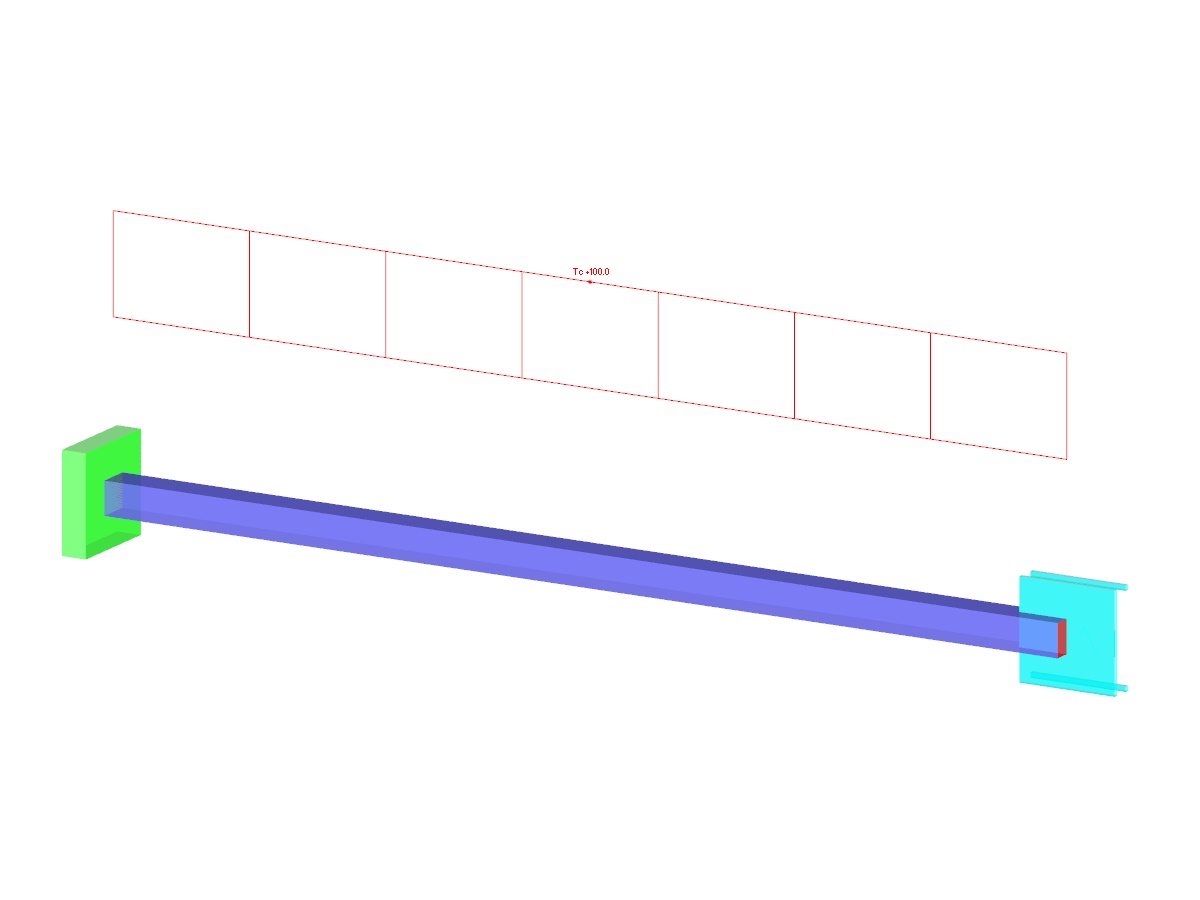

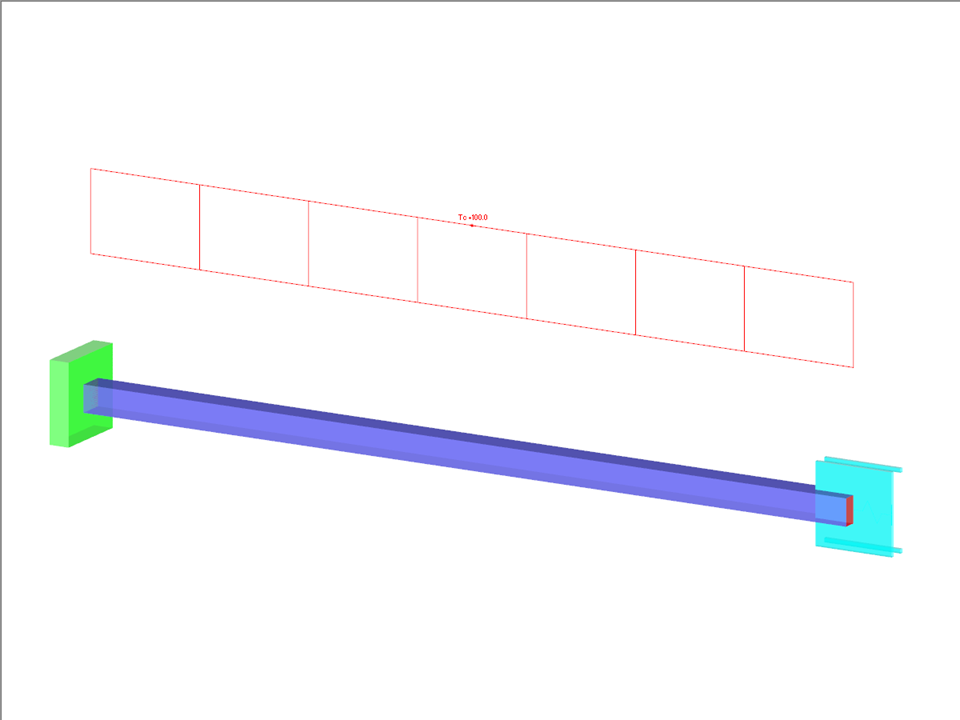

A steel beam between two rigid supports with a gap at one end is loaded by a temperature difference. While neglecting self‑weight, determine the total deformation of the beam and its internal axial force.
Verification Example 000077 | 1
| Number of Nodes | 2 |
| Number of Lines | 1 |
| Number of Members | 1 |
| Number of Load Cases | 1 |
| Total Weight | 0.000 tons |
| Dimensions | 1.21 x 0.23 x 0.23 feet |
| Program Version | 5.10.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
