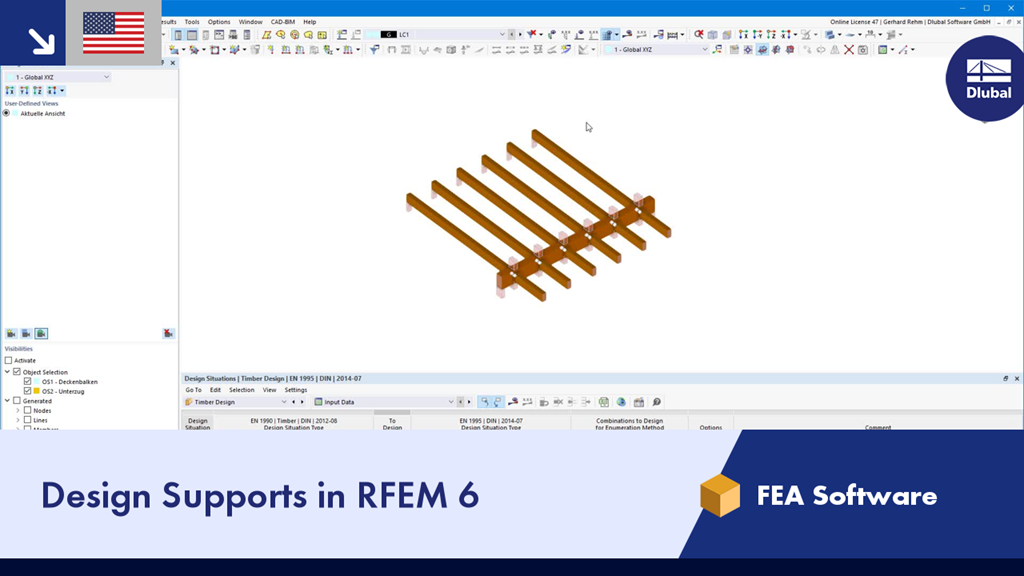

The design supports essentially have two functions:
1. Definition of the boundary conditions for the verification of 'pressure perpendicular to the grain in timber construction. For concrete construction with regard to the anchorage length, moment reduction and single loads close to the support.
2. Segmentation of the member or set of members for the deflection analysis
General
Product Feature
Do you have individual column sections and angled wall geometries, and need punching shear design for them?
No problem. In RFEM 6, you can perform punching shear design not only for rectangular and circular sections, but for any cross-section shape.
Using the "Beam Panel" thickness type, you can model timber panel elements in 3D space. You just specify the surface geometry and the timber panel elements are generated using an internal member-surface construct, including the simulation of the connection flexibility.
You have the option to perform the fire resistance design of surfaces using the reduced cross-section method. The reduction is applied over the surface thickness. It is possible to perform the design checks for all timber materials allowed for the design.
For cross-laminated timber, depending on the type of adhesive, you can select whether it is possible for individual carbonized layer parts to fall off, and whether you can expect increased charring in certain layer areas.
The Concrete Design add-on provides you with the option to perform the simplified fire resistance design according to EN 1992‑1‑2 for columns (Section 5.3.2) and beams (Section 5.6).
The following design checks are available for the simplified fire resistance design:
You can determine the internal forces for the fire resistance design according to two methods.
Furthermore, it is possible to modify the axis distance according to Eq. 5.5.
