Loads

Info

Currently, the architecture of RWIND and RFEM 6 or RSTAB 9 integration works so that the CFD calculation of wind loads and the following static analysis of the wind-loaded structure are performed together in one load case. Therefore, the loads generated in RWIND cannot be displayed and listed among other RFEM loads. The RWIND loads are, in fact, intermediate results of the load case and can be displayed first from the Result navigator under the "Static analysis - Distribution of loads" item. For details, see Chapter Static analysis.

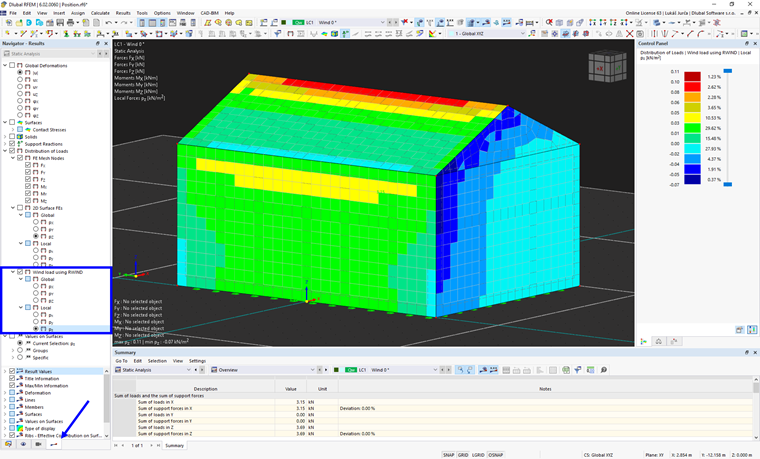

For example, the RWIND surface load can be displayed by a color map in the "Navigator - results"; see the picture below.
