RWIND 3 is able to correct small discrepancies within the model, such as nodes located very close to other nodes. To apply this function, go to Edit → Models → Repair Model. These corrections may only be required when using non-simplified models. Simplified models do not need to be repaired this way.
Model Information

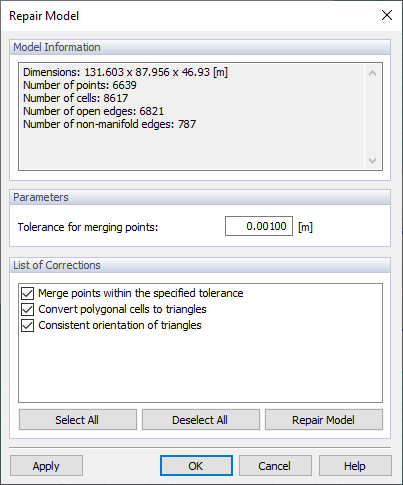

In this dialog box section, you can review the number of points, cells, open edges, and non-manifold edges. If you click the
button, these numbers will change, depending on the geometry of the imported model: The improved model will have fewer points and open edges.
Parameters
The "Tolerance for merging points" option controls the limit spacing for close points. If the tolerance is below this value, the points will be merged into a single point.
List of Corrections
There are three options in this dialog box section to control which items are to be improved: Points, mesh, and both. We recommend selecting each of them.
As mentioned above, the
function tries to improve the model layout. The modifications will not yet be applied to the model, however. You can try different limits and review the results shown in the "Model Information" section. When you are certain that you want to adopt the changes, click
or
.
