Select the model before applying the function.

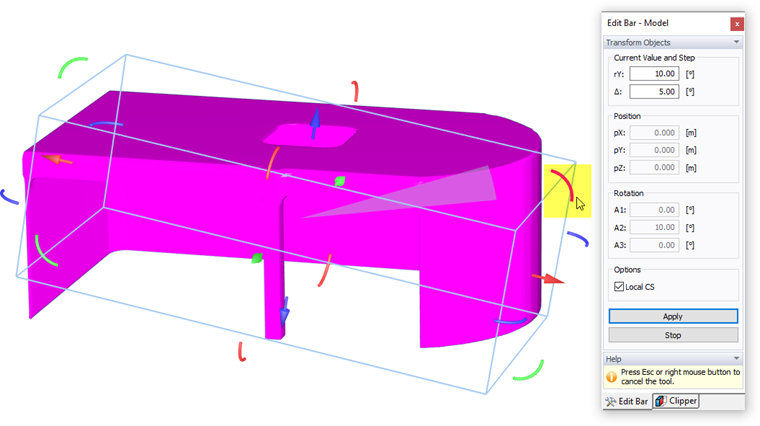

You can modify the "Position" and/or "Rotation" of the model either numerically by entering the values in the text boxes, or graphically by using the arrows shown around the model. The parameters of displacement (pX, pY, pZ) and rotation (A1, A2, A3) refer to the axes of the wind tunnel: pX and A1 are the coordinates or angles in the wind direction, pY and A2 those transversal to it, while pZ and A3 represent the vertical coordinate or angle.
Alternatively, you can move or rotate the model in the work window by selecting one of the arrows and moving it. The corresponding parameter is shown in the "Current Value" and "Step box" of the panel. There, you can also set the interval Δ for the model to snap on when moving the pointer. To deactivate the graphical tool, click the empty space in the work window.
Click
to check in the graphics whether you have set the correct parameters. Then use
to exit the function.
