Verification Example 000014 | 3
  • Description
  • Reviews (0)

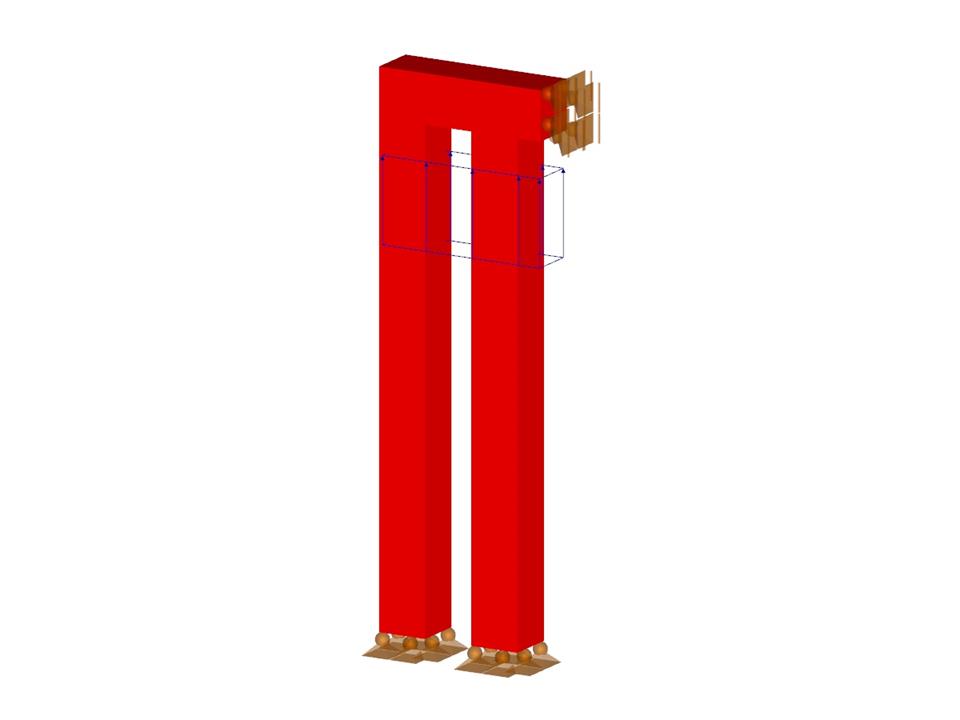

Four columns are fixed at the bottom and connected by the rigid block at the top. Block is loaded by pressure and modeled by an elastic material with a high modulus of elasticity. Outer columns are modeled by linear elastic material and inner columns by a stress-strain diagram with the decaying dependence. Assuming only small deformations theory and neglecting structure's self-weight, determine its maximum deflection.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Verification Example 000014 | 3

Number of Nodes 28
Number of Lines 49
Number of Surfaces 24
Number of Solids 3
Number of Load Cases 1
Dimensions (Metric) 0.350 x 0.100 x 1.100 m
Dimensions (Imperial) 1.15 x 0.33 x 3.61 feet
Program Version 5.05.00

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
