FAQ 000113 EN

1 December 2017

Gerhard Rehm Import / Export & BIM RFEM RSTAB

When importing a file (for example DXF) problems arise. A warning appears and the created file is empty. How can I solve this problem?

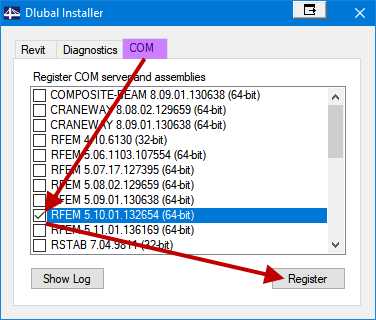

The main program RSTAB/RFEM has to be registered in Windows for a successful import. You can start the registration manually once again when problems arise. Start DLInstaller.exe by right-clicking the function --> "Run as administrator". Then switch to the tab "COM" and select the version you are using (see image). Continue by clicking "Tab" to start the registration. Then start RFEM/RSTAB to test the export/import.

DLInstaller.exe (195 kB)


Import error .Net DXF regserver
