Is it possible to display more values for the stress distribution over the layers in RF‑LAMINATE?
Answer
In the graphic, this is not possible for clarity reasons. However, the RF‑LAMINATE add-on module allows you to also display the stresses in all points. This is deactivated by default because it quickly produces a huge amount of data for large structures.

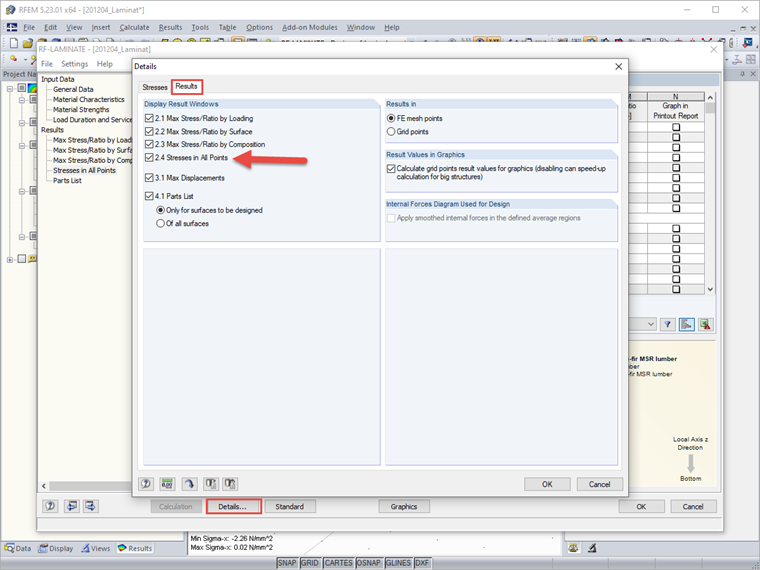

Image 01 - Displaying Stresses in All Points

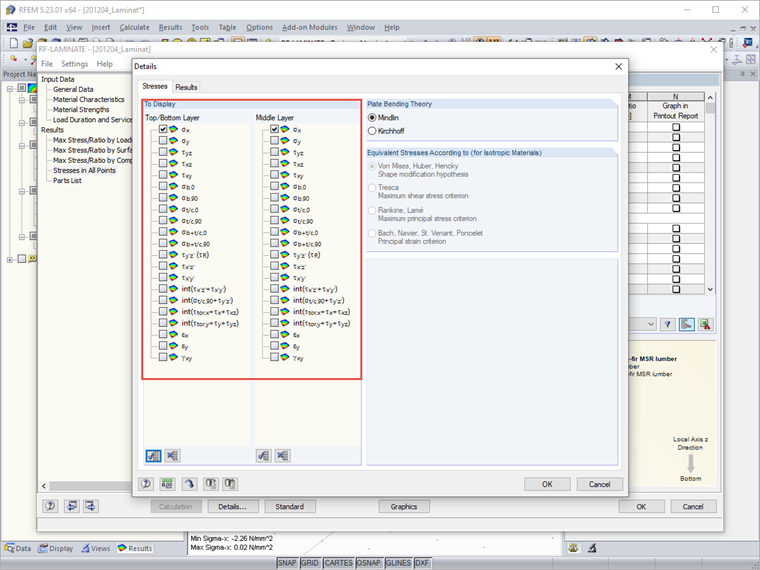

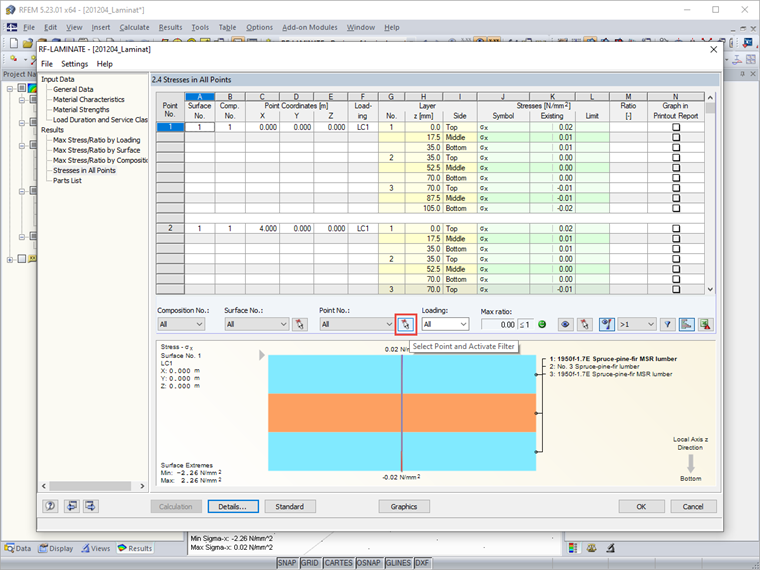

If you also filter by the stress component that interests you, the results in the table becomes quickly clear, and you can easily evaluate the distribution of stresses at a point using the layers there.

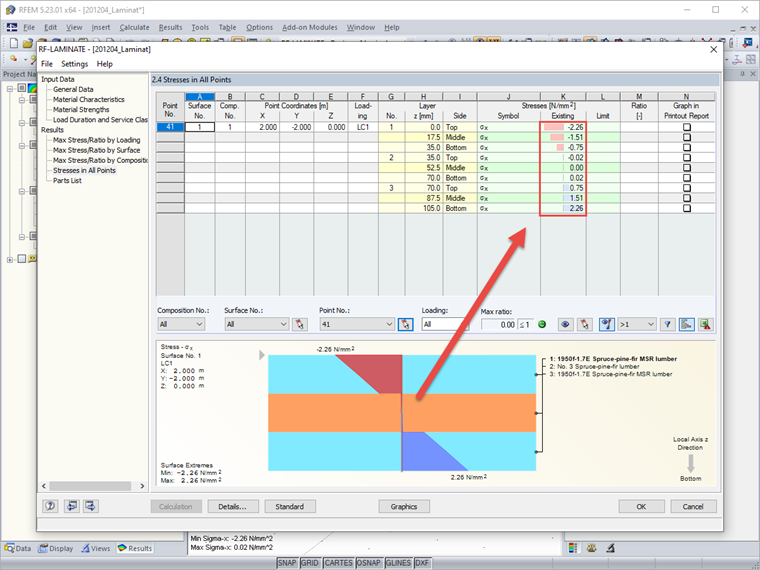

Image 04 - Displaying Stresses in Table
