Line Welded Joints

The Line Welded Joints table shows the line welded joints to be analyzed with the assigned configurations.

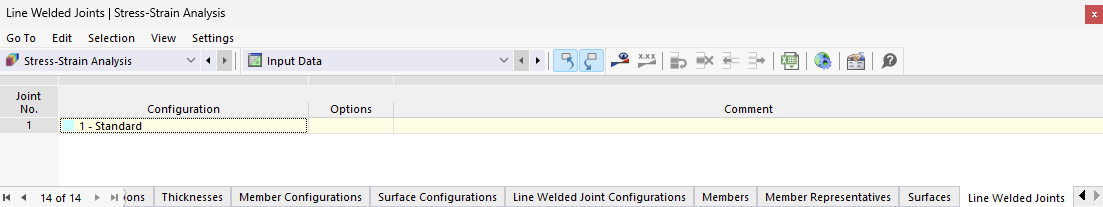

Table "Line Welded Joint" for Stress-Strain Analysis

You can edit the properties of the weld in the “Line Welded Joint” dialog box.

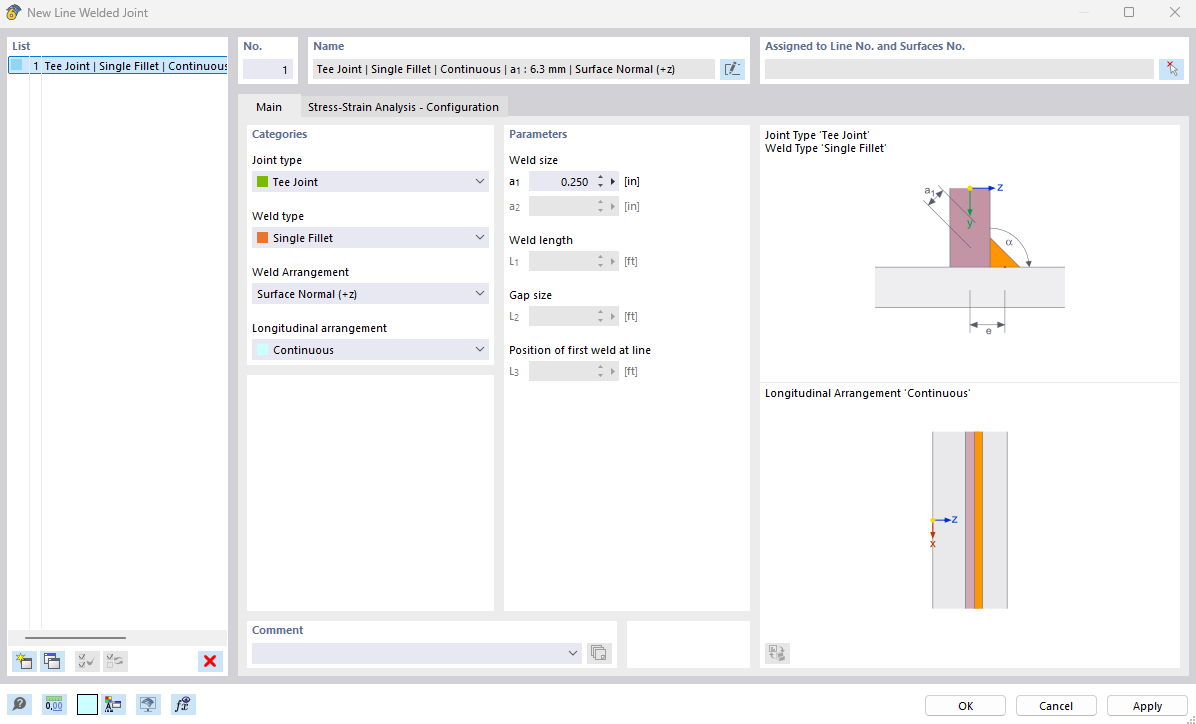

Editing Line Welded Joint

Stress-Strain Analysis – Configuration

In the Stress-strain analysis - Configuration tab of the “Line Welded Joint” dialog box, you can assign the configuration according to which the welded joint is to be designed.

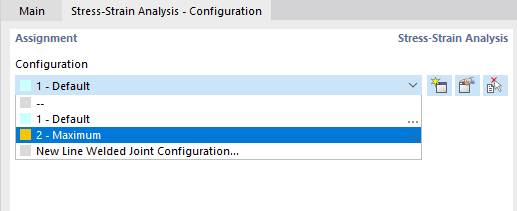

Dialog Box "Line Welded Joint": Assigning Configuration

You can use the button to create a new configuration and the button to edit the current configuration.

You can find more information on the configurations in the chapter Line Welded Joint Configurations.
