Specifications for Calculation

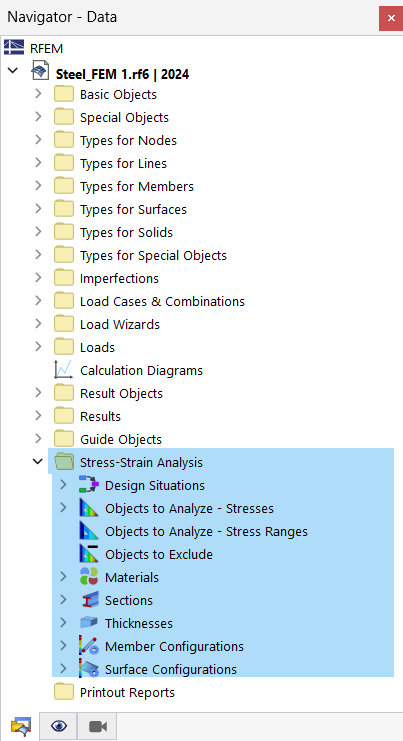

If you have activated the "Stress-Strain Analysis" in the Base Data of the model, the additional folder Stress-Strain Analysis appears in the Navigator – Data.

The objects of the Stress-Strain Analysis category are also accessible in the table. Select the "Stress-strain analysis" in the list to manage the input data for the analysis in a clearly arranged way.

The tables and input dialog boxes of this category are described in detail in the chapter Stress-Strain Analysis. These tables and objects are also the basis of the documentation that you can prepare in the printout report. The options available for this are described in the chapter Printout Report.

Further settings for the analysis can be defined in some input dialog boxes of the main program. For example, you can use members or member sets for the analysis, or define line welded joints for a subsequent calculation. You can find an explanation of the essential entries that are not included in the "Stress-Strain Analysis" category in the section Options for Stress-Strain Analysis.
