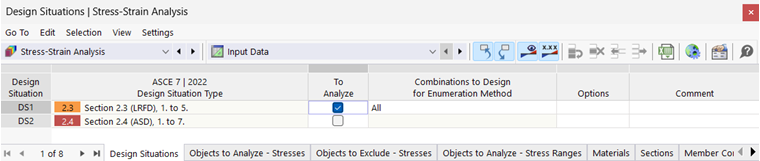

All design situations you have defined for the model are listed in the Design Situations table. Here, you can decide whether and how a particular design situation should be taken into account in the stress-strain analysis.
Selecting Design Situations

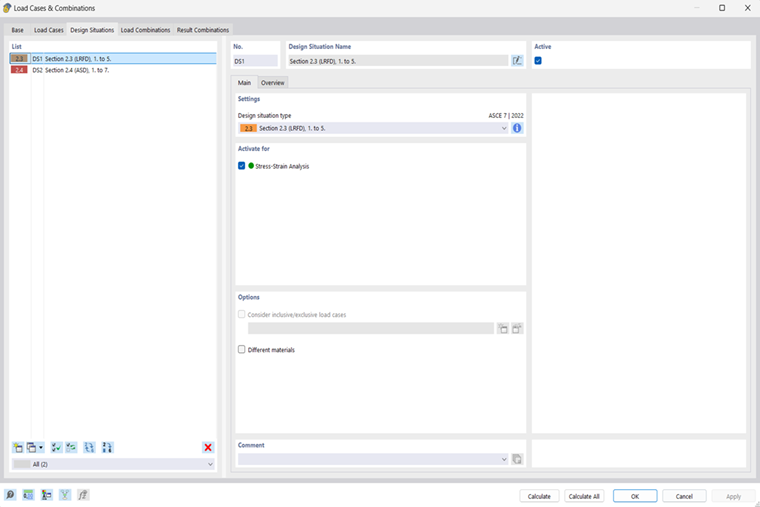

The “To Analyze” check box is activated by default. This means that all design situations are taken into account for the stress-strain analysis. If you deactivate the check box for a design situation, it will not be analyzed in the stress-strain analysis. This selection is synchronized with the corresponding setting in the “Activate for” section of the design situation.
Selecting Combinations
In the standard case, all combinations of a design situation activated for the design are taken into account. However, you can also define individual combinations from this design situation in the “Combinations to Design for Enumeration Method” column. If you click in the text box, you can use the
button to open a dialog box. Use the buttons
and
to specify the relevant load cases or combinations.
