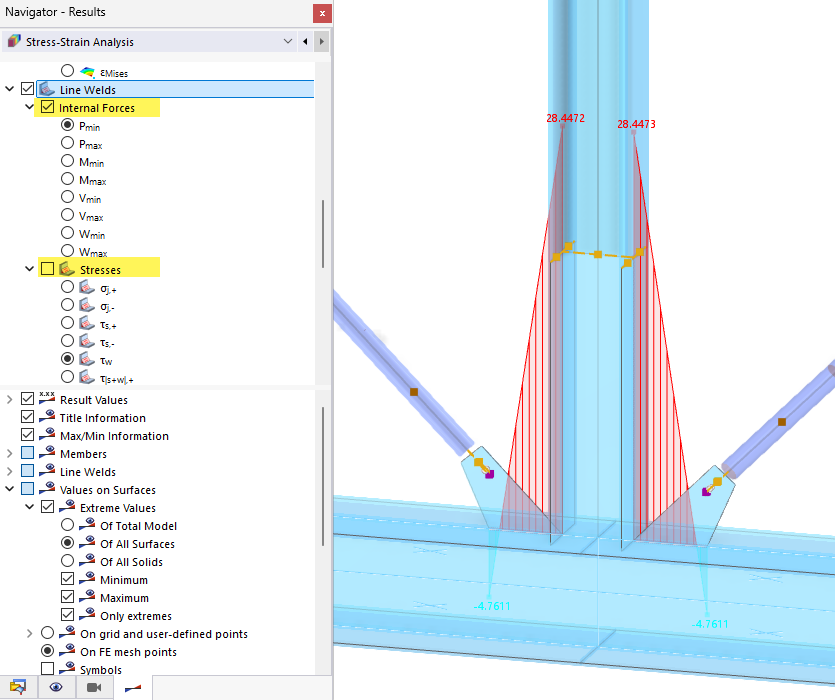

In the "Navigator – Results", specify the stresses or stress ranges that should be displayed graphically on the line welds.
All stress types that you have defined and assigned in the Line Welded Joint Configurations are available here. If you have defined limit stresses there, you can also display the stress ratios (design ratios).
In the 'Factors' tab of the panel, you can adjust the scaling factors for the line weld results (see the image Adjusting Display Factors ).
The "Line Welds" category in the lower navigator area provides you with various options for adapting the result display. You can display the distribution of stresses with or without hatching, show all the values of the design locations, or display only the extreme value of all line welds. The "With Diagram" type of display allows you to achieve a color-graded display of the results.
