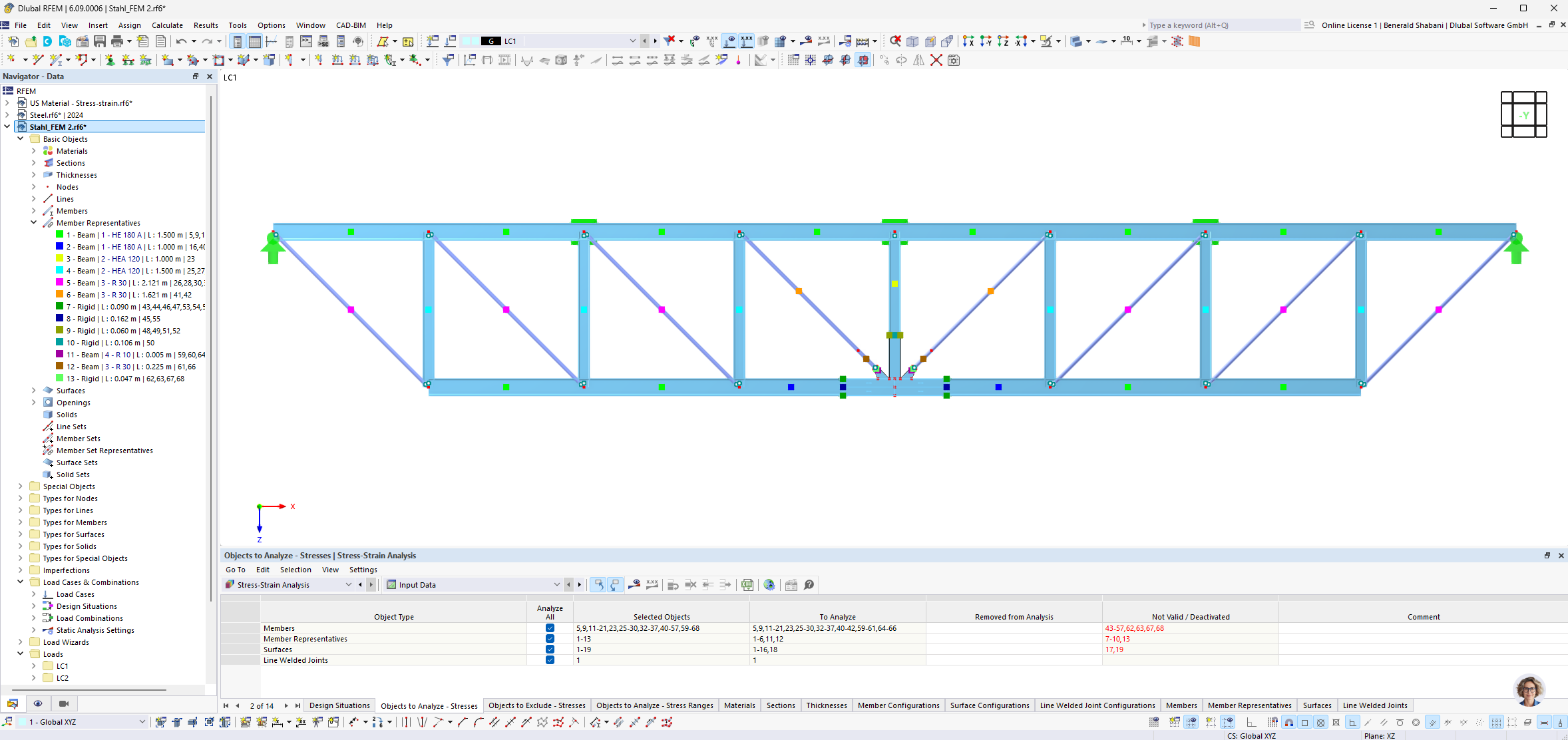

If you have activated the Member representatives option in the model base data , you can select the representatives for the analysis in the Objects to Analyze – Stresses table.

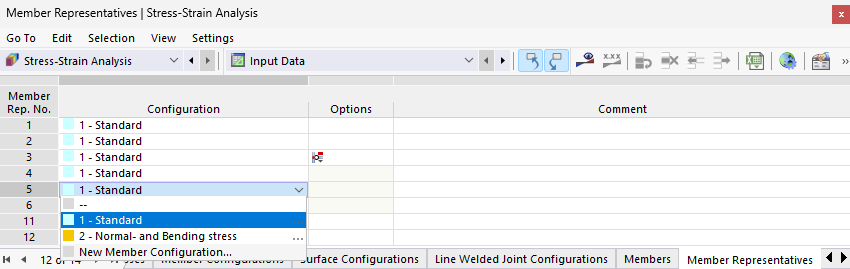

Representatives do not have their own configuration. The results are based on the results of the members and their associated configurations. Therefore, the representatives are mainly to be regarded as an alternative grouping method that facilitates the structuring of the entries as well as the results. In the Member Representatives table, you can check the representatives to be analyzed with the assigned member configurations.

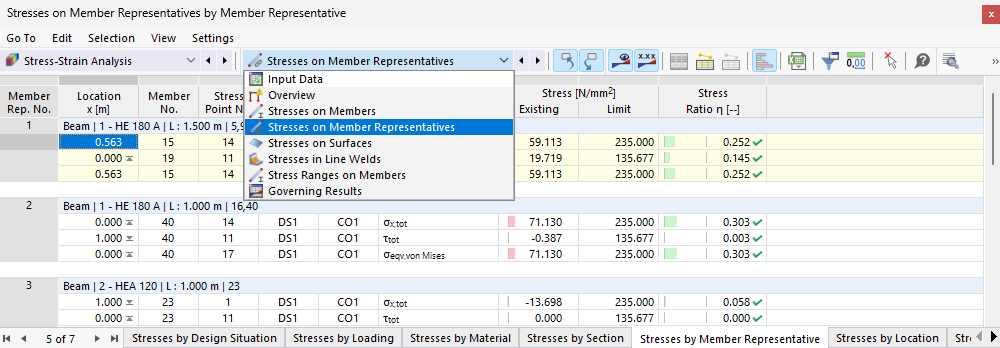

For representatives, the Stresses on Member Representatives category is added to the result tables.
