The result diagrams of members or result sections are also available for the results of the stress-strain analysis. You can use them to evaluate the stresses and stress ratios in diagrams in the same way as with the results of a static analysis.

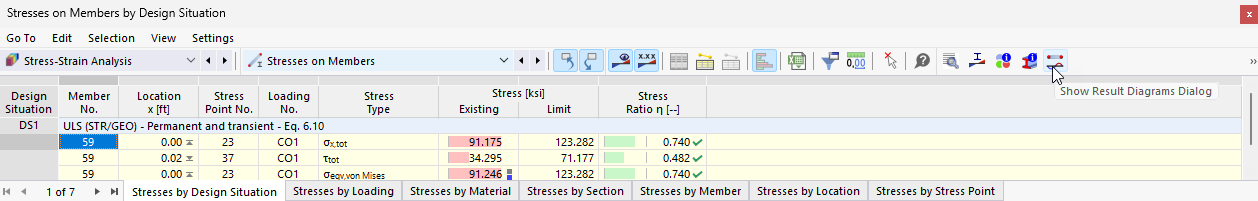

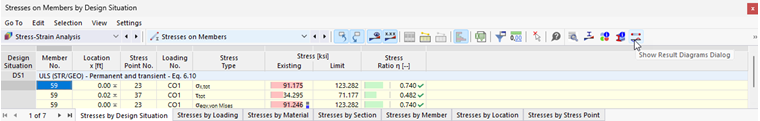

You can open the result diagrams as described in the chapter Result Diagrams of the RFEM manual. You can also use the
button that is available in the result tables of the "Stress-Strain Analysis" category for member objects.

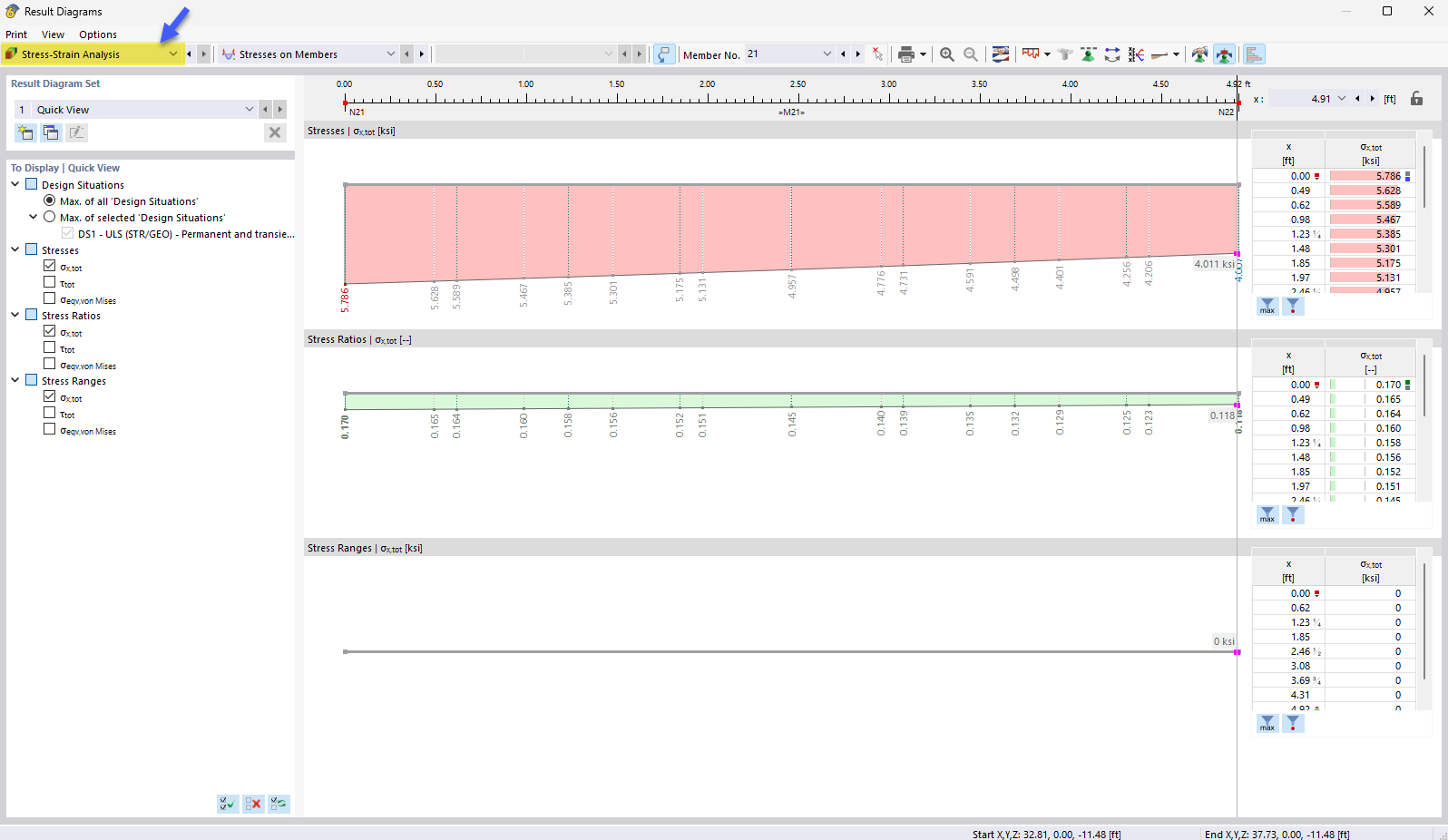

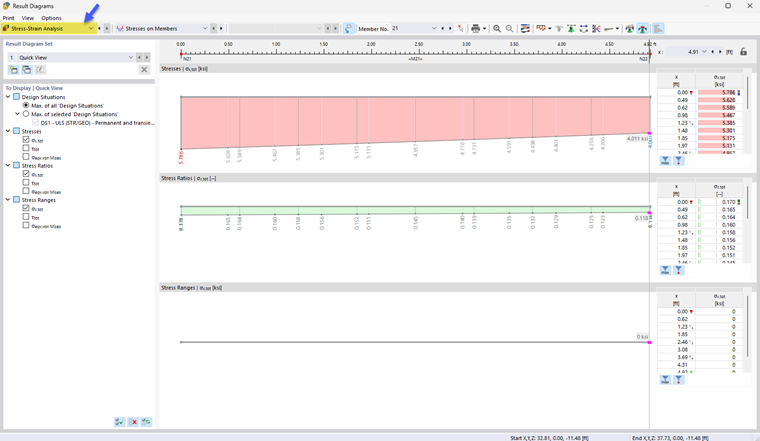

The "Result Diagrams" dialog box appears. The "Stress-Strain Analysis" result category is preset.
In the "To Display | Quick View" section of the dialog box, specify the stresses or stress ratios (design ratios), the distributions of which should be displayed in diagrams. All stress types that you have defined and assigned in the Member Configurations are available here. Each result type is displayed in a separate diagram.
If you want to check the results of another member, select its number in the "Member No." list or use the
button for graphical selection.
Further options are described in the chapter Result Diagrams of the RFEM manual.
