Parameterization of the geometry of a I-section Steel beam reinforced with steel plates and joined with weld beads, modeled as solids.
- Model created by the Dlubal Latam engineering team. The model is also available as a parameterized block on the Dlubal Latam website.
The file to download contains a parametrized model saved as a block (*.rf6 file type).

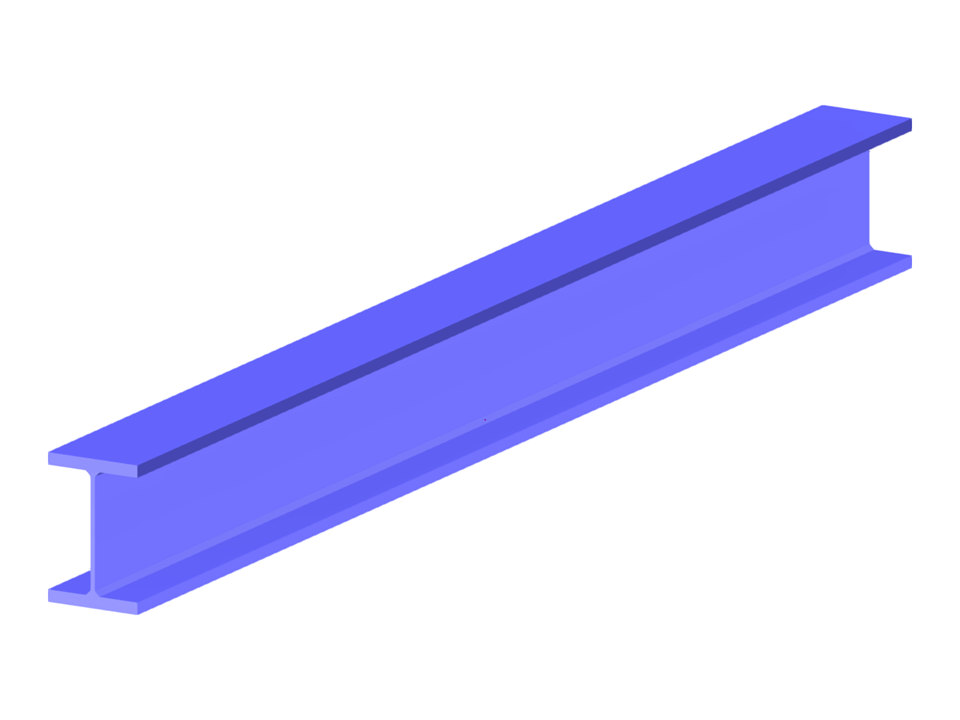

I-Section Steel Beam
| Number of Nodes | 49 |
| Number of Lines | 80 |
| Number of Members | 0 |
| Number of Surfaces | 44 |
| Number of Solids | 7 |
| Number of Load Cases | 1 |
| Number of Load Combinations | 2 |
| Number of Result Combinations | 0 |
| Total Weight | 2.374 tons |
| Dimensions (Metric) | 0.400 x 0.600 x 6.000 m |
| Dimensions (Imperial) | 1.31 x 1.97 x 19.69 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
