New CLT Funeral Parlour in Chimay, Belgium

Structures Analysed with Dlubal Software

  • Customer Project

Customer Project

The new Desmet-Dardenne funeral parlour opened in the town of Chimay, France, in 2021. In the search of an ecological construction, the choice focused on a structure made mainly of timber. Due to the free area of approximately 1,410 m², the structure of this new funeral parlour allowed for gathering various funeral services in one place: a reception hall, a workshop, a store, offices, and storage space.

Investor SRL Immo les Roches
BET Structure D-Bois
www.d-bois.fr
Carpenter GREEN CHASSIS

Model Parameters

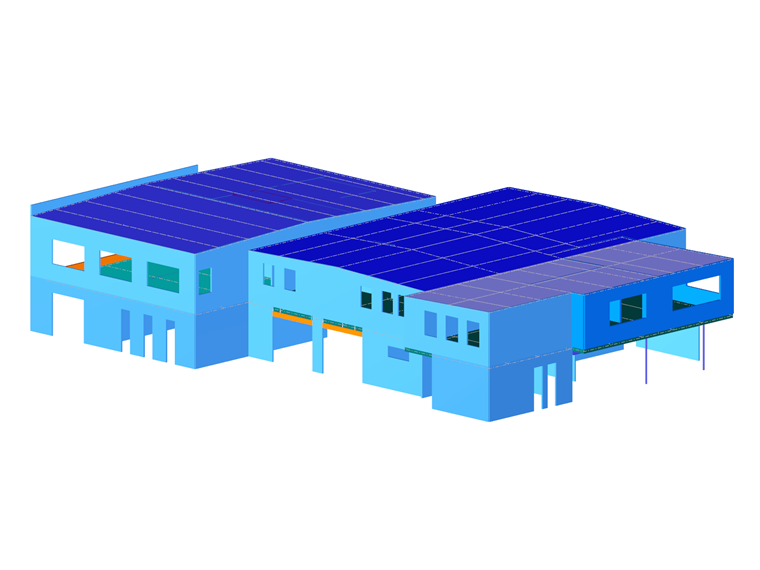

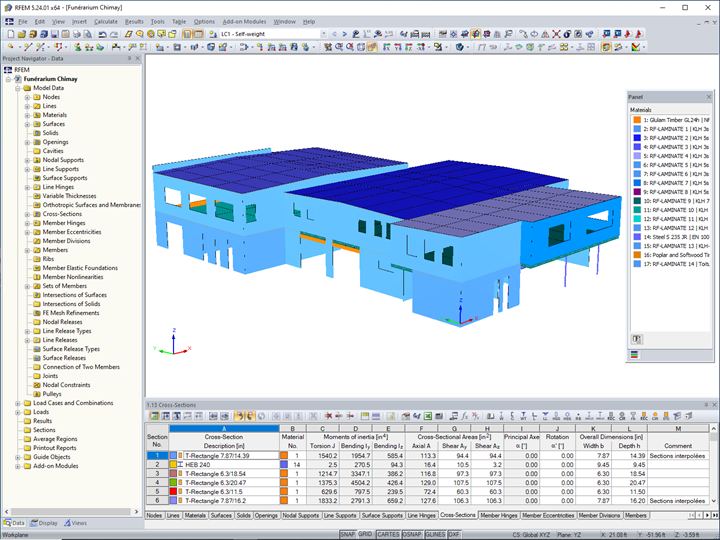

Model

The engineering office D-Bois carried out the complete design study for the timber frame lot. Among other things, they carried out complete 3D modelling, including the HVAC networks, load reduction, a stability analysis of the CLT panels (roof slabs, floors, walls, beams, walls, consoles); and produced manufacturing and site plans for the entire structure.

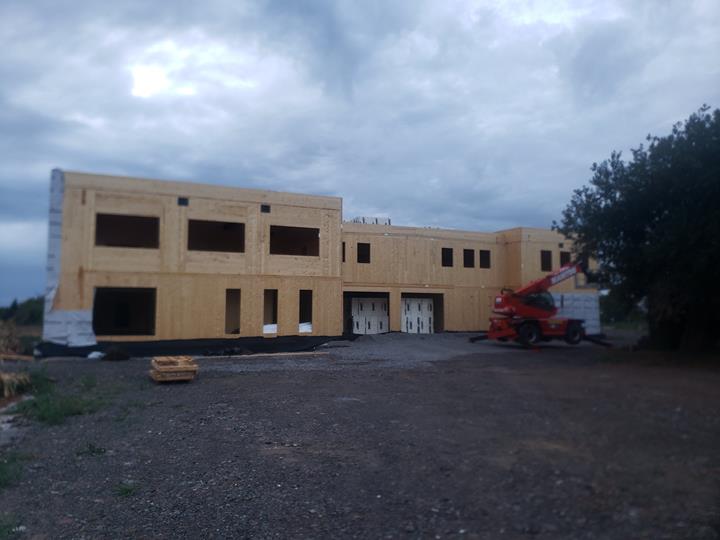

Structure

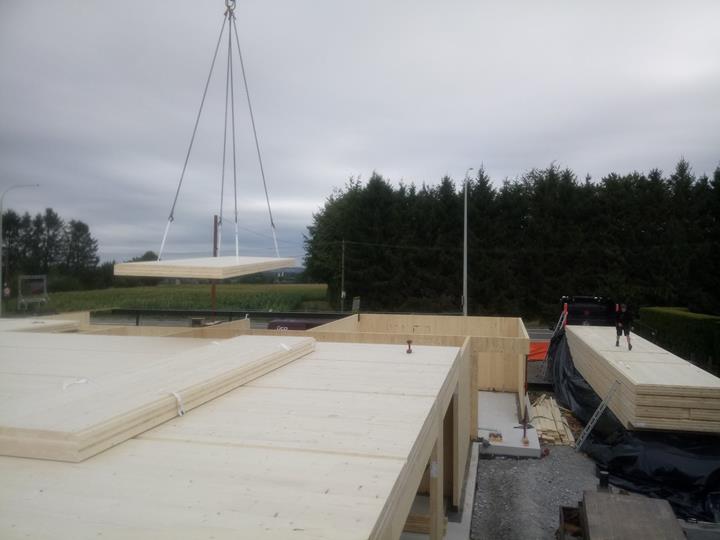

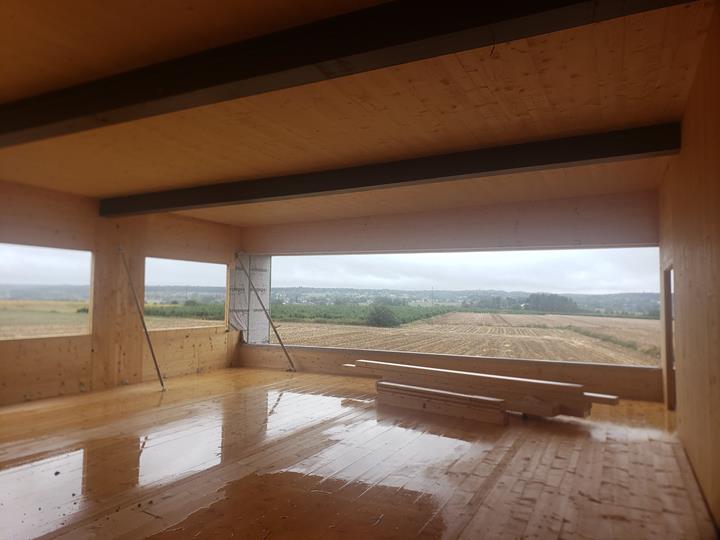

The walls, floors, roof, and elevator shaft are made of cross-laminated timber (CLT). Different compositions of CLT panels were used for the execution of the project. The panel thicknesses are suitable for this construction type and for good resistance to the existing loads. The floor and roof panels have a maximum span of 7.6 m and are supported at their location by intermediate beams and columns made of glued-laminated timber GL24h or steel.

Design in RFEM

To calculate the load reduction and perform the design, the structure was modelled and analysed in RFEM.

RF-LAMINATE was used for the definition of the compositions and the design of the CLT panels of the manufacturer KLH, which is available in the library of cross-laminated timber products accessible in the add-on module. The glued-laminated timber and steel elements were designed according to Eurocodes 5 and 3 with the Belgian National Annexes in the add-on modules RF‑TIMBER Pro and RF‑STEEL EC3.

Project Location

146 Chaussée de Couvin
6460 Chimay
Belgium

Keywords

Timber structures RFEM RF-TIMBER Pro RF-STEEL EC3 RF-LAMINATE CLT
