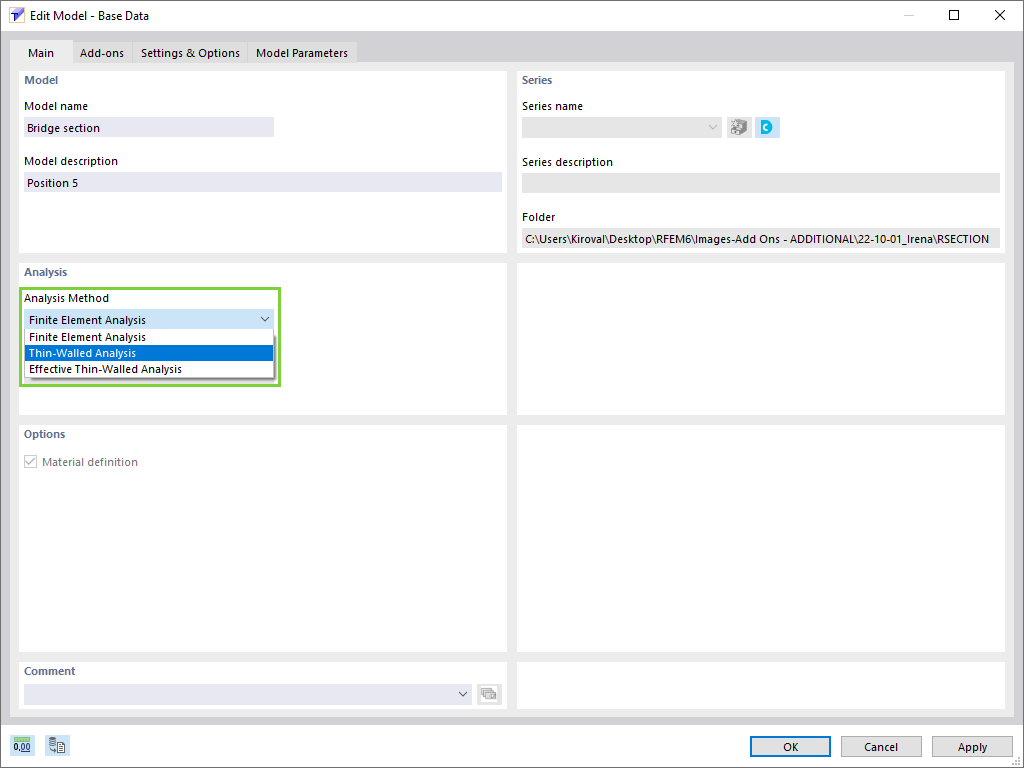

The Effective Sections extension is fully integrated in RSECTION. Therefore, all input options of RSECTION are available to you. You only need to specify the standard group in the Base Data, according to which the effective cross-section is to be determined. After importing the section into the main program RFEM or RSTAB, it is available for design in the Steel Design and Aluminum Design add-ons like a library section.
