Membrane Roof Structure on the Banks of the Elbe in Dresden, Germany
Customer Project
-
01

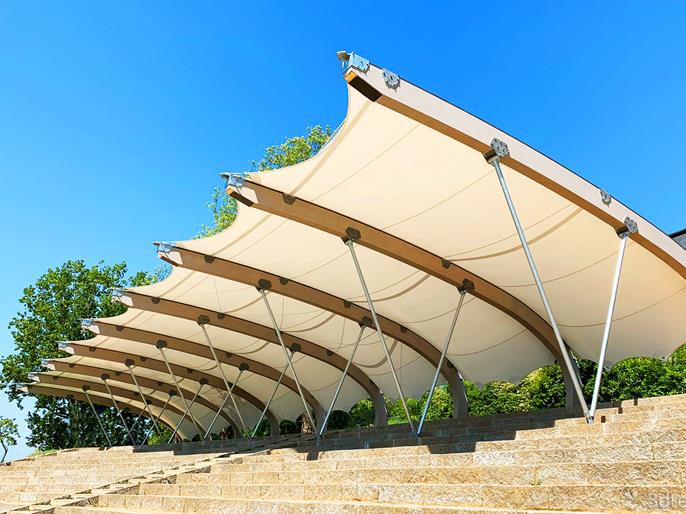

Membrane Roof Structure on Banks of Elbe in Dresden, Germany (© 3dtex GmbH)
-
01

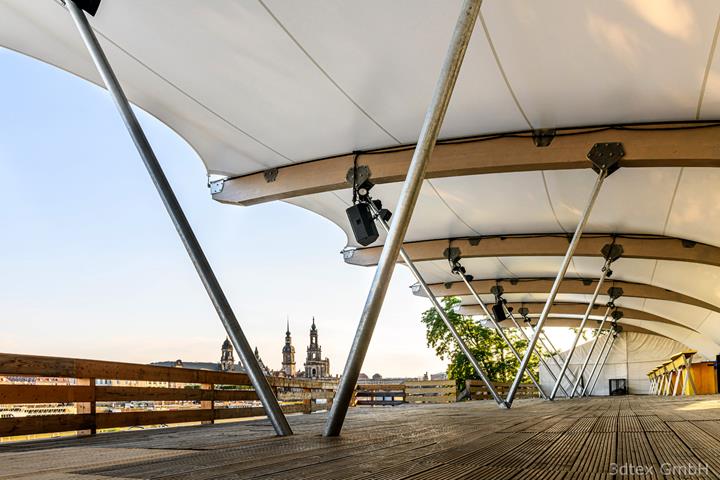

V-Shaped Steel Tube Columns Supporting Roof Curved Glulam Beams (© 3dtex GmbH)
-
01
© 3dtex GmbH
-
01
Membrane Roof Structure on Banks of Elbe in Dresden, Germany
-
01
Membrane Roofing of Grandstand Made of Glued Laminated Timber and Steel | www.zapf-co.de
Every summer, movie nights and other events take place on the banks of the Elbe in Dresden. The more than 55 film events and numerous concerts with national and international artists are attended by more than 200,000 guests.
| Investor |
PAN Veranstaltungslogistik und Kulturgastronomie GmbH www.dresden.filmnaechte.de |
| Architect |
KERBL architekten+ingenieure www.kerbl-architekten.de |
| Structural Design |
zapf & co. - Structural Engineering GmbH, Strausberg www.zapf-co.de |
| Manufacturing |
Karsten Daedler e. K. www.daedler.de |
| Planning & Assembly Management |
3dtex GmbH www.3dtex.de |
Model

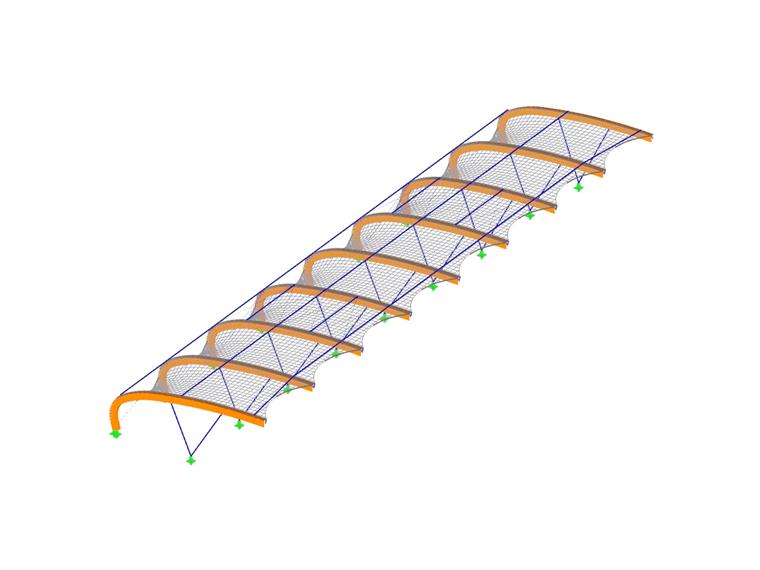

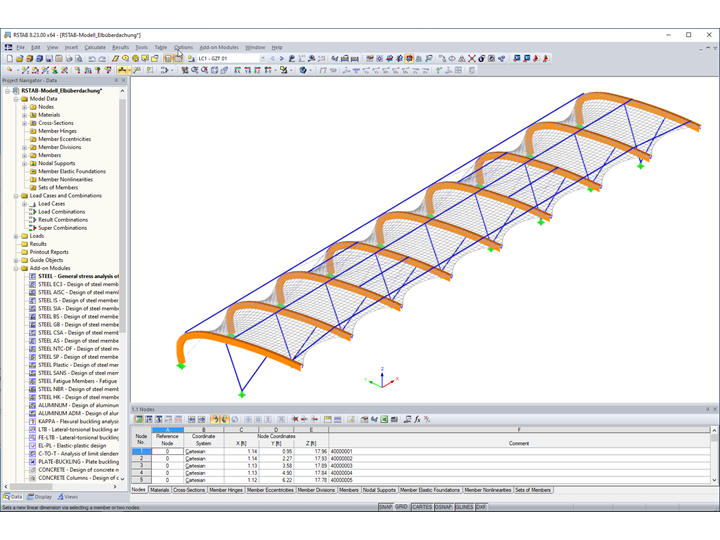

The membrane roof structure for this seating area was completed before the start of the 2019 summer season. 3dtex and architect Robert Kerbl, who designed the previous roof 20 years ago, developed the new structure. Similar to the previous design, the roof was considerably increased in size due to the increased number of visitors. The structural analysis was completed by zapf & co. from Strausberg utilizing RSTAB.
Structure
The new membrane roof structure has a total area of 12,917 ft². The nine main curved trusses, spaced at 20 ft on-center, are made of glued laminated timber. They are supported on V-shaped steel tube columns.The coupling and compression members for the longitudinal bracing also consist of steel pipes. The tension cables are round RD 16 sections. The structure is covered with a fabric membrane on the upper side of the glued laminated timber truss.
Project Location
KönigsuferKeywords
Membrane roof structure Grandstand Membrane roof Fabric membrane
