Velodrome Project, Paraguay

Structures Analysed with Dlubal Software

  • Customer Project

Customer Project

28 October 2022

001254

Paraguay

RFEM

RFEM 5

Steel Structures

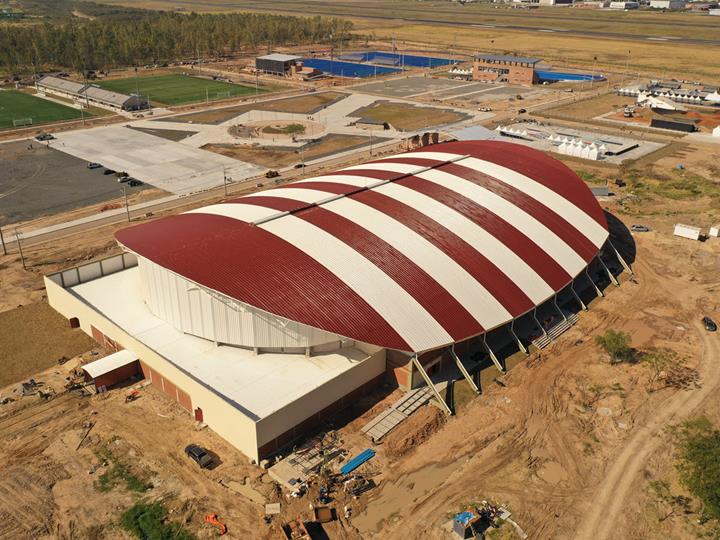

At Metalúrgica Vera SRL, a metalworking company in Paraguay, metal structures are manufactured and assembled for various projects. One such project is the Velodrome, a sports facility prepared for cycling competitions.

Customer Implenia Constructora
Structural Engineer Ing. Gustavo Resquin
Manufacturing and Assembly Metalúrgica Vera S.R.L.

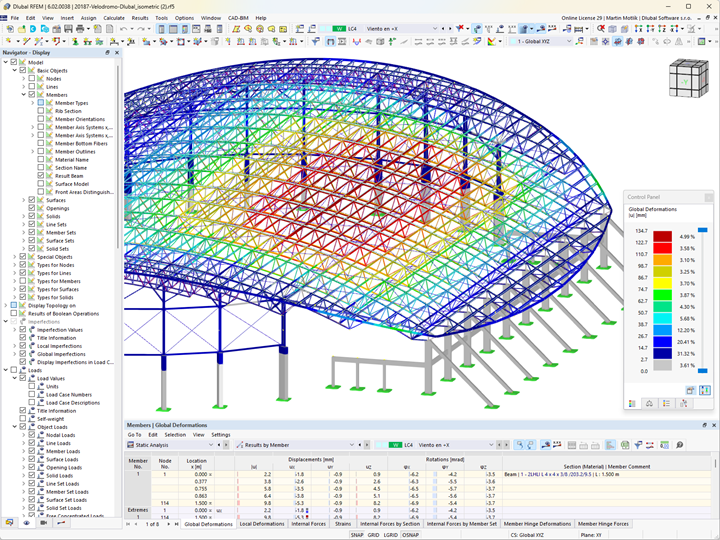

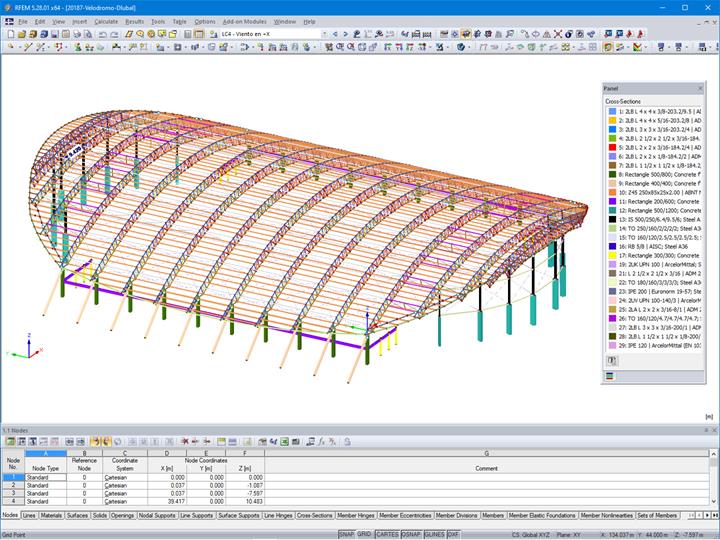

Model

The structure was calculated entirely by the Calculation Department of Metalúrgica Vera SRL, according to the corresponding regulations and the Paraguayan Wind Standard NP 196.

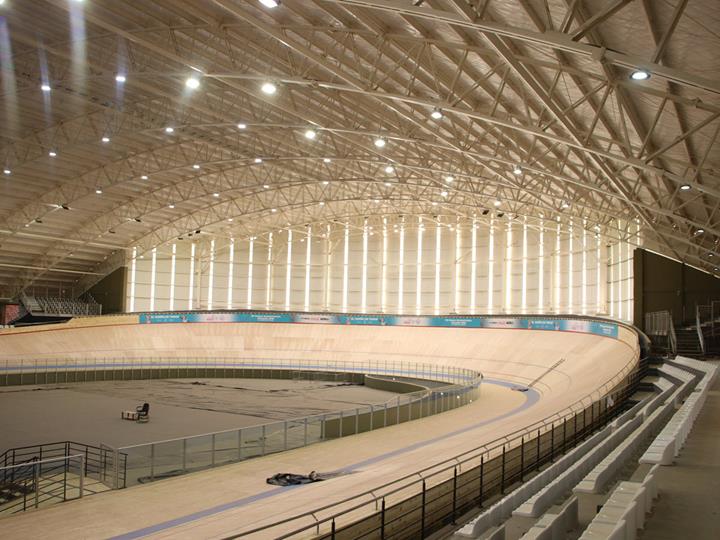

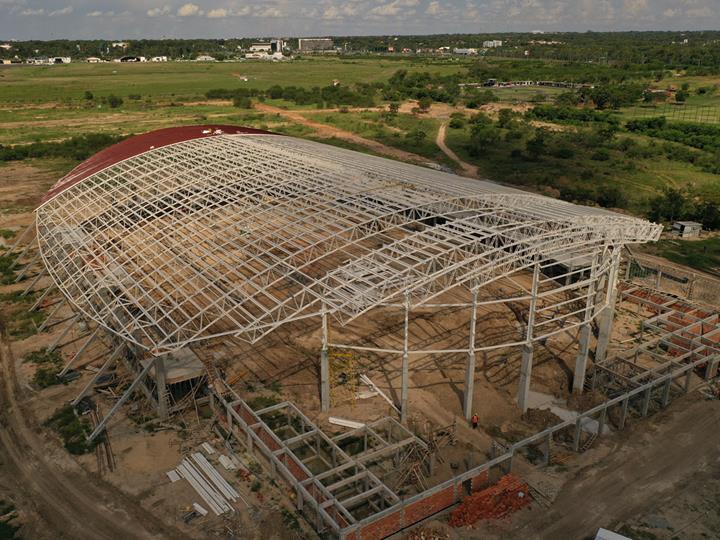

The most relevant aspect of this type of structure is the roof cover, with an area of approximately 11,000 yd2. It is made of frames with "bi-articulated arches" spanning about 256 feet between supports and with a rise of about 39 feet. The structure's weight is 235 tons.

Project Location

PFWC+48
Luque
Paraguay

Keywords

Steel Velodrome Metal structure Roof Frame
