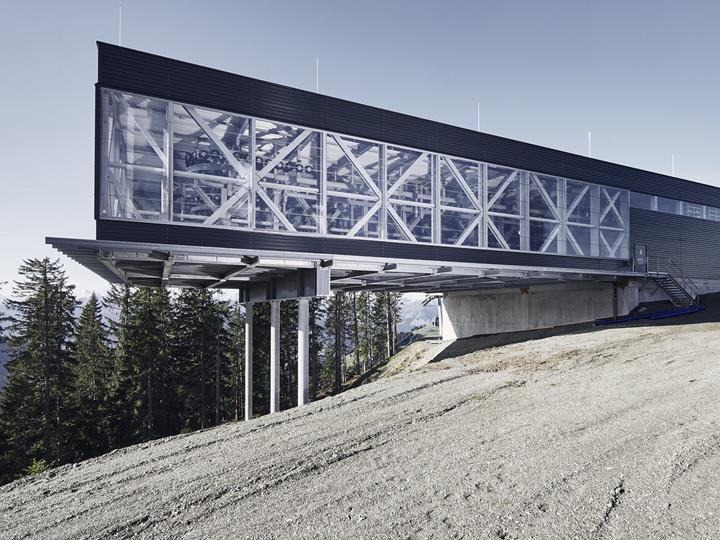

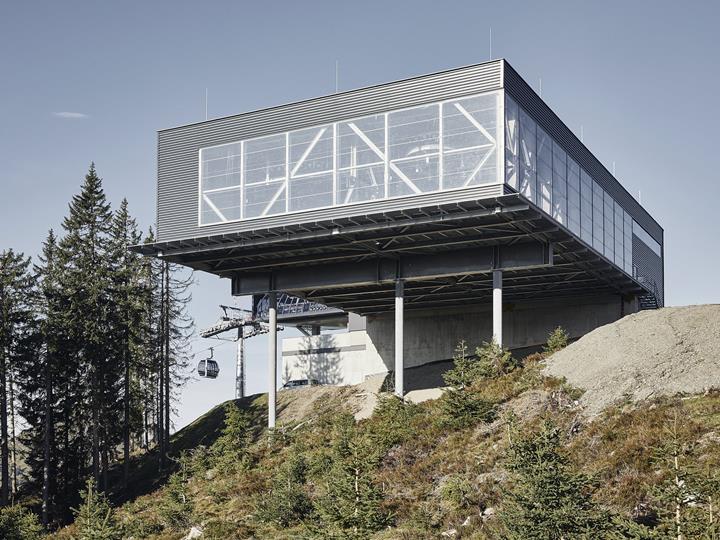

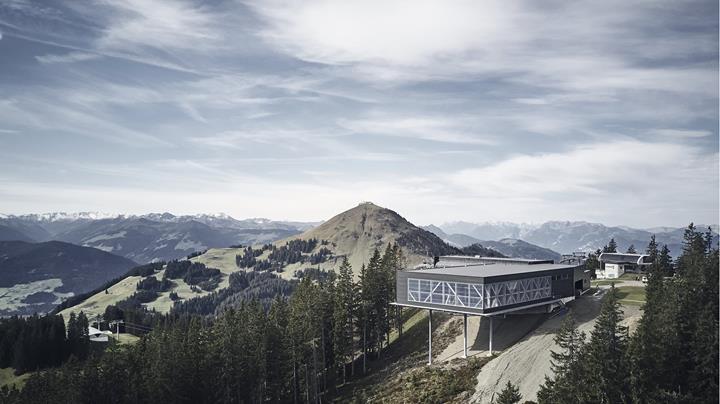

Mountain Station/Garaging Hall Zinsbergbahn, Brixen im Thale, Austria
Customer Project
The "Zinsbergbahn" project was certainly anything but standard and therefore, the Grabner Stahlbau team had to solve many unresolved challenges.
| Investor |
Bergbahnen Brixen im Thale AG Liftweg 1, 6364 Brixen im Thale Austria
|
| Architect |
A-B Seilbahn Planungsbüro Aschaber Baumeister Ing. GmbH www.ab-planung.at |
| Structural Design |
Grabner Stahl & Maschinenbau GmbH www.stahlbau-grabner.at |
Model Data

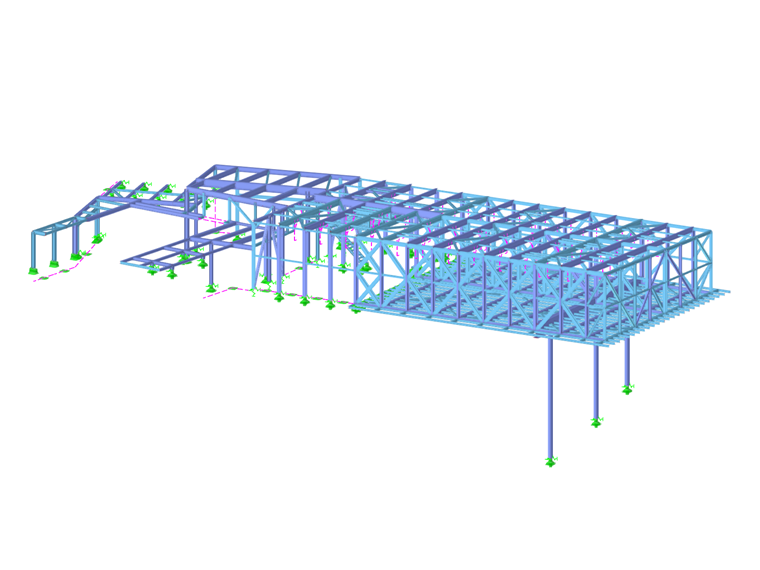

Model

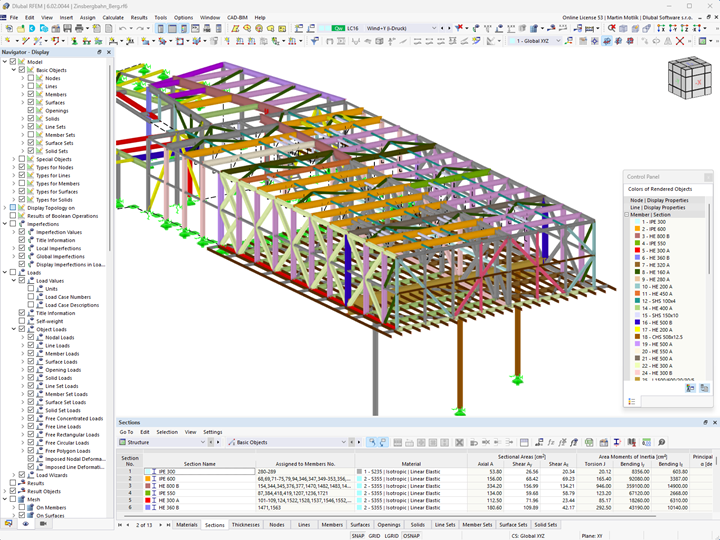

At Grabner, experts in structural analysis, engineering, production, logistics, and assembly got down to work in order to implement this project in the best possible way.
Construction and Assembly

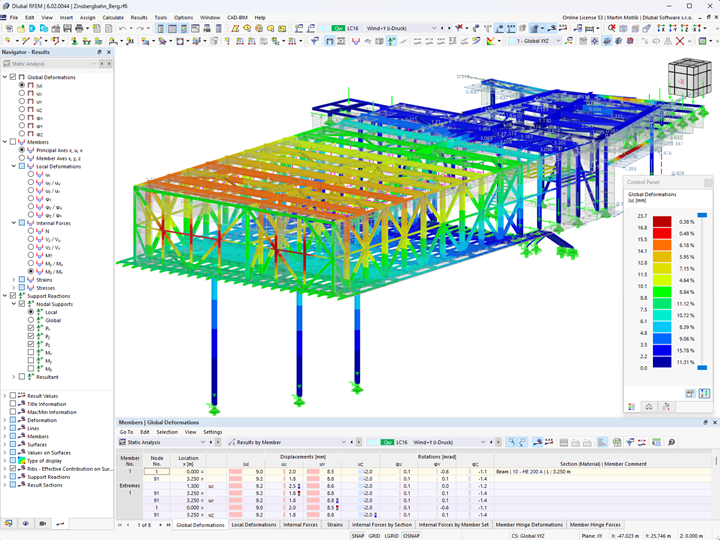

In all project phases, the architecturally appealing garaging hall, which is a cantilevered structure of about 98 ft and supported by 3 columns only, has been a real challenge. The long cantilever combined with high wind loads, in connection with the maximum deformation limits allowed by the equipment manufacturer, have been the greatest challenges to be solved.
From a technical point of view, using large welded trusses would have been easier, but they would not have been suitable for transport and assembly. Therefore, the Grabner Stahlbau team has decided to develop individual structural components being appropriate for assembly and all phases of the transport, but still meeting the structural demands with regard to deformation.
Concerning production, these requirements resulted in very demanding tolerance limits, in a special assembly concept including additional columns, and in some specifically created bases for platforms in the steep ground. Those were positioned by walking excavators and cranes so that the structural components could be installed safely and on time, 98 feet above the ground.
