This model shows the unstable dynamics of a frame with tension members that are eliminated from the calculation process as a result of compression forces. In the process of a member model according to second-order analysis, the transition from tensile to compressive forces in critical elements leads to a calculation abort. The integration of buckling members, implemented in L-sections and angles, clearly illustrates unstable conditions. A schematic image supports the display of the spatial structure and visualizes the nodal points and failure mechanisms. The model is suitable as a technical example for the analysis of instabilities and calculation aborts.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |

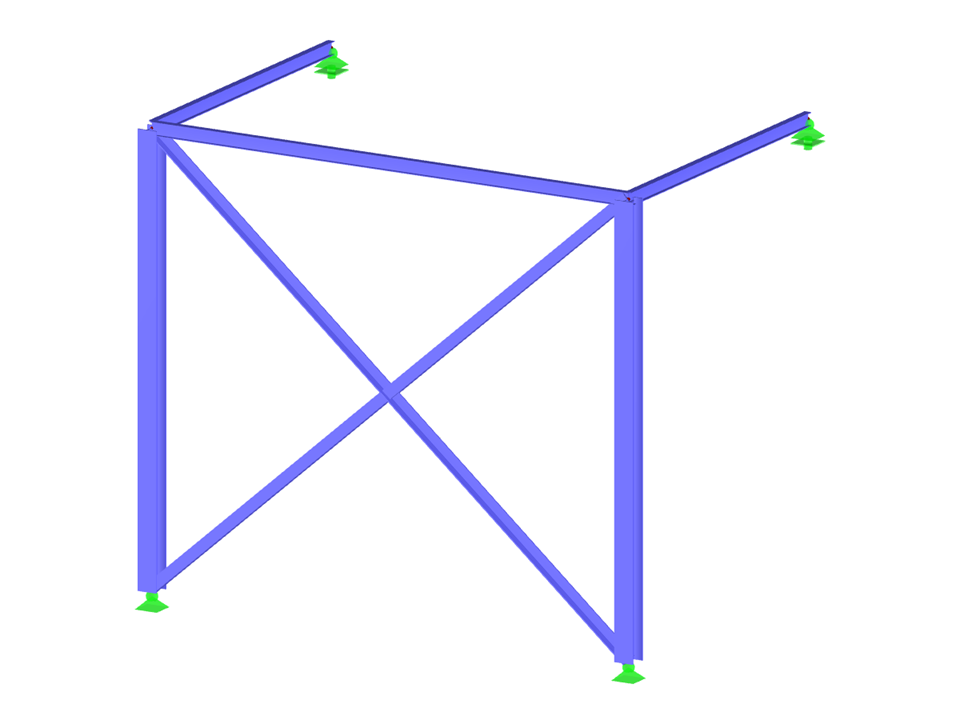

Frame with Buckling Members
Number of Nodes | 6 |
Number of Lines | 7 |
Number of Members | 7 |
Number of Load Cases | 1 |
Total Weight | 0,583 t |
Dimensions (Metric) | 4.815 x 3.215 x 4.215 m |
Dimensions (Imperial) | 15.8 x 10.55 x 13.83 feet |
Program Version | 5.24.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
