Sporting Venue in Donzère, France

Structures Analysed with Dlubal Software

  • Customer project

Customer Project

This article was translated by Google Translator

View original text

To meet the needs of its citizens, the city of Donzère has decided to build a sports hall in a large triangular island, at the foot of the historic village. The new structure, dedicated to local schools and clubs, created the opportunity for sporting event practices and competitions.

Investor City of Donzère, France
www.mairie-donzere.fr
Architectural design Tekhne Architects, France
www.tekhne-architectes.com
Arch'Eco Architects, France
www.arch-eco.com
Structural design, Arborescence, France
www.arborescence-concept.com
Timber Construction and Additional Calculations CBS-Lifteam, France
www.cbs-cbt.com

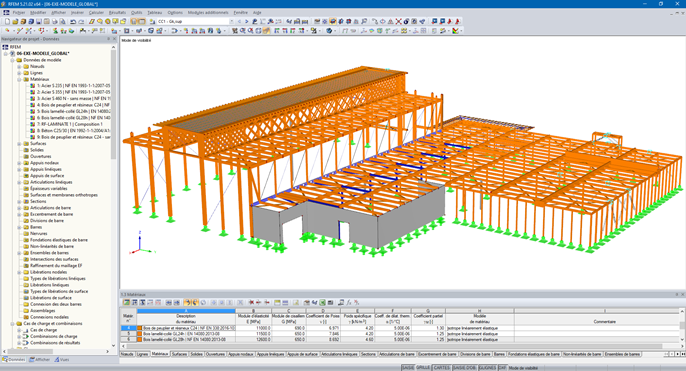

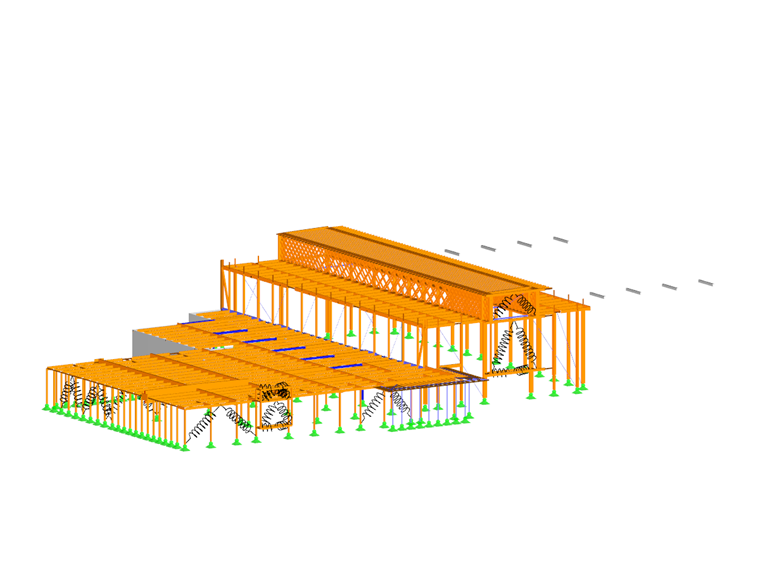

Model

Technical Details

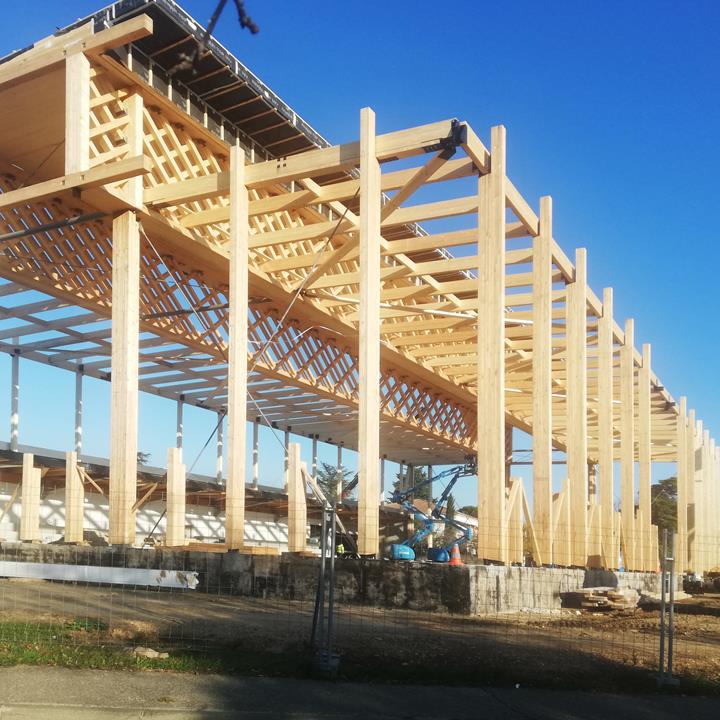

The building is divided into two parts. The first part houses the gymnasium while the second includes the fitness studio, dojo ring, and administrative offices.

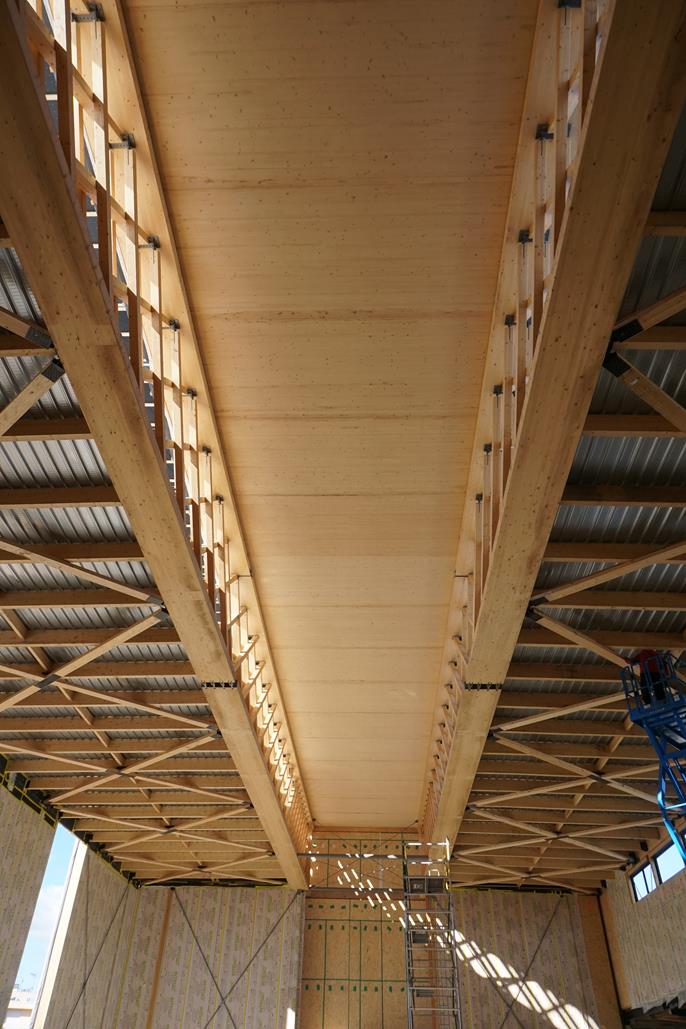

Two large truss beams with a wooden lattice, also known as mashrabiya style, are placed at the height of the vertical window panels allowing for natural light throughout the gymnasium. The beams include a clear span of 146 ft 12 in over the gymnasium auditorium. The upper and lower truss chords are BLC 656x2625 beams oriented flat while the truss web includes BLC 140x200 compression members and 7 x 459 x 459 tension and diagonal members. This beneficial truss configuration gradually distributes the internal forces with the appropriate stiffness meaning additional stiffness at the supports and reduced stiffness near the mid-span. The diamond-shape frame provides natural light dimming.

Project Design Engineers and Calculation Tools

The engineering company Arborescence in collaboration with the engineering company CBS-CBT utilized RFEM to analyze the structure and RF-DYNAM Pro to perform the seismic analysis.
