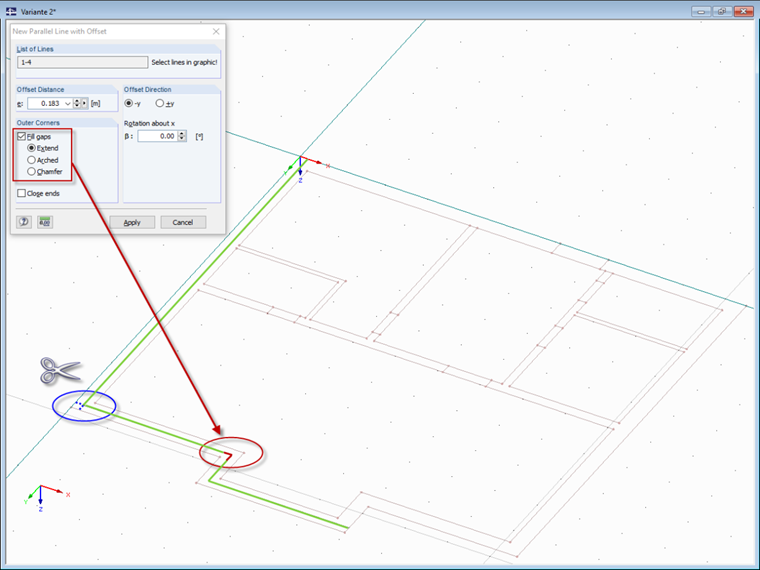

Nevertheless, a DXF layer can be very helpful. For example, you can also use the RFEM "Parallel Line with Offset" function under "Tools" in the menu for background layers (and thus, inactive lines) after the import. If two lines overlap in a corner point, the redundant part of the lines is removed automatically. Optionally, you can automatically extend the lines in the outer corners.
Mr. Fröhlich provides technical support to our customers and is responsible for development in the area of reinforced concrete structures.
