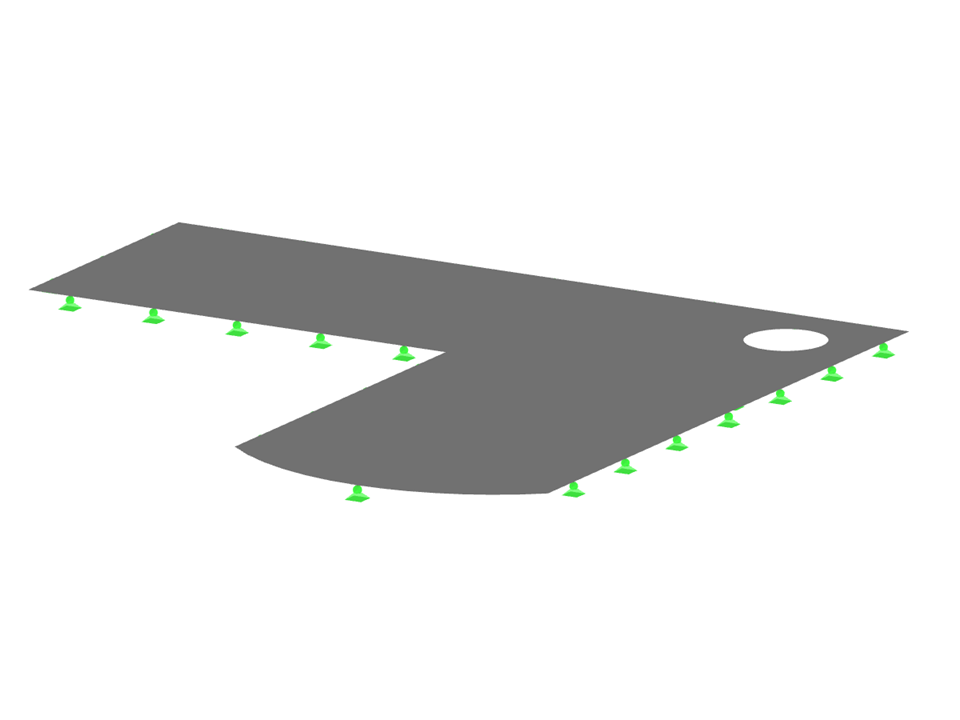

This model describes a concrete slab that contains a strategically placed opening. The opening in the concrete slab results in complex load and stress distributions, which are determined and analyzed in detail. The RFEM modeling software allows for precise analysis and simulation to optimize structural performance. The structure of this model is ideal for studies on load distribution and the reinforcement of concrete slabs with structural openings.
Model Used in
Concrete Slab with Opening
| Number of Nodes | 13 |
| Number of Lines | 10 |
| Number of Members | 1 |
| Number of Surfaces | 1 |
| Number of Load Cases | 4 |
| Number of Result Combinations | 1 |
| Total Weight | 59.057 t |
| Dimensions (Metric) | 14.500 x 15.625 x 0.367 m |
| Dimensions (Imperial) | 47.57 x 51.26 x 1.2 feet |
| Program Version | 5.24.02 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
