Representatives are templates for 1D objects with the identical properties with regard to the material, cross-section, member type, and length. These representatives can be understood as "member templates". They facilitate the evaluation and documentation of results. Since only a member or a member set with the governing internal forces of all similar types is analyzed, the representatives provide a good overview in both the program and the printout.
General information about using representatives can be found in the RFEM manual in the chapters Member Representatives and Member Set Representatives.

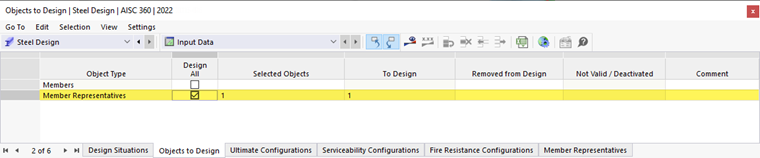

Select the representatives for the design in the Objects to Design input table. You can also activate the contained members or member sets for the design if you want the output for the individual objects.
