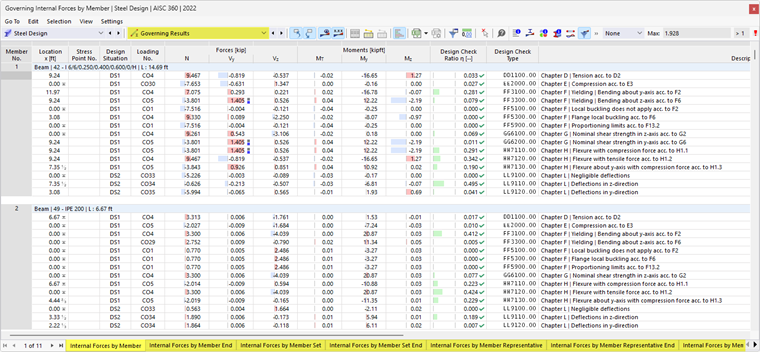

The result tables in the Governing Results category list the internal forces in the members and surfaces as well as the stresses that lead to the maximum design ratio of the designed objects.
The results are sorted in the tabs according to the following criteria:
- Objects (members, member ends, member sets, member set ends, representatives, surfaces, surface sets)
- Loads (design situations, load combinations)

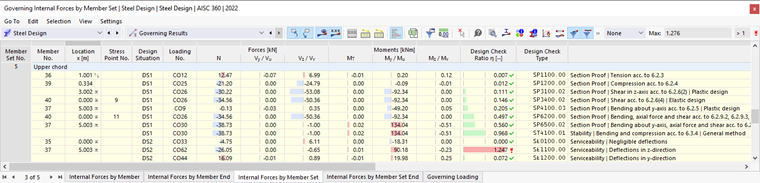

The tables list the design forces for each object that are governing for each type of design and thus lead to maximum design ratio. The respective location is also specified.

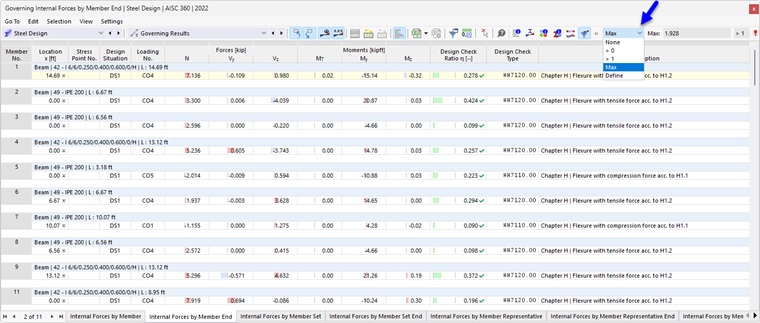

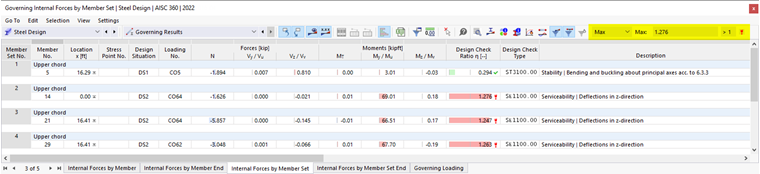

To display only the design forces of the governing design check for an object, set the Max option in the result filter list.
The internal forces of the governing design checks at the member or member set ends can be used to estimate which load combination is relevant for the joint design.
The chapter Design Ratios on Members describes how to filter the results by limit state and design ratio.
