Result Diagrams

The result diagrams for members or result sections are also available for the results of steel design. This allows you to evaluate the design checks in diagrams, as usual for the results of the structural analysis.

The result diagrams can be accessed as described in the chapter Result Diagrams of the RFEM manual. You can also use the button, which is available in the result tables of the “Steel Design” category for member objects.

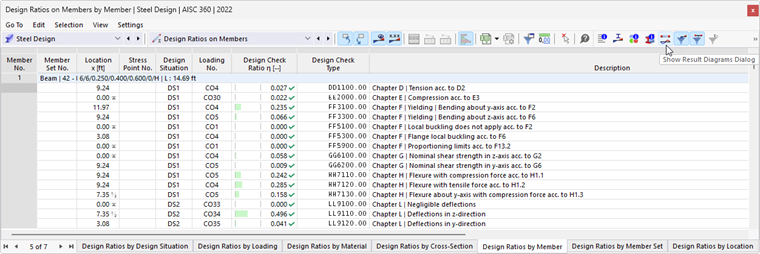

Button "Show Result Diagrams" in Table Toolbar

The “Result Diagrams” dialog box appears. The “Steel Design” result diagram category is preset.

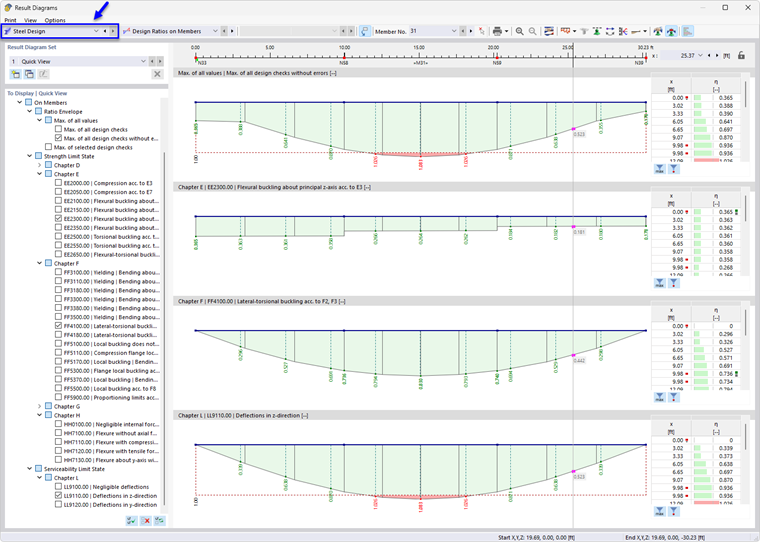

Dialog Box "Result Diagrams" with Diagrams for Design Checks and Reinforcements

In the "To Display" section of the dialog box, define the design checks or reinforcements, the distributions of which should be displayed in diagrams. The options for member histories correspond to those in the “Navigator – Results” (see the image Displaying Design Checks with Member Design Ratios ). Each result type is displayed in a separate diagram.

If you want to check the results of another object, select its number in the "Member No." list or use the button for graphical selection.

In the "Design Ratios on Members" list, you can also select another object type.

Selecting Object Type for Result Diagrams

Further options are described in the chapter Result Diagrams of the RFEM manual.
