Result Diagrams in Section

The Result Diagrams in Section display the results at the stress points of the cross-section. To access this display, click the button. It is available in the result tables of the “Steel Design” category for member objects, but not for surfaces.

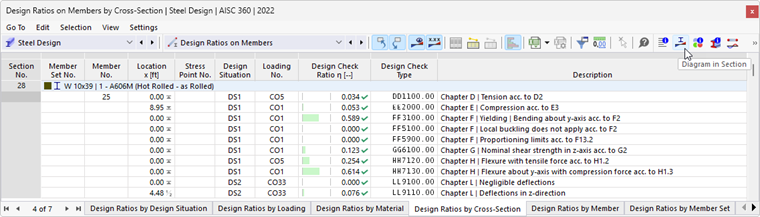

Button "Result Diagrams in Section" in Table Toolbar

The "Result Diagrams in Section" window appears. The graphic shows the stress state that exists for the result of the current table row.

Result Diagrams in Section

You can control the graphic as usual with the mouse, for example, to zoom. The features are described in the chapter Graphic Control of the RFEM manual.

The result display can also be customized using the buttons in the toolbar. They are assigned the following features:

Button	Function
	List button with selection options for result types
	Show or hide the values in the stress points
	Show only the extreme values of positive and negative results
	Enable scaling the result diagrams by a factor in [%]
	Show or hide the cross-section contour
	Show or hide the dimensions
	Show or hide the axis system
	Show or hide the shear center
	Show or hide the stress points
	Show and hide the c/t parts (single panels)
	Show or hide the numbering of the stress points
	Show and hide the FE mesh
	Open the “Information About Section” window
	Enable printing the current display
	Display the full view of the result diagrams

Result Types

Use the list button to select which results are to be displayed in the cross-section. Depending on the design, the following options are available:

• Diagram of design ratios
• Stresses
• Unit stresses
• Strains
• Unit strains

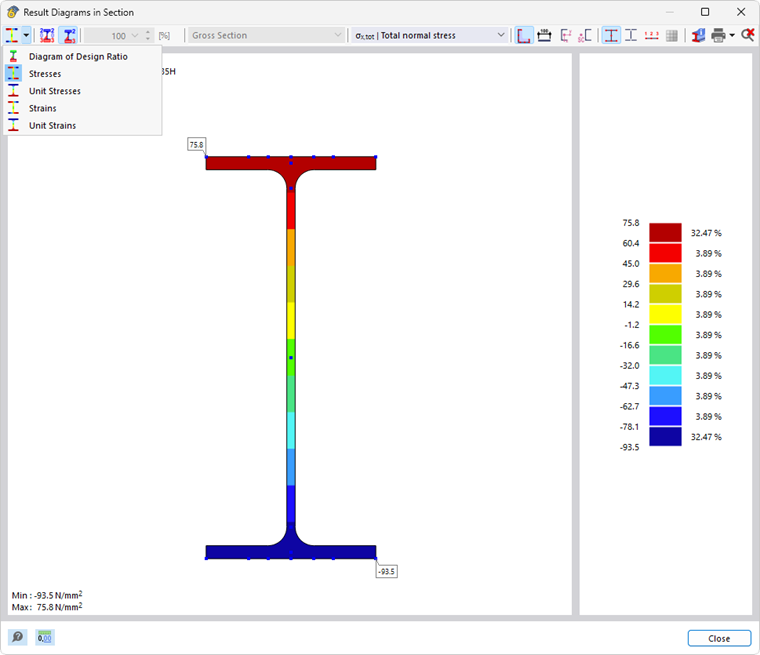

Displaying Stresses in Cross-Section

Depending on the existing stress, you can display different results in a cross-section. Use the options in the menu bar for this purpose.

Selecting Unit Stresses

The term TWA stands for a result from a thin-walled cross-section calculation, FEM for a cross-section calculation with finite elements. The method specified for the cross-section is used for design (see the chapter Cross-Sections).

The addition FSM for buckling modes refers to results based on the finite strip method (see the technical article Linear Critical Load Analysis Using Finite Strip Method).

Results of the finite element calculation are always displayed as color gradients directly on the cross-section. Results of the thin-walled analysis and the design ratio, on the other hand, are displayed as distributions at the stress points.

Elastic Stress Distribution

When displaying the stresses for the internal forces available in the corresponding design, note that the stresses are always calculated with an elastic distribution. In the case of a plastic cross-section design, the displayed stresses only represent additional information and are not used for the design. A plastic stress distribution in the cross-section cannot be calculated at the moment.

Stresses in Effective Section

If the stress determination for the selected design is carried out on an effective cross-section (for example, for a cross-section of Class 4 as per Eurocode 3), you can distinguish between the display of the stresses in an effective section and on a gross section in the selection list.

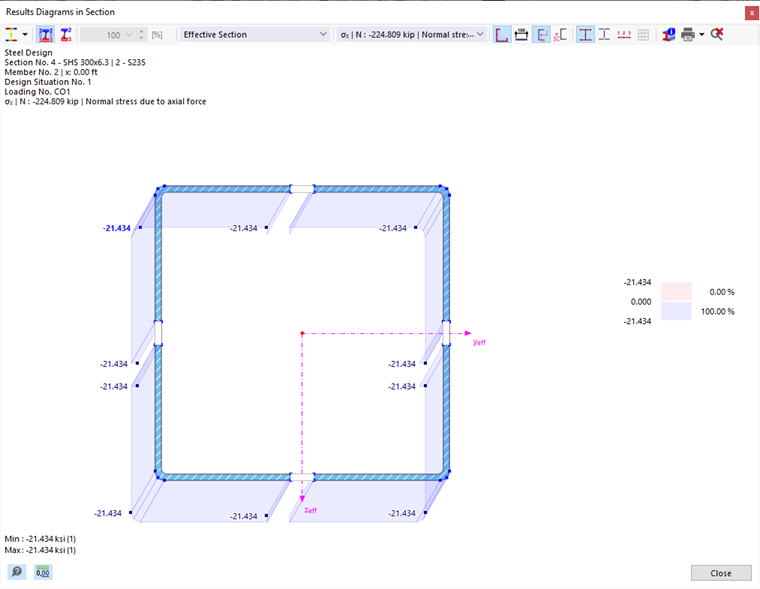

Steel Design - Stress Diagram in Effective Section

Buttons

Use the buttons described in the table to activate or deactivate the elements displayed in the graphic:

	Show Values at All Stress Points
	Show Max/Min Values Only
	Show Section Outlines
	Show Dimensioning
	Show Axis System
	Show Shear Center
	Show Section Stress Points
	Show Subpanels
	Show Numbering of Stress Points (only available if displaying the stress points)
	Show FE Mesh

A result from the finite element calculation is always displayed via a color gradient directly on the cross-section. The results from a thin-walled analysis and the ratio are displayed as a diagram in the stress points. To scale the display values, a list is shown in the top menu of the dialog box.

Graphic Printout

There is also the option to print graphics. Click the button to print a snapshot directly or to transfer it to the printout report. The objects and dimensions to be displayed can also be specified in the print preview.

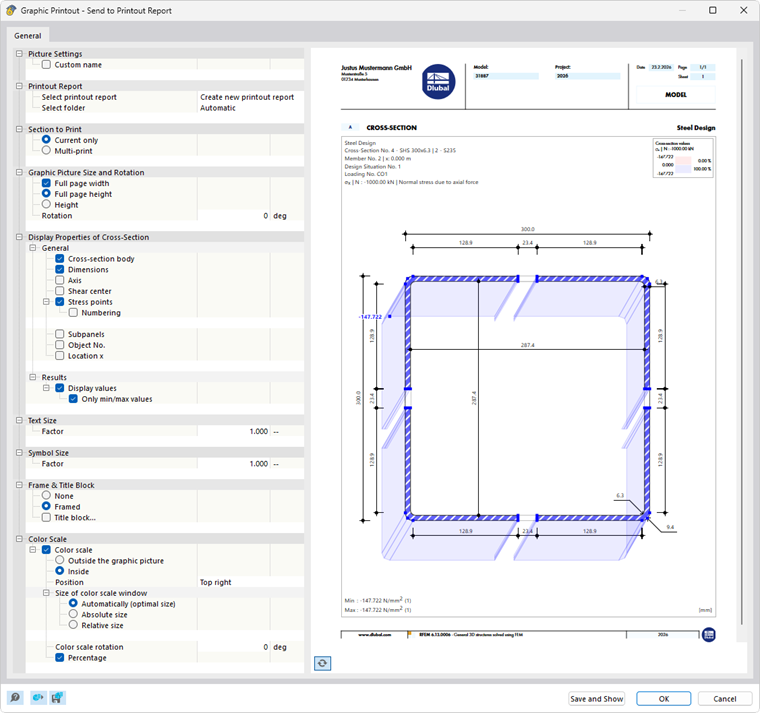

Printing Result Diagrams in Printout Report
